(Discontinued) T-LA Series

Miniature linear actuators with built-in controllers

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)

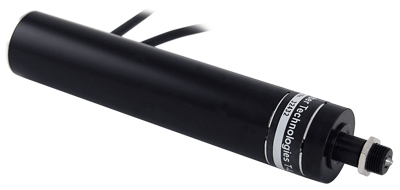

Photo of the T-LA60A-S

Image is representative of the T-LA Series and may not match the selected variant.

T-LA60A-S

60 mm Travel | RS-232 Control

Starting Price: NA

Standard Lead Time: Discontinued

Purchase Options

Add KT04U accessory kit  (+ $155)

Power Supply Not Included

  • 1 x PS04-15V26: Power Supply, 15 V DC 2.67 A out, 100-240 V AC in, North American Plug, International Adaptor Included on Request
  • 1 x T-DC06: Data Cable, 6 ft, T-Series and A-Series Products
  • 1 x T-DSUB9: Serial Adaptor
  • 1 x T-USBDC: USB to Serial Converter, Mini-Din 6 Female Plug
Contact Us
Add KT03U accessory kit  (+ $93)

Power Supply Not Included

  • 1 x PS03-15V12U: Power Supply, 15 V DC 1.2 A out, 100-240 V AC in, Universal Plug Adaptors
  • 1 x T-DC06: Data Cable, 6 ft, T-Series and A-Series Products
  • 1 x T-DSUB9: Serial Adaptor
  • 1 x T-USBDC: USB to Serial Converter, Mini-Din 6 Female Plug
Contact Us
Add KT01U accessory kit  (+ $93)

Power Supply Not Included

  • 1 x PS01-15V04: Power Supply, 15 V DC 0.4 A out, 110 V AC in, North American Plug
  • 1 x T-DC06: Data Cable, 6 ft, T-Series and A-Series Products
  • 1 x T-DSUB9: Serial Adaptor
  • 1 x T-USBDC: USB to Serial Converter, Mini-Din 6 Female Plug
Contact Us
Stand-alone

Contact Us

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.

Download Datasheet

T-LA60A-S Specifications

Microstep Size (Default Resolution) 0.09921875 µm
Built-in ControllerYes Icon
Travel Range 60 mm (2.362")
Accuracy (unidirectional) 36 µm (0.001417")
Repeatability < 4 µm (< 0.000157")
Backlash < 22 µm (< 0.000866")
Maximum Speed 4 mm/s (0.157"/s)
Minimum Speed 0.0009300 mm/s (0.000037"/s)
Speed Resolution 0.0009300 mm/s (0.000037"/s)
Encoder TypeNo Icon
Peak Thrust 25 N (5.6 lb)
Maximum Continuous Thrust 15 N (3.4 lb)
Communication Interface RS-232
Communication Protocol Zaber Binary
Data Cable Connection Minidin 6
Power Supply 12-16 VDC
Power Plug 2.1 mm centre positive
Maximum Current Draw 300 mA
Motor Temperature Rise 75 °C
Linear Motion Per Motor Rev 0.3048 mm (0.012")
Motor Steps Per Rev 48
Motor Type Stepper (2 phase)
Inductance 55 mH/phase
Default Resolution 1/64 of a step
Mechanical Drive System Precision leadscrew
Limit or Home Sensing Magnetic home sensor
Manual ControlNo Icon
Axes of Motion 1
LED IndicatorsNo Icon
Mounting Interface 3/8-32 nut or 3/8" shank
Operating Temperature Range 0 to 50 °C
CE CompliantYes Icon
Vacuum CompatibleNo Icon
Weight 0.14 kg (0.309 lb)

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

Bearing Lifetime

Note that the failure mode of T-LA devices is grease contamination by wear particles which effectively clog the lead-nut, although the lead screw and lead-nut remain in healthy condition. Extending the lead screw, cleaning it, and regreasing it with a silicon based grease effectively solves the problem; however, this may not be feasible in all applications. For more detailed information, please consult the Installation Precautions.
  1. The suffix "S" designates a short unit. Manual control and LED indicators have been sacrificed on these units in favour of reduced length. All other specifications are identical to the standard unit.
  2. T-LA actuators don't require hold current to maintain their position.
  3. The T-LA is more delicate and has a limited lifetime compared to the T-NA08. See the image below for a lifetime vs thrust comparison.
