(Discontinued) T-LA Series

Miniature linear actuators with built-in controllers

Series Specifications

Download Datasheet
Built-in Controller Yes
Travel Range 13 – 60 mm
Manual Control Varies
Axes of Motion 1
LED Indicators Varies
Weight 0.11 – 0.15 kg
Accuracy (unidirectional) 24 – 36 µm
Repeatability < 4 µm (< 0.000157")
Backlash < 22 µm (< 0.000866")
Microstep Size (Default Resolution) 0.09921875 µm
Default Resolution 1/64 of a step
Peak Thrust 25 N (5.6 lb)
Maximum Continuous Thrust 15 N (3.4 lb)
Maximum Speed 4 mm/s (0.157"/s)
Minimum Speed 0.0009300 mm/s (0.000037"/s)
Speed Resolution 0.0009300 mm/s (0.000037"/s)
Encoder Type No
Limit or Home Sensing Magnetic home sensor
Motor Temperature Rise 75 °C
Linear Motion Per Motor Rev 0.3048 mm (0.012")
Motor Steps Per Rev 48
Motor Type Stepper (2 phase)
Motor Winding Inductance 55 mH/phase
Communication Interface RS-232
Communication Protocol Zaber Binary
Data Cable Connection Minidin 6
Power Supply 12-16 VDC
Power Plug 2.1 mm centre positive
Maximum Current Draw 300 mA
Mechanical Drive System Precision leadscrew
Mounting Interface 3/8-32 nut or 3/8" shank
Operating Temperature Range 0 to 50 °C
CE Compliant Yes
Vacuum Compatible No

Part Numbering & Options

Part Numbering Scheme of the T-LA

Part Specifications Comparison

Part NumberTravel RangeManual ControlLED IndicatorsWeightAccuracy (unidirectional)
T-LA13A13 mm (0.512")YesYes0.14 kg (0.309 lb)24 µm (0.000945")
T-LA13A-S13 mm (0.512")NoNo0.11 kg (0.243 lb)24 µm (0.000945")
T-LA28A28 mm (1.102")YesYes0.14 kg (0.309 lb)24 µm (0.000945")
T-LA28A-S28 mm (1.102")NoNo0.11 kg (0.243 lb)24 µm (0.000945")
T-LA60A60 mm (2.362")YesYes0.15 kg (0.331 lb)36 µm (0.001417")
T-LA60A-S60 mm (2.362")NoNo0.14 kg (0.309 lb)36 µm (0.001417")

Specification Charts & Notes

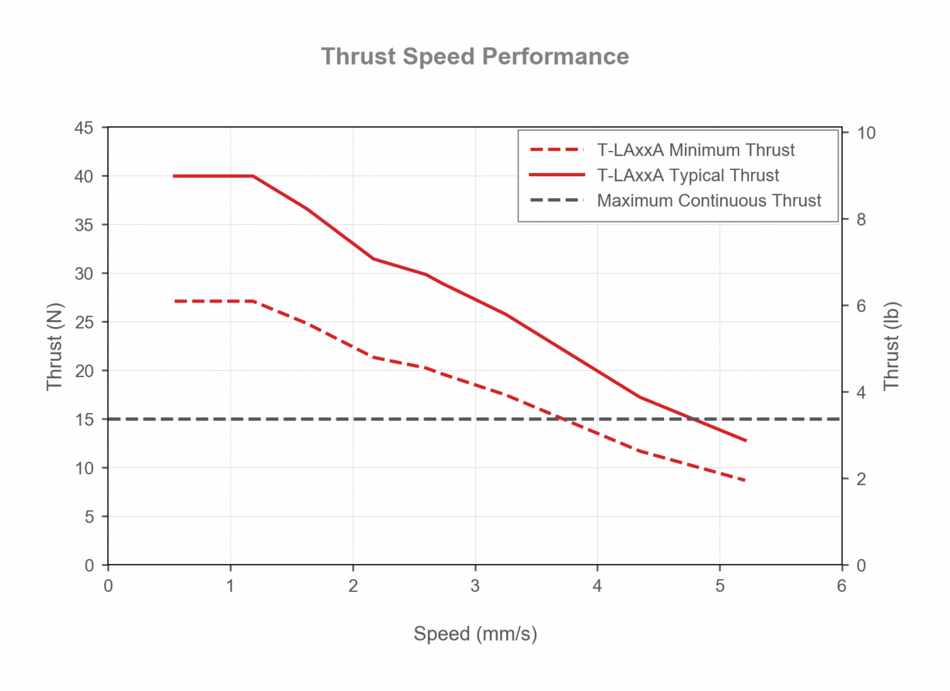

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

Other

<ol class="ml-4"> <li>The suffix "S" designates a short unit. Manual control and LED indicators have been sacrificed on these units in favour of reduced length. All other specifications are identical to the standard unit.</li> <li>T-LA actuators don't require hold current to maintain their position.</li> <li>The T-LA is more delicate and has a limited lifetime compared to the T-NA08. See the image below for a lifetime vs thrust comparison.</li> </ol>
SPECS-T-LA-PERFORMANCE

Bearing Lifetime

SPECS-T-LA-T-NA-LIFETIME
Note that the failure mode of T-LA devices is grease contamination by wear particles which effectively clog the lead-nut, although the lead screw and lead-nut remain in healthy condition. Extending the lead screw, cleaning it, and regreasing it with a silicon based grease effectively solves the problem; however, this may not be feasible in all applications. For more detailed information, please consult the <a href="/documents/Zaber-T-LA-Series-Installation-Precaution.pdf" target="_blank">Installation Precautions</a>.
