(Discontinued) T-LA Series

Miniature linear actuators with built-in controllers

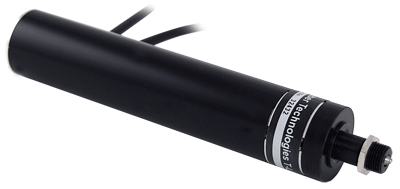

Photo of the T-LA28A-S

Image is representative of the T-LA Series and may not match the selected variant.

T-LA28A-S

28 mm Travel | RS-232 Control | Kit

Starting Price: $1,219 * | Discontinued

T-LA28A-S Specifications

Download Datasheet
Built-in Controller Yes
Travel Range 28 mm (1.102")
Manual Control No
Axes of Motion 1
LED Indicators No
Weight 0.11 kg (0.243 lb)
Accuracy (unidirectional) 24 µm (0.000945")
Repeatability < 4 µm (< 0.000157")
Backlash < 22 µm (< 0.000866")
Microstep Size (Default Resolution) 0.09921875 µm
Default Resolution 1/64 of a step
Peak Thrust 25 N (5.6 lb)
Maximum Continuous Thrust 15 N (3.4 lb)
Maximum Speed 4 mm/s (0.157"/s)
Minimum Speed 0.0009300 mm/s (0.000037"/s)
Speed Resolution 0.0009300 mm/s (0.000037"/s)
Encoder Type No
Limit or Home Sensing Magnetic home sensor
Motor Temperature Rise 75 °C
Linear Motion Per Motor Rev 0.3048 mm (0.012")
Motor Steps Per Rev 48
Motor Type Stepper (2 phase)
Motor Winding Inductance 55 mH/phase
Communication Interface RS-232
Communication Protocol Zaber Binary
Data Cable Connection Minidin 6
Power Supply 12-16 VDC
Power Plug 2.1 mm centre positive
Maximum Current Draw 300 mA
Mechanical Drive System Precision leadscrew
Mounting Interface 3/8-32 nut or 3/8" shank
Operating Temperature Range 0 to 50 °C
CE Compliant Yes
Vacuum Compatible No

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

Other

<ol class="ml-4"> <li>The suffix "S" designates a short unit. Manual control and LED indicators have been sacrificed on these units in favour of reduced length. All other specifications are identical to the standard unit.</li> <li>T-LA actuators don't require hold current to maintain their position.</li> <li>The T-LA is more delicate and has a limited lifetime compared to the T-NA08. See the image below for a lifetime vs thrust comparison.</li> </ol>
SPECS-T-LA-PERFORMANCE

Bearing Lifetime

SPECS-T-LA-T-NA-LIFETIME
Note that the failure mode of T-LA devices is grease contamination by wear particles which effectively clog the lead-nut, although the lead screw and lead-nut remain in healthy condition. Extending the lead screw, cleaning it, and regreasing it with a silicon based grease effectively solves the problem; however, this may not be feasible in all applications. For more detailed information, please consult the <a href="/documents/Zaber-T-LA-Series-Installation-Precaution.pdf" target="_blank">Installation Precautions</a>.
