(Discontinued) NA Series

Electric linear actuators (No AutoDetect)

This page is for an outdated version, for reference information on specifications, drawings, and models. See the NA for the current version.

16, 30, and 60 mm travel
Available in several sizes for a variety of thrusts and speeds
Designed for use with our X-MCB1 controller or any 2-phase stepper motor controller
Threaded tip for multiple mounting options
Custom versions available

Have a Question?

Response time promise: 1 business day

Have a Question?

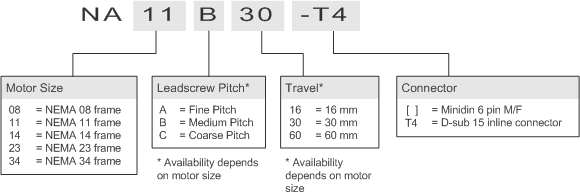

Part Numbering & Options

Part Number	Description	Lead Time	Starting Prices (USD) *
NA08A16	NEMA Size 08 \| 16 mm Travel \| 19 N Maximum Continuous Thrust	Discontinued	$534
NA08A16-T4	NEMA Size 08 \| 16 mm Travel \| 19 N Maximum Continuous Thrust	Discontinued	$547
NA08A30	NEMA Size 08 \| 30 mm Travel \| 19 N Maximum Continuous Thrust	Discontinued	$558
NA08A30-T4	NEMA Size 08 \| 30 mm Travel \| 19 N Maximum Continuous Thrust	Discontinued	$571
NA08B16	NEMA Size 08 \| 16 mm Travel \| 19 N Maximum Continuous Thrust	Discontinued	$534
NA08B16-T4	NEMA Size 08 \| 16 mm Travel \| 19 N Maximum Continuous Thrust	Discontinued	$547
NA08B30	NEMA Size 08 \| 30 mm Travel \| 19 N Maximum Continuous Thrust	Discontinued	$558
NA08B30-T4	NEMA Size 08 \| 30 mm Travel \| 19 N Maximum Continuous Thrust	Discontinued	$571
NA11B16	NEMA Size 11 \| 16 mm Travel \| 58 N Maximum Continuous Thrust	Discontinued	$400
NA11B16-T4	NEMA Size 11 \| 16 mm Travel \| 58 N Maximum Continuous Thrust	Discontinued	$413
NA11B30	NEMA Size 11 \| 30 mm Travel \| 58 N Maximum Continuous Thrust	Discontinued	$435
NA11B30-T4	NEMA Size 11 \| 30 mm Travel \| 58 N Maximum Continuous Thrust	Discontinued	$448
NA11B60	NEMA Size 11 \| 60 mm Travel \| 58 N Maximum Continuous Thrust	Discontinued	$470
NA11B60-T4	NEMA Size 11 \| 60 mm Travel \| 58 N Maximum Continuous Thrust	Discontinued	$483
NA14B16	NEMA Size 14 \| 16 mm Travel \| 180 N Maximum Continuous Thrust	Discontinued	$470
NA14B16-T4	NEMA Size 14 \| 16 mm Travel \| 180 N Maximum Continuous Thrust	Discontinued	$483
NA14B30	NEMA Size 14 \| 30 mm Travel \| 180 N Maximum Continuous Thrust	Discontinued	$499
NA14B30-T4	NEMA Size 14 \| 30 mm Travel \| 180 N Maximum Continuous Thrust	Discontinued	$512
NA14B60	NEMA Size 14 \| 60 mm Travel \| 180 N Maximum Continuous Thrust	Discontinued	$534
NA14B60-T4	NEMA Size 14 \| 60 mm Travel \| 180 N Maximum Continuous Thrust	Discontinued	$547
NA23C60	NEMA Size 23 \| 60 mm Travel \| 700 N Maximum Continuous Thrust	Discontinued	$586
NA23C60-T4	NEMA Size 23 \| 60 mm Travel \| 700 N Maximum Continuous Thrust	Discontinued	$599
NA34C60	NEMA Size 34 \| 60 mm Travel \| 1200 N Maximum Continuous Thrust	Discontinued	$846
NA34C60-T4	NEMA Size 34 \| 60 mm Travel \| 1200 N Maximum Continuous Thrust	Discontinued	$859

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *	Add to Cart
MC03	Motor Extension Cable, 1.5 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$27

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
