X-MCC Series
Multi-axis universal motor controllers

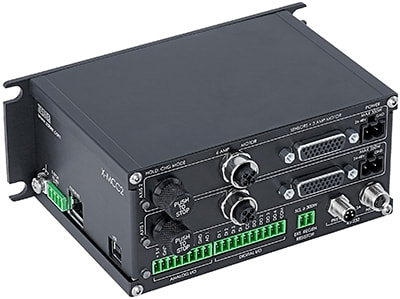

Image is representative of the X-MCC Series and may not match the selected variant.
X-MCC2
2 Axis
Starting Price: $1,698 *
Standard Lead Time: 1-5 Days
X-MCC2 Specifications
Download Datasheet| AutoDetect |  |
| Manual Control | Indexed knobs with push switches |
| Axes of Motion | 2 |
| Weight | 0.7 kg (1.543 lb) |
| Motor Connection | D-Sub 26 female |
| Communication Interface | RS-232, USB 2.0, Ethernet (10/100 Mbit/s) |
| Communication Protocol | Zaber ASCII (Default), Zaber Binary |
| Data Cable Connection | Locking 4-pin M8, USB-B |
| Power Supply | 24-48 VDC |
| Power Plug | 5.0 mm screw terminal |
| Maximum Current Draw | Motor and supply voltage dependent mA |
| Controller Maximum Current Per Phase | 6 Arms (10 A peak) |
| External Regen Resistor | 5 Ω, 300 W |
| 2D Primitives Supported | Lines, Arcs, Circles, and Helices |
| Isolated Digital Input | 4 |
| Isolated Digital Output | 4 |
| Analog Input | 4 |
| Analog Input Range | 0-10 V |
| Analog Input Resolution | 1 mV |
| Analog Output | 1 |
| Analog Output Range | 0-10 V |
| Analog Output Resolution | 2.5 mV |
| Analog Output Impedance | 100 Ω |
| E-Stop Input Range | 12-48 V |
