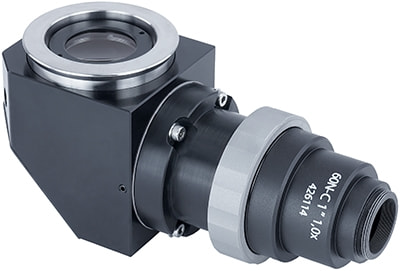

MTC90D: Microscope Camera Tube, Zeiss Tube Lens

The MTC90D is a camera tube designed to interface with the X-FCR06C motorized filter cube turret via a 57 mm circular dovetail. The optical axis of the MTC90D is folded 90 degrees, allowing this camera tube to be used in compact inverted microscope systems, such as the MVR. The MTC90D features an integrated Carl Zeiss tube lens, and it is compatible with Zeiss infinity corrected objective lenses. The MTC90D tubes lens provides a tube lens-to-objective distance (infinity space) of 142 mm, which allows room for optional modules like the MJB25 junction blocks. For a shorter distance, please see MTC90C.
The MTC90D is designed to interface with Zaber’s CC01 or any C-mount camera. The camera interface uses the Zeiss 60N adaptor standard, making it compatible with magnified camera tubes to accommodate a variety of sensor sizes. The camera tube is adjustable in XY and features a locking swivel to easily set the camera rotation, the MTC90D adjustments come factory calibrated to ensure field centering and parfocality.
