Microscope Camera Tube, Zeiss Tube Lens

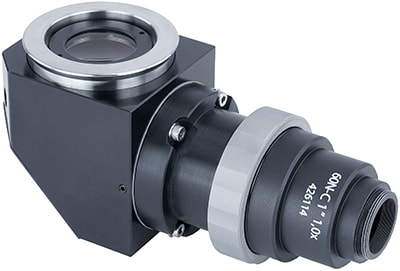

The MTC90C is a camera tube designed to interface with the X-FCR06C motorized filter cube turret via a 57 mm circular dovetail. The optical axis of the MTC90C is folded 90 degrees, allowing this camera tube to be used in compact inverted microscope systems, such as the MVR. The MTC90C features an integrated Carl Zeiss tube lens, and it is compatible with Zeiss infinity corrected objective lenses. The MTC90C tube lens provides a tube lens-to-objective distance (infinity space) of 106 mm. For a longer distance, please see MTC90D.
The MTC90C is designed to interface with Zaber’s CC01 or any C-mount camera. The camera interface uses the Zeiss 60N adaptor standard, making it compatible with magnified camera tubes to accommodate a variety of sensor sizes. The camera tube is adjustable in XY and features a locking swivel to easily set the camera rotation, the MTC90C adjustments come factory calibrated to ensure field centering and parfocality.
