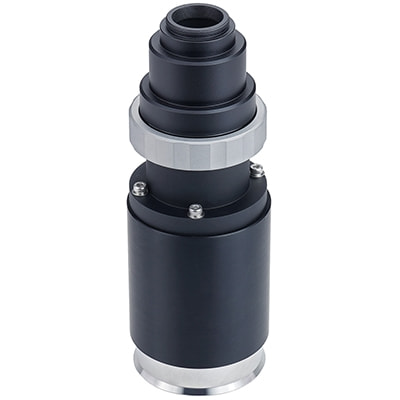

MTC00D: Microscope Camera Tube, Zeiss Tube Lens

The MTC00D camera tube interfaces with the X-FCR06C motorized filter cube turret via a 57 mm circular dovetail. The optical axis of the MTC00D is straight (no folding mirror) making it suitable for use with upright microscope systems such as the MSR. The MTC00D features an integrated Carl Zeiss tube lens, and it is compatible with Zeiss infinity corrected objective lenses. The MTC00D tube lens provides a tube lens-to-objective distance (infinity space) of 142 mm, which allows room for optional modules like the MJB25 junction blocks. For a shorter distance, please see MTC00C.
The MTC00D is designed to interface with Zaber’s CC01 or any C-mount camera. The camera interface uses the Zeiss 60N adaptor standard, making it compatible with magnified camera tubes to accommodate a variety of sensor sizes. The camera tube is adjustable in XY and features a locking swivel to easily set the camera rotation, the MTC00D adjustments come factory calibrated to ensure field centering and parfocality.
