Nucleus® MLR reflected light iIlluminators

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)

About This Series

The MLR illuminators use 3 high power LEDs to provide illumination suitable for multi-channel fluorescence microscopy. They attach to the epi-illumination port of Zaber’s MVR Series microscopes. The MLR3A provides excellent excitation of the most commonly used fluorophores, including DAPI, GFP, Cy3, FITC, TRITC and TxRed. The MLR3B excitates the same fluorophores as well as longer wavelength fluorophores such as Cy5.

The MLR illuminators are designed to be plug and play with Zaber’s X-LCA4 Series LED controllers.

For use with microscopes other than Zaber's MVR, please contact us.

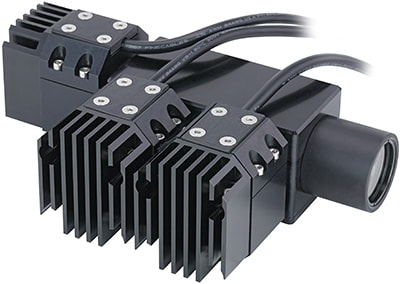

Photo of the MLR
1 2 3 4 5
  1. 3 Channels of high power LEDs.
  2. Attaches to epi-illumination port of Zaber’s MVR microscopes.
  3. 5 pin locking M8 connectors provide secure connection to X-LCA4 Series LED controller.
  4. The X-LCA4 automatically detects which LED is plugged into which port and limits the driving current to what the LED can handle.
  5. On-board LED temperature measurement ensures the LEDs stay within their optimal operating conditions for a long reliable lifetime.
