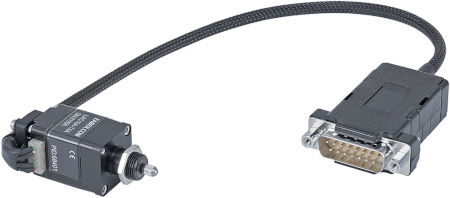

Linear Actuators
- With the optional built-in controller, share a single power supply with up to 3 motorized linear actuator devices and daisy-chain data with up to 99 devices; stand-alone controllers also available
- Optional motor encoders provide slip/stall detection and recovery
- Up to 60 mm travel, 1200 N thrust, 1 µm repeatability
Zaber offers a wide selection of motorized linear actuator products. Most of Zaber's linear actuators are available with built-in controllers.
Have a Question?

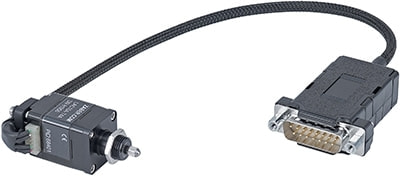

LAC Series — Compact
Starting Price
$834 (USD)
Representative Image
Learn More
- 10 mm travel
- Resolution down to 0.024 µm
- Multiple tip options included
- Compact size: great for applications with limited space
| Shortest Travel | Longest Travel | Best Accuracy | Best Backlash | Best Repeatability | Highest Speed | Highest Thrust |
|---|---|---|---|---|---|---|
10 mm (0.394") | 10 mm (0.394") | 10 µm (0.000394") | < 2 µm (< 0.000079") | < 1.5 µm (< 0.000059") | 14 mm/s (0.551"/s) | 40 N (9 lb) |

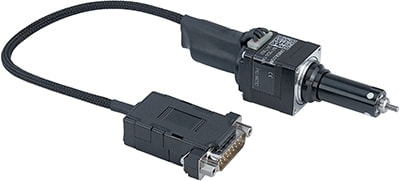

NA Family — Wide Selection of Sizes
Starting Price
$599 (USD)
Representative Image
Learn More
- 16, 25, 30, 50 and 60 mm travel
- Replaces standard micrometer heads on manual translation stages
- Built-in controller or motor models only
- Motor encoder option for slip/stall detection and automatic recovery
| Shortest Travel | Longest Travel | Best Accuracy | Best Backlash | Best Repeatability | Highest Speed | Highest Thrust |
|---|---|---|---|---|---|---|
16 mm (0.63") | 60 mm (2.362") | 20 µm (0.000787") | < 15 µm (< 0.000591") | < 1 µm (< 0.000039") | 80 mm/s (3.15"/s) | 1300 N (291.5 lb) |
