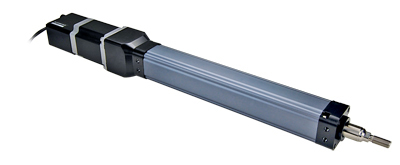

(Discontinued) A-BAR-E Series
Closed-loop motorized electric cylinders with built-in stepper motors, motor encoders, and controllers
This series has been discontinued and is no longer available. Please contact us for a recommendation on a current model.
- 200 or 300 mm travel
- 540 N peak thrust
- Up to 65 mm/s speed
- Ball screw driven
- Inline and parallel drive configurations
- Encoder position feedback with slip/stall detection and automatic recovery
- Built-in controller; daisy chains with other A-Series and T-Series products
Have a Question?

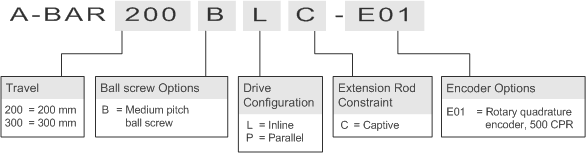

Part Numbering & Options
Showing 4 of 4 Parts.
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add To Compare |
|---|---|---|---|---|
| A-BAR200BLC-E01 | 200 mm Travel | Inline Drive | Discontinued | $1,439 | |
| A-BAR200BPC-E01 | 200 mm Travel | Parallel Drive | Discontinued | $1,439 | |
| A-BAR300BLC-E01 | 300 mm Travel | Inline Drive | Discontinued | $1,489 | |
| A-BAR300BPC-E01 | 300 mm Travel | Parallel Drive | Discontinued | $1,489 |
