X-MCA Series
Stepper Motor Controllers

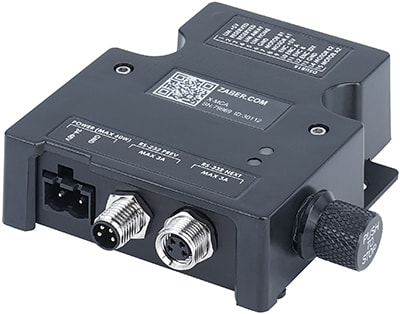

Image is representative of the X-MCA Series and may not match the selected variant.
X-MCA
2 Phase | Manual Control
Starting Price: $575 *
Lead Time: 1-5 Days
X-MCA Specifications
Download Datasheet| AutoDetect |  |
| Manual Control | Indexed knob with push switch |
| Axes of Motion | 1 |
| LED Indicators | |
| Weight | 0.07 kg (0.154 lb) |
| Default Resolution | 1/64 of a step |
| Motor Connection | D-Sub 15 female |
| Communication Interface | RS-232 |
| Communication Protocol | Zaber ASCII (Default), Zaber Binary |
| Data Cable Connection | Locking 4-pin M8 |
| Power Supply | 24-48 VDC |
| Power Plug | 2-pin Screw Terminal |
| Maximum Current Draw | Motor and supply voltage dependent mA |
| Controller Maximum Current Per Phase | 1000 mA (1418 mA peak) |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
