X-MCA Series
Stepper Motor Controllers
About This Series

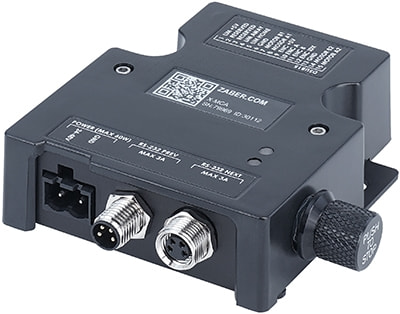

The X-MCA is a high resolution, small form factor stepper motor controller for bipolar stepper motors and actuators up to 1.0 Arms (1.4 A peak) per phase. An optional indexed knob provides convenient manual control for versatile operation even without a computer.
This is our most compact stand-alone controller available. It has been designed to fit in tight spaces and provide a range of mounting options including 90 degree stacking and 35 mm DIN rail mounting via optional accessories AB158 and AB159.
An intuitive ASCII interface allows the user to easily communicate with the device through Zaber Launcher (our free software), as well as third-party terminal programs.
When daisy-chained with several units, the X-MCA can share a single power supply with multiple X-Series products.
Click here to see the list of devices the X-MCA can control.
- Intelligent stepper motor drivers with chopper drive circuitry and advanced motion algorithms.
- Connect to and control any bipolar stepper motors or actuators with up to 1.0 Arms (1.4 A peak) per phase.
- Mounting features allow easy installation on breadboards, DIN rails or electronics cabinets.
- Controller provides closed-loop control for devices with motor-mounted quadrature encoders.
- Compatible Zaber AutoDetect peripherals are automatically detected and configured for use.
- Multiple units can be daisy-chained and controlled via serial port. Power can also be shared in the chain.
- An optional indexed knob provides convenient manual control.
Easy Set-Up
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
