(Discontinued) T-CD Series

Stepper motor controller

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)

About This Series

Zaber's T-CD stepper motor controller is a microstep driver offering microstepping down to 128 microsteps per step. With a typical stepper motor having 200 steps per revolution, the T-CD stepper motor controller allows microstepping down to to 25600 microsteps per revolution. The T-CD stepper controller can be used to control any 2 phase stepper motor with continuous current draw up to 2.5A per phase. The T-CD controller can be used for stepper motor control of the following products which can be purchased separately:
Stepper Linear Actuators - NA Series
Stepper Motors - NM Series
Motorized Linear Stages - LML Series
Motorized Goniometers - LMG Series
T-CD stepper motor controllers can be daisy-chained with any T-Series products to a single serial or USB port.

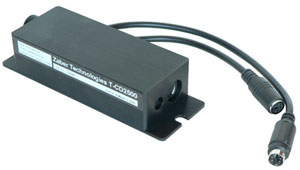

Default image for https://www.zaber.com/products/controllers-joysticks/T-CD/features?sr=1
1 2 3 4 5 6 7 8
  1. A knob allows the user to move the device at variable speeds.
  2. LEDs (not shown) indicate the power and communication status of the controller at a glance.
  3. Intelligent stepper motor driver with chopper drive circuitry and advanced motion algorithm.
  4. Control all units in the daisy-chain via serial port (with a T-DSUB9 adaptor) or USB (with a T-USBDC cable)
  5. Daisy-chain additional units without additional cables. Power can also be shared in the chain.
  6. Can control any bipolar stepper motor or actuator up to 2.5A/phase.
  7. Accepts 12V to 24V power supply (power is not daisy-chained so it is compatible with all T-Series).
  8. Easy to mount controller to panel, lab bench, or electronics cabinet.

Easy Set-Up

Photo instructions of Daisy-Chaining Peripherals

For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.

For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
