Upright Microscope Tower, 300 mm, 305 mm Y-travel XY Stages

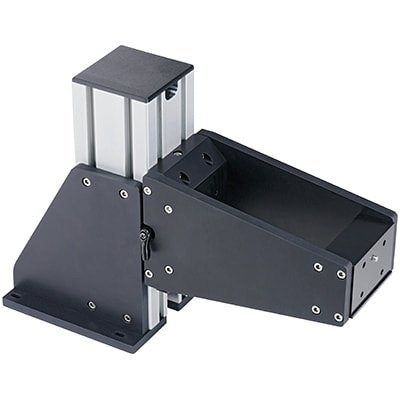

The MTR300D upright microscope tower provides a rigid structural frame for mounting an MKR microscope core in an upright configuration (with the objective lens above the sample). The MTR300D provides up to 100 mm of manual vertical adjustment to accommodate large samples. The y-axis offset between the tower and the optical axis can accommodate a 205 mm x 205 mm ASR or 305 mm x 305 mm ASR XY stage.
The MTR300D should be mounted to a rigid optical table in order to maximize rigidity at the optical axis and minimize the effect of vibrations on image stability. A honeycomb core optical breadboard or optical table with a thickness of at least 50 mm is recommended.
