MLR Series User's Manual

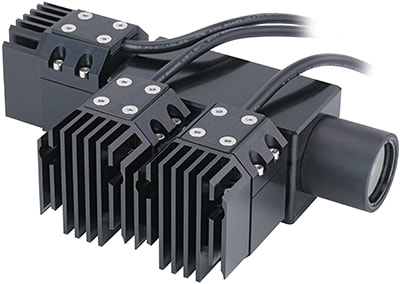

Nucleus® MLR reflected light iIlluminators
Disclaimer
Zaber’s products are not intended for use in any critical medical, aviation, or military applications or situations where a product's use or failure could cause personal injury, death, or damage to property. Zaber disclaims any warranty of fitness for a particular purpose. The user of this product agrees to Zaber's general terms and conditions of sale.
Precautions
UV Light Hazard! The MLR illuminator contains a high-power UVA LED. Do not look directly into the beam of light or expose skin. Do not attempt to disassemble or service an MLR device, except under the advisement of a Zaber representative.
Installation
Connect the MLR illuminator to the epi-illumination port of any Zaber MVR microscope. Connect the 3 LED channels to the X-LCA4 controller using the 5-pin locking M8 connectors.
Operation
The MLR LED peripherals are designed to be plug & play with Zaber's X-LCA4 controller. The controller will automatically detect the connected LEDs and apply appropriate driving currents when LEDs are activated. See the X-LCA4 Manual for more information on how to activate LED peripherals.
By default, the LED channels will be set to 0 brightness upon device initialization. To increase brightness, send commands to the X-LCA4 controller, or turn the manual control knobs.
Warranty and Repair
For Zaber's policies on warranty and repair, please refer to the Ordering Policies.
Standard products
Standard products are any part numbers that do not contain the suffix ENG followed by a 4 digit number. Most, but not all, standard products are listed for sale on our website. All standard Zaber products are backed by a one-month satisfaction guarantee. If you are not satisfied with your purchase, we will refund your payment minus any shipping charges. Goods must be in brand new saleable condition with no marks. Zaber products are guaranteed for one year. During this period Zaber will repair any products with faults due to manufacturing defects, free of charge.
Custom products
Custom products are any part numbers containing the suffix ENG followed by a 4 digit number. Each of these products has been designed for a custom application for a particular customer. Custom products are guaranteed for one year, unless explicitly stated otherwise. During this period Zaber will repair any products with faults due to manufacturing defects, free of charge.
How to return products
Customers with devices in need of return or repair should contact Zaber to obtain an RMA form which must be filled out and sent back to us to receive an RMA number. The RMA form contains instructions for packing and returning the device. The specified RMA number must be included on the shipment to ensure timely processing.
Email Updates
If you would like to receive our periodic email newsletter including product updates and promotions.
Contact Information
Contact Zaber Technologies Inc by any of the following methods:
| Phone | 1-604-569-3780 (direct) 1-888-276-8033 (toll free in North America) |
|---|---|
| Fax | 1-604-648-8033 |
| #2 - 605 West Kent Ave. N., Vancouver, British Columbia, Canada, V6P 6T7 | |
| Web | www.zaber.com |
| Please visit our website for up to date email contact information. |
The original instructions for this product are available at https://www.zaber.com/manuals/MLR.

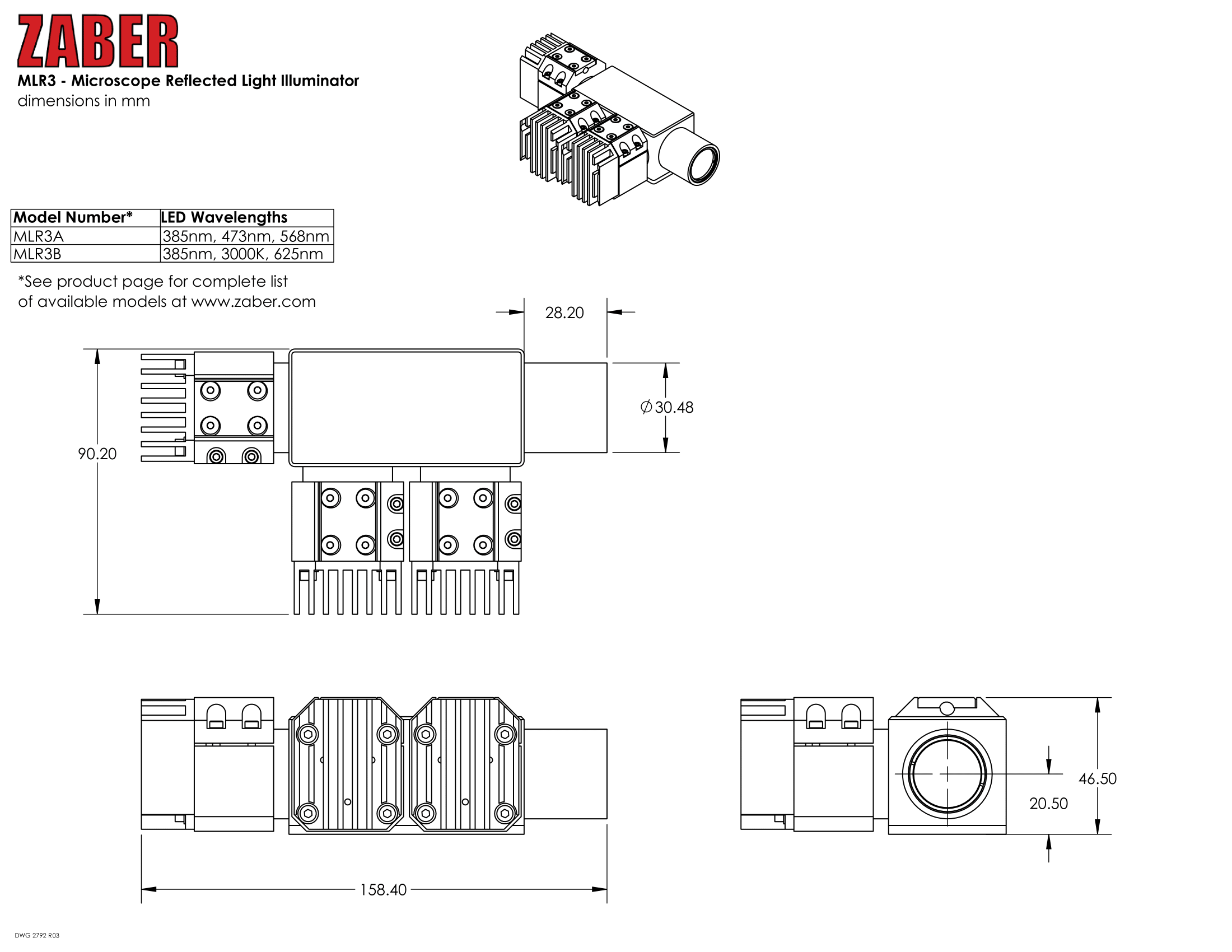

Product Drawing
Specifications
| Specification | Value | Alternate Unit |
|---|---|---|
| Built-in Controller | No | |
| Recommended Controller | X-LCA4 (48 V) Recommended | |
| Connector Type | 3 x 5-pin locking M8 | |
| Operating Temperature Range | 0-50 °C | |
| CE Compliant | Yes | |
| Weight | 0.6 kg | 1.323 lb |
Comparison
| Part Number | Maximum Current Draw | Nominal Wavelength | Colour Temperature | FWHM (Full Width at Half Maximum) |
|---|---|---|---|---|
| MLR3A Channel 1 | 1000 mA | 385 nm | N/A | 18 nm |
| MLR3A Channel 2 | 1000 mA | 473 nm | N/A | 25 nm |
| MLR3A Channel 3 | 1000 mA | 568 nm | N/A | 110 nm |
| MLR3B Channel 1 | 1000 mA | 385 nm | N/A | 18 nm |
| MLR3B Channel 2 | 3000 mA | N/A | 3000 K | N/A |
| MLR3B Channel 3 | 1000 mA | 625 nm | N/A | 20 nm |
Product Change Notices
Click here to view the current product change notices and subscribe to future change notifications.
