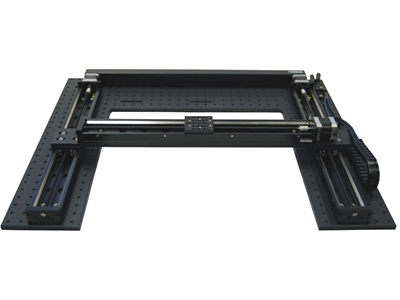

XY Gantry with Custom Base

This set-up has been used for applications in which a Z-axis will extend down beyond the cut-away in the breadboard.

This system includes the X-MCA controllers (not shown) and everything that you would need to set-up and run the unit. The stages daisy-chain and plug into a single serial port, and they are very easy to control. We have free software and Labview drivers available.
