Custom LSQ-T4A With Parallel Mounted Motor
Published on Mar. 19, 2022
The Challenge: Our customer required the performance and versatility of Zaber’s LSQ linear stages, but limited mounting space prevented them from fitting a standard unit with the necessary travel.

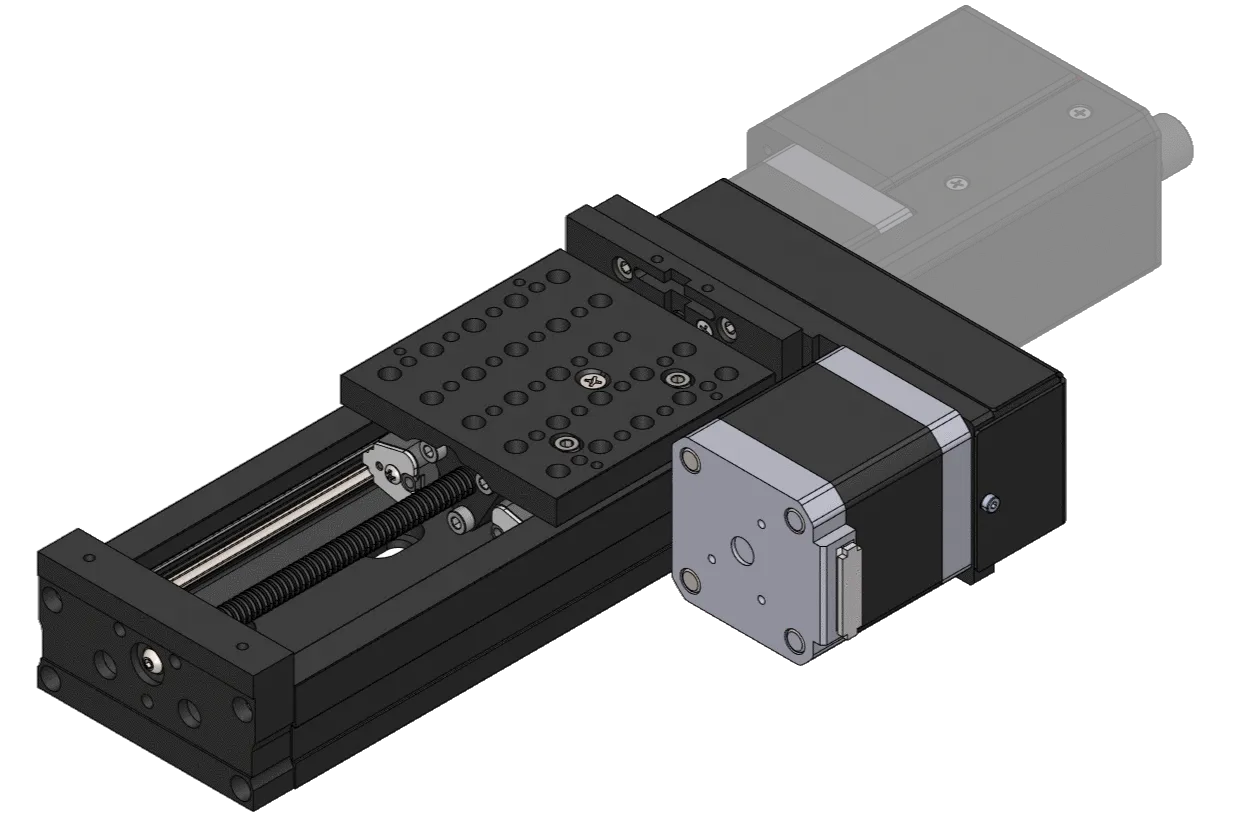

The Solution: Zaber’s Custom Engineering team developed a solution that reduced the length of the LSQ by repositioning the motor to be beside the motion platform.
The Outcome: This customization is 93 mm shorter than an equivalent, standard X-LSQ, and allowed Zaber to offer a longer travel linear stage in a length constrained environment.
Zaber’s Technical Advantage: Our applications engineers team works closely with the custom engineering team, making solutions like this an efficient and highly tailored process. The LSQ with a parallel mounted motor retains all the established benefits of Zaber's LSQ ecosystem, including compatibility with external controllers (X-MCC), LSQ Gantry compatibility, and dust cover options.
Our product customization team is able to complete most customizations within a two-week period. Contact us with your requests.
