force-mode-demo

A modular Python project demonstrating force-controlled motion operations using the Zaber motion system. This project includes three main examples: tactile profiling, compression testing, and surface mapping, all controlled via load cell feedback with automatic data recording and visualization.

The accompanying article on integrating load cells with Zaber systems can be found here.

The codebase is modular, making it easy to extract and reuse specific operations for your own applications.

Features

• Modular Design: Features are decoupled. You can run the entire suite
  via the interactive CLI, or easily copy standalone scripts for specific
  tasks into your own codebase.
• Complete force control demonstrations: Real-time feedback with
  configurable PID tuning.
• Automatic data recording: Utilizes the Zaber oscilloscope
  functionality.
• Built-in plotting: Generates force/position profiles using
  matplotlib.
• Hardware trigger integration: For safety and contact detection
  automation.

Overview

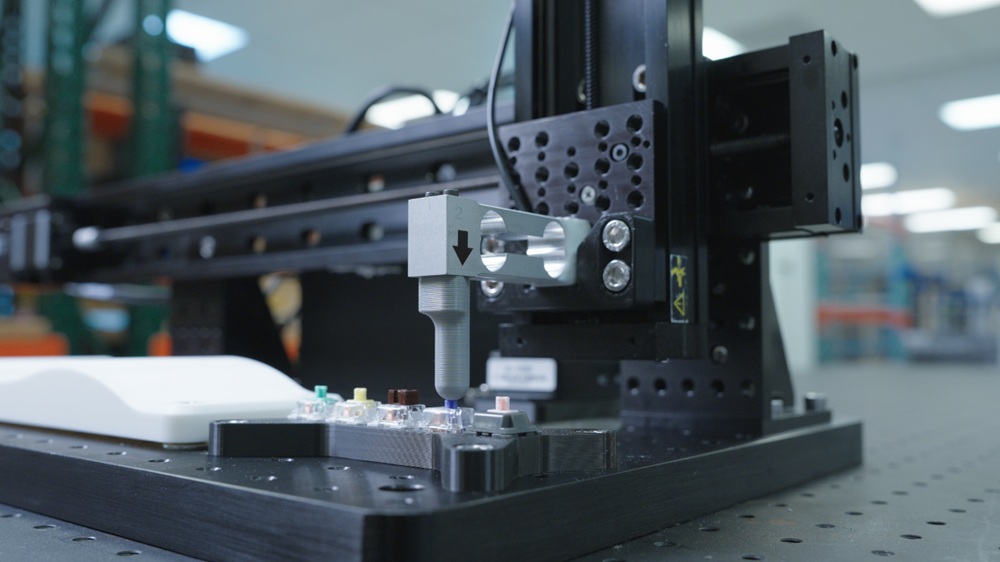

This project interfaces with a Zaber X-MCC motion controller equipped with:

• A force-controlled Z-axis (vertical movement).
• A translation X-axis (horizontal movement).
• A load cell for force feedback connected to analog input port 1.

1. Tactile Profiling

Measures the force-displacement profile of a device (like a keyboard switch). Moves until a bottom-out condition is detected via a hardware trigger. Records force vs. position data and generates a plot showing the tactile curve.

2. Compression Test

Applies a controlled force to an object and holds it at a specified setpoint. Uses PID tracking to maintain constant force. Records force vs. position data and generates a plot showing the force profile during the compression operation.

3. Surface Mapping

Maintains a constant force setpoint while moving the translation axis across a surface. Records position data from both axes to generate a 2D scan profile of the surface contour. Uses two-phase PID tuning: conservative settings for initial contact, then responsive settings for tracking.

System Requirements

• Python 3.12+
• Zaber X-MCC motion controller
• Zaber Motion Library
• Load Cell connected to analog input port 1
• matplotlib & numpy

Installation

Using uv

1. Clone or download this project.

2. Install all dependencies with a single command:

   cd path/to/force-mode-demo
   uv sync

   This will install all dependencies and register the force-mode-demo command.

   To also install development dependencies (pyright, pytest, ruff): uv sync --all-groups

Hardware Setup & Global Configuration

Hardware connection details and global calibration constants are managed in src/force_mode_demo/config.py.

1. Update serial port configuration:

   XMCC_CONFIG = DeviceSetup(
       serial_port="COM5",  # Change to your device's serial port, device is assumed to be index=1 and no other Zaber device is connected
       force_axis_index=2,  # Axis connected to force control
       translation_axis_index=1,  # Axis connected to translation
       ...
   )

2. Calibrate the load cell:

   LOAD_CELL_CONFIG = LoadCellSetup(
       lc_slope_n_per_v=2.35,  # Replace with calibration value [N/V]
       lc_offset_v=0.65,       # Replace with calibration value [V]
       lc_max_force_n=20.0,    # Set your safe maximum force [N]
       mcc_analog_in=1,        # X-MCC analog input port connected to load cell
   )

Project Structure

The project is structured to separate global configuration, core mechanical logic, and execution runners.

src/force_mode_demo/
├── main.py                 # Main interactive CLI menu for all demos
├── config.py               # Global hardware config (XMCC_CONFIG, LOAD_CELL_CONFIG)
├── models.py               # Data models and conversion helpers
├── plot.py                 # Shared plotting utilities
├── compression/
│   ├── compression_logic.py # Core mechanics for compression testing
│   └── compression_run.py   # Standalone runner and Compression config
├── tactile/
│   ├── tactile_logic.py     # Core mechanics for tactile profiling
│   └── tactile_run.py       # Standalone runner and Tactile config
└── mapping/
    ├── mapping_logic.py     # Core mechanics for surface mapping
    └── mapping_run.py       # Standalone runner and Mapping config

Running the Demos

You can run the examples in two ways: via the combined interactive menu, or as standalone scripts.

1. Interactive Menu

To explore all features from a single unified prompt, run:

uv run force-mode-demo

(Or uv run src/force_mode_demo/main.py if running without installing the package)

2. Standalone Execution (Modular Reuse)

If you only want to use one specific feature, you can run its standalone runner script directly. These runner scripts establish their own connections, making them perfect templates to copy-paste into your own application.

Run the Compression Test Demo:

uv run src/force_mode_demo/compression/compression_run.py

Run the Tactile Profiling Demo:

uv run src/force_mode_demo/tactile/tactile_run.py

Run the Surface Mapping Demo:

uv run src/force_mode_demo/mapping/mapping_run.py

Demo-Specific Configuration

To adjust the PID tuning, movement speeds, safety limits, and thresholds for a specific demo, edit its respective runner file. For example, to change the COMPRESSION operation parameters, edit COMPRESSION_CONFIG located inside src/force_mode_demo/compression/compression_run.py.

Safety Considerations

• Always set appropriate lc_max_force_n limits to prevent equipment
  damage.
• Test with low force values first.
• Verify load cell calibration before running operations.
• Monitor the device during initial test runs.
• The tactile profiling operation uses hardware triggers for automatic
  stopping when contact is detected. Ensure triggers are correctly
  configured for your hardware.
