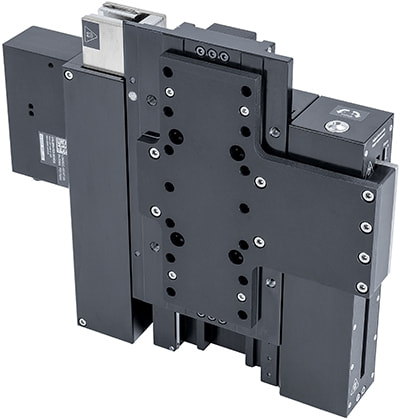

LDM-AEZ Series

Ultra precision vertical stages

  • 40 mm or 60 mm travel
  • Passive, user adjustable magnetic counterbalance for payloads up to 55 N
  • High repeatability (80 nm) and accuracy (1 µm), with 8 nm minimum incremental move
  • Direct position measurement from 1 nm resolution linear encoder
  • Up to 0.8 m/s speed and up to 1.6 g acceleration
  • Non-contact ironless linear motor for high precision, high dynamic performance & reliability
  • Designed for use with an X-MCC Series controller for coordinated multi-axis motion
  • With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
  • Learn more: Magnetic Counterbalances for High Performance Vertical Stages

Part Numbering & Options

Part Numbering Scheme of the LDM-AEZ
Part NumberDescriptionLead TimeStarting
Prices (USD) *
Add to Cart
LDM040C-AE54ZJ2T10A40 mm Travel | Medium Force Adjustable Counterbalance5-10 Days$10,552
LDM060C-AE54ZJ1T10A60 mm Travel | Low Force Adjustable Counterbalance5-10 Days$10,552

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
