LDM-AEZ Series
Ultra precision vertical stages
About This Series

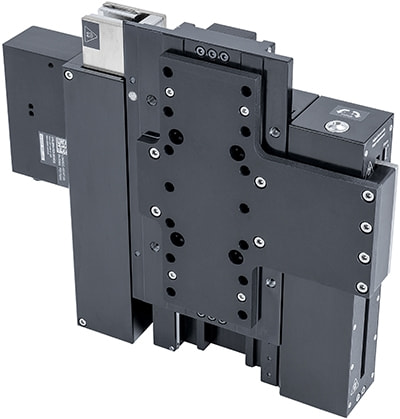

Zaber's LDM-AEZ Series devices are motorized stages delivering the high precision, reliability, and speed of LDM-AE linear motor stages in a package for vertical applications. A passive magnetic counterbalance compensates for payloads up to 55 N, preventing unwanted motion during power loss. The counterbalance’s force can be finely adjusted in seconds with a single screw.
These stages are designed to connect directly to our X-MCC controller using a single cable. Set-up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the LDM-AE.
- Panel Mount DB26 with AutoDetect allows the LDM-AEZ to be easily connected to an X-MCC Series controller and ready to use without additional user input.
- A passive magnetic counterbalance compensates for payloads up to 55 N. The counterbalance force can be finely adjusted in seconds.
- Servo tuning parameters can automatically be optimized for any payload mass with our free software. Parameters can be adjusted on the fly.
- LDM-AEZ stages are designed for extreme reliability. Zero moving cables, combined with a non-contact drive and encoder result in an exceptionally robust system.
- 1 nm resolution linear encoder is centrally mounted for optimal accuracy and repeatability.
- Ultra-smooth crossed roller bearings provide long life and excellent pitch, roll, and yaw specifications.
- Side mounted ironless linear motor provides excellent dynamic performance, while improving repeatability by keeping heat away from the stage’s encoder scale.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
