LDM-AEZ Series
Ultra precision vertical stages
Series Specifications
Download Datasheet| Built-in Controller |  |
| Recommended Controller | MCC (48 V) Recommended |
| AutoDetect |  |
| Travel Range | 40 – 60 mm |
| Axes of Motion | 1 |
| Weight | 5.14 kg (11.332 lb) |
| Accuracy (unidirectional) | 1 µm (0.000039") |
| Repeatability | < 0.08 µm (< 0.000003") |
| Minimum Incremental Move | 8 nm |
| Straightness of Travel | < 4 µm (< 0.000157") |
| Pitch Error | 0.003° (0.052 mrad) |
| Roll Error | 0.002° (0.035 mrad) |
| Yaw Error | 0.002° (0.035 mrad) |
| Peak Thrust | 90 N (20.2 lb) |
| Maximum Continuous Thrust | 25 N (5.6 lb) |
| Maximum Moment (Pitch) | 12 N⋅m (8.9 lb⋅ft) |
| Maximum Moment (Roll) | 12 N⋅m (8.856 lb⋅ft) |
| Maximum Moment (Yaw) | 12 N⋅m (8.856 lb⋅ft) |
| Counterbalance Payload Range | Varies |
| Maximum Acceleration | 9 m/s2 – 16 m/s2 |
| Maximum Speed | 600 – 800 mm/s |
| Minimum Speed | 0.61 nm/s |
| Speed Resolution | 0.61 nm/s |
| Encoder Type | Linear analog encoder |
| Encoder Count Size | 1 nm |
| Limit or Home Sensing | Optical Index Mark |
| Motor Type | Moving Magnet Track Linear Motor (3 phase) |
| Motor Rated Current | 2400 mA |
| Motor Winding Resistance | 6.4 ohms line-to-line |
| Motor Winding Inductance | 1.24 mH line-to-line |
| Motor Connection | D-sub 26 |
| Force Constant | 15.8 N/A (3.5 lbs/A) |
| Counterbalance Type | Adjustable Magnetic |
| Guide Type | Crossed-Roller Bearing |
| Mounting Interface | M6 threaded holes |
| Moving Mass | 2.32 kg (5.104 lbs) |
Filter By Feature
Choose one or more options below to filter the parts table.
LDMTravel: 040, not selectedForcer Size: C-Encoder Options: AE54Counterbalance Options: ZJ2, not selectedConnector: T10A
Showing 2 of 2 parts.Forcer Size
Encoder Options
Counterbalance Options
Connector
Part Specifications Comparison
| Part Number | Travel Range | Counterbalance Payload Range | Maximum Acceleration | Maximum Speed |
|---|---|---|---|---|
| LDM040C-AE54ZJ2T10A | 40 mm (1.575") | 38-55 N (8.5-12.3 lb) | 9 m/s2 (0.92 g) | 600 mm/s (23.622"/s) |
| LDM060C-AE54ZJ1T10A | 60 mm (2.362") | 10-33 N (2.2-7.4 lb) | 16 m/s2 (1.63 g) | 800 mm/s (31.496"/s) |
Specification Charts & Notes

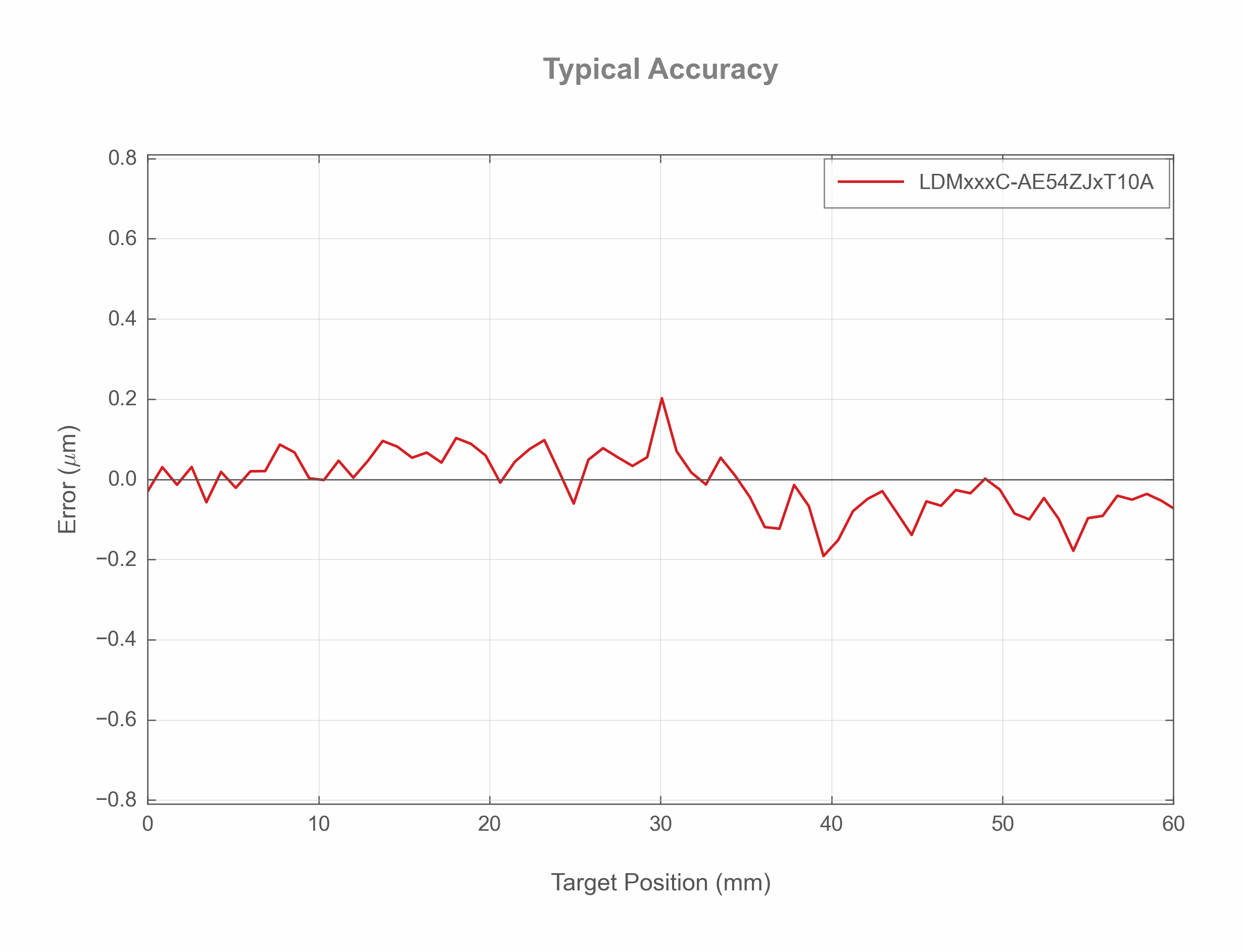

Typical Accuracy

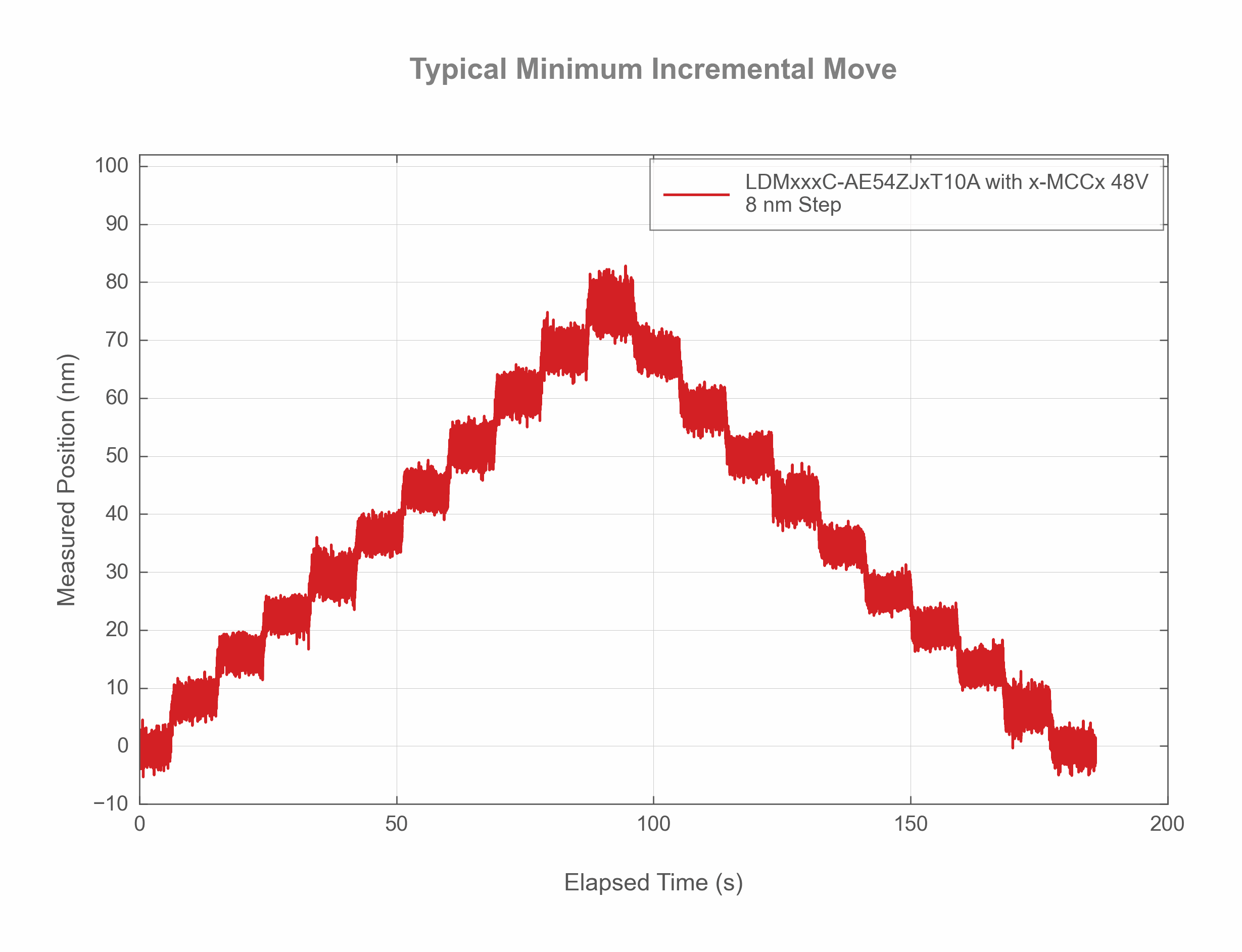

Minimum Incremental Move
