ADR250 Insert, Microplate Holder

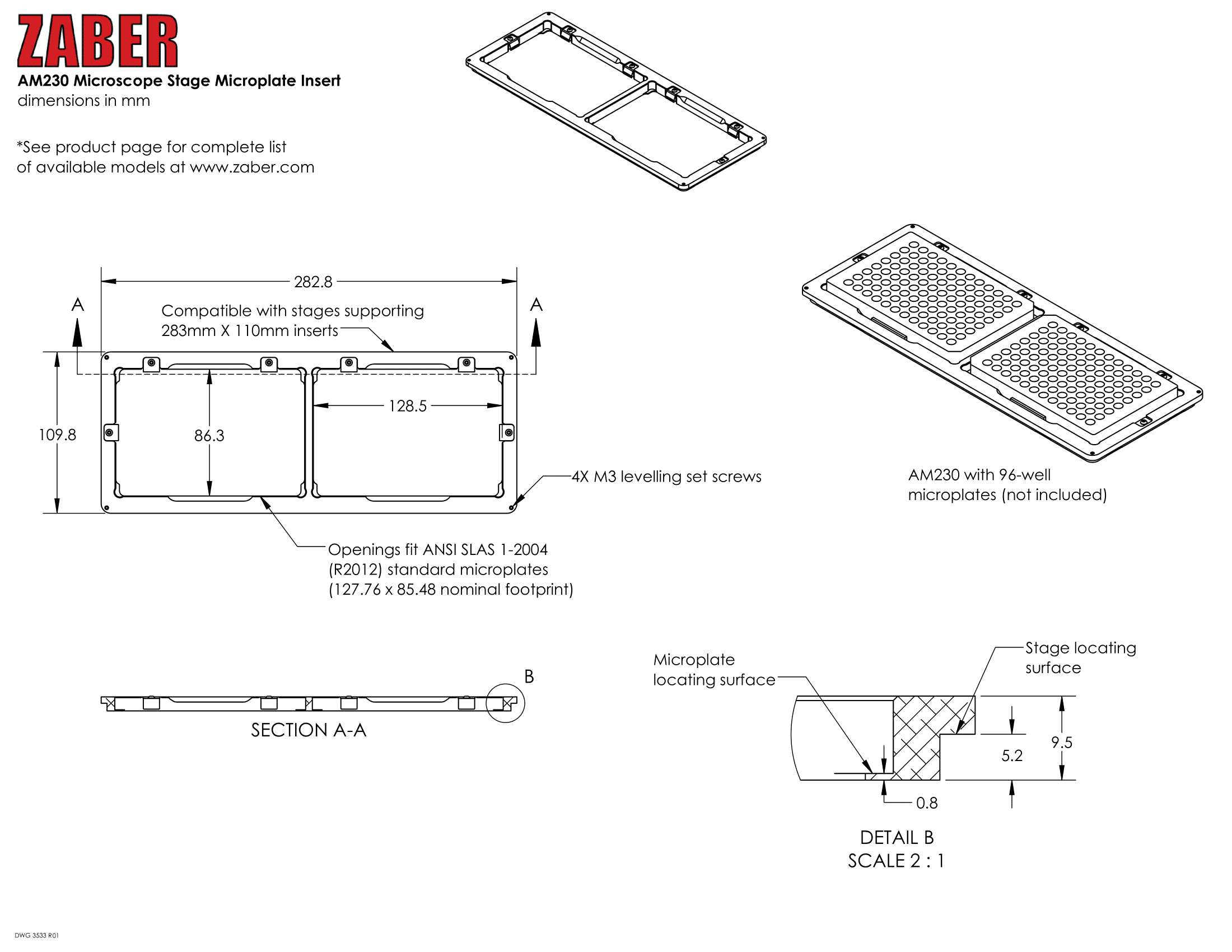

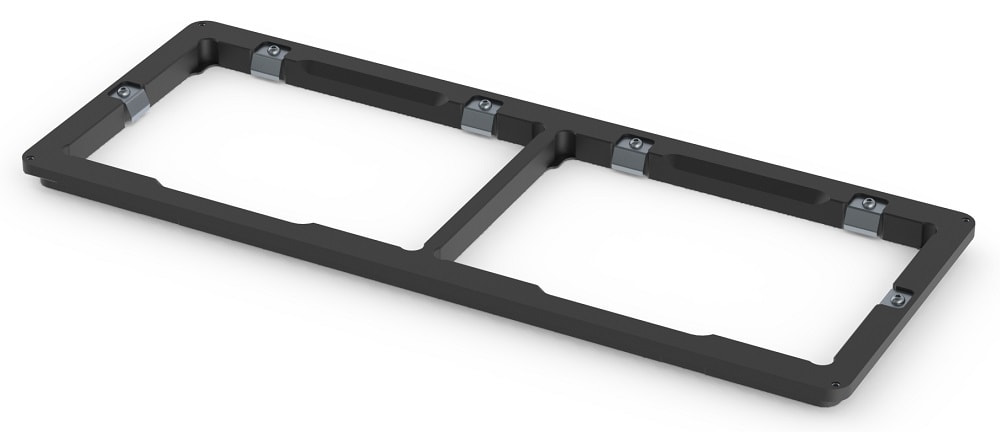

This 283 x 110 mm insert fits into the top plate of the ADR 250 x 100 mm travel XY stages. It is held in place by a spring clip or optional magnets on the stage allowing quick changes between different inserts. The AM230 holds two SLAS standard (127.76 x 85.48 mm) microplates. Built in spring clips allow easy microplate switching.
