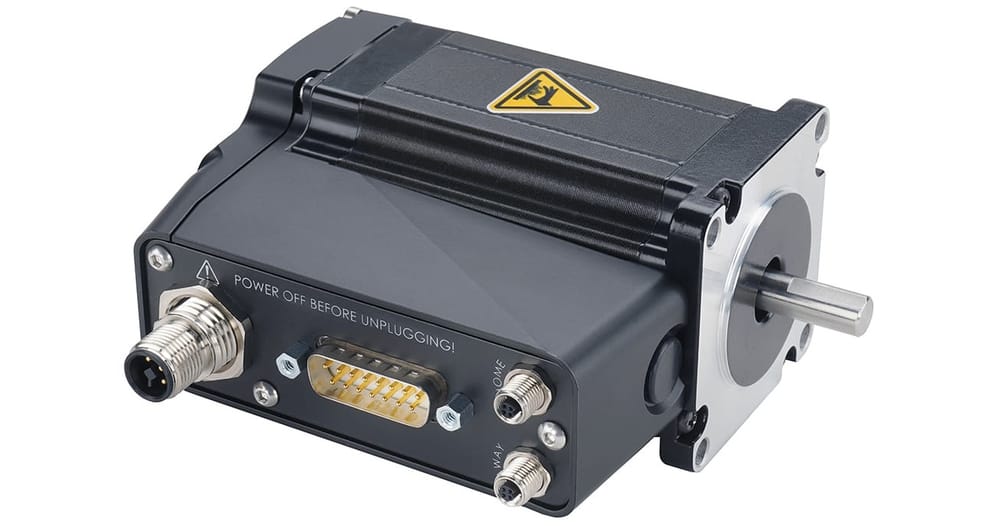

Brushless DC Servo Motors
- Uncompromised High Power & Speed Output
BLDC motors maintain high torque and power efficiency across their entire speed range—enabling faster move times, higher throughput, and reliable motion under heavy loads. - High Precision & 360° Absolute Positioning
High-resolution encoder ensures exceptional positioning accuracy and repeatability. Single-turn absolute encoder sets position and phase reference instantly on startup — enabling maximum performance on startup. - Silent, Smooth, and Cool Operation
Optimized for Zaber's controllers and advanced features such as closed loop position control and field oriented control. Low internal thermal dissipation keeps motor temperatures low, preserving sensitive thermal conditions in optical or life sciences applications. - Direct Torque Sensing
Real-time motor current monitoring enables direct torque sensing, force-limiting, and collision detection — enabling active force control without the cost or integration of external load cells.
Why Choose Brushless DC?
Brushless DC (BLDC) motors and servo screw-drive stages bridge the gap between traditional steppers and direct-drive systems. These deliver the high thrust of a screw-drive with the quiet, high-throughput performance of a servo motor.
- Silent, smooth and cool operation
- Higher power output
- Faster move times without stepper torque drop-off
- Real-time motor current monitoring provides torque/thrust measurement
- True closed-loop servo control — no missed steps or stalls
Applications
- BLDC motors and linear stages or actuators are ideal for demanding operations where precision, force control, and quiet performance are essential:
- Semiconductor & Electronics: Rapid "step-and-settle" times for high-throughput wafer inspection and electronics assembly. Enables delicate component probing, pressing, and micro-assembly without external sensors.
- Microscopy & Life Sciences: Optical alignment, live-cell imaging, and clinical automation sensitive to heat expansion or noise. Ideal for automated syringe or pipette pressing where precise contact detection and force-limiting are required.
- Industrial Photonics & Optics: Heavy payload capacity and smooth power delivery provide stable motion under dynamic loads. High torque across high RPM ranges makes it ideal for continuous-duty applications like laser marking, cutting, machining, and material processing.
Have a Question?

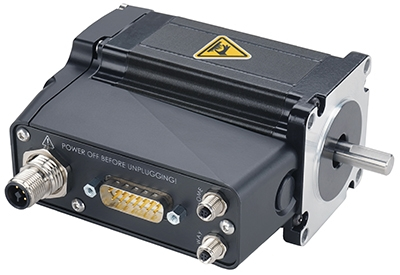

NMB-E Series — Brushless DC Servo Motors With Encoders And Optional Brakes
Starting Price
$684 (USD)
Representative Image
Learn More
- Power & Performance
- Fast acceleration with 1.7 N⋅m peak torque. Rated speed of 3300 rpm and 0.57 N⋅m rated torque.
- High torque and efficiency across speed range.
- Produces minimal acoustic noise and low heat dissipation to protect sensitive optical and life science setups.
- Precision & Feedback
- Integrated high-resolution encoder, 16,384 states/rev, provides smooth commutation and accurate positioning.
- Direct torque sensing using real-time motor current monitoring for force limiting and collision detection.
- Optional integrated power-off brake holds payloads securely across power cycles.
- Controller Integration & Motion Control
- Designed and optimized for the MCC motor controller, offering true closed-loop control and torque sensing.
- The MCC controller's AutoDetect configures motor parameters, encoder setup, and servo loop tuning, reducing setup time and eliminating manual configuration errors.
- HS02 home sensor and magnet included with accurate homing routines on the MCC controller. A second HS02 can be connected to the away sensor connector.
| Highest Maximum Torque | Highest Rated Torque | Highest Rated Speed | Best Repeatability |
|---|---|---|---|
1.7 N⋅m (1.255 lb⋅ft) | 0.57 N⋅m (0.421 lb⋅ft) | 19800°/s (3300 rpm) | < 0.02° (< 0.349 mrad) |

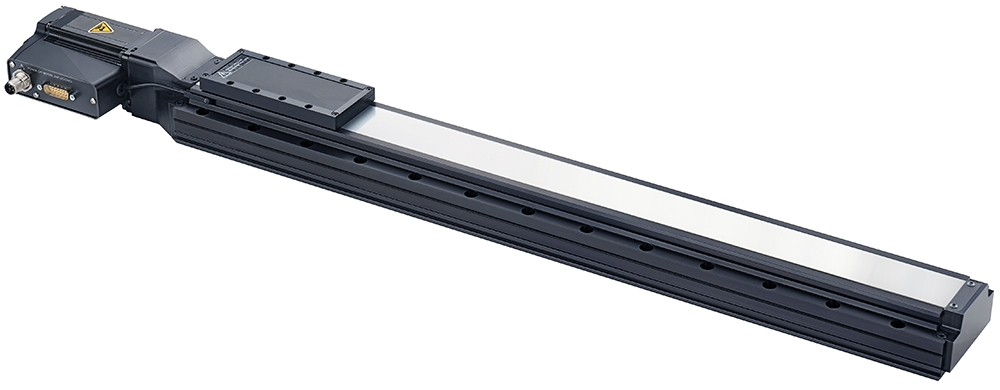

LRT-ECM Series — High Load with Brushless DC Servo Motors and Dust Covers
Starting Price
$4,305 (USD)
Representative Image
Learn More
- Primary Specs
- 100, 250, 500, 750, 1000 mm travel
- Up to 240 mm/s speed and up to 1440 N thrust
- 300 kg load capacity
- 16,384 states/rev motor encoder
- Drivetrain & Mechanical Design
- High-power BLDC motors provide smooth, quiet motion and high throughput.
- Ball screw ensures high-accuracy, high-speed linear motion.
- Flexible stainless steel dust cover protects from contamination.
- High moment stiffness supports heavy offset loads across full travel.
- Optional integrated power-off brake holds payloads securely in vertical applications.
- Controller Integration & Motion Control
- Designed and optimized for the MCC motor controller, enabling closed-loop control, force sensing, and high-precision homing.
- AutoDetect configures motor parameters, encoder settings, and servo loop tuning automatically on the MCC controller — reducing setup time and eliminating manual entry errors.
- Ideal for applications that require:
- High dynamic performance: Accelerating heavy loads quickly with high thrust maintained at top.
- Stall & force protection: Active force measurement, collision detection or stall prevention.
- Low noise & thermal stability: Quiet operation and low heat generation for sensitive environments.
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Highest Speed | Highest Thrust | Load |
|---|---|---|---|---|---|---|
100 mm (3.937") | 1000 mm (39.37") | 45 µm (0.001772") | < 4 µm (< 0.000157") | 240 mm/s (9.449"/s) | 1440 N (322.9 lb) | 2940 N (659.3 lb) |
