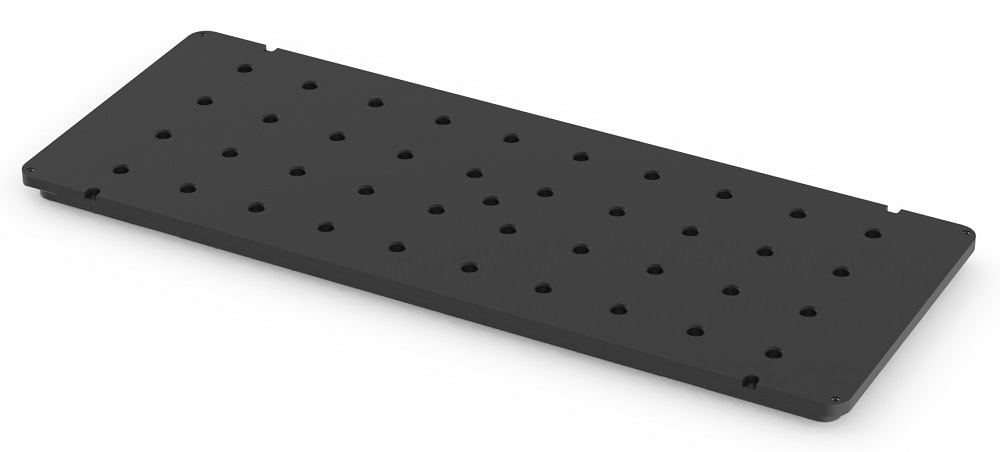

ADR250 Insert, Metric Breadboard

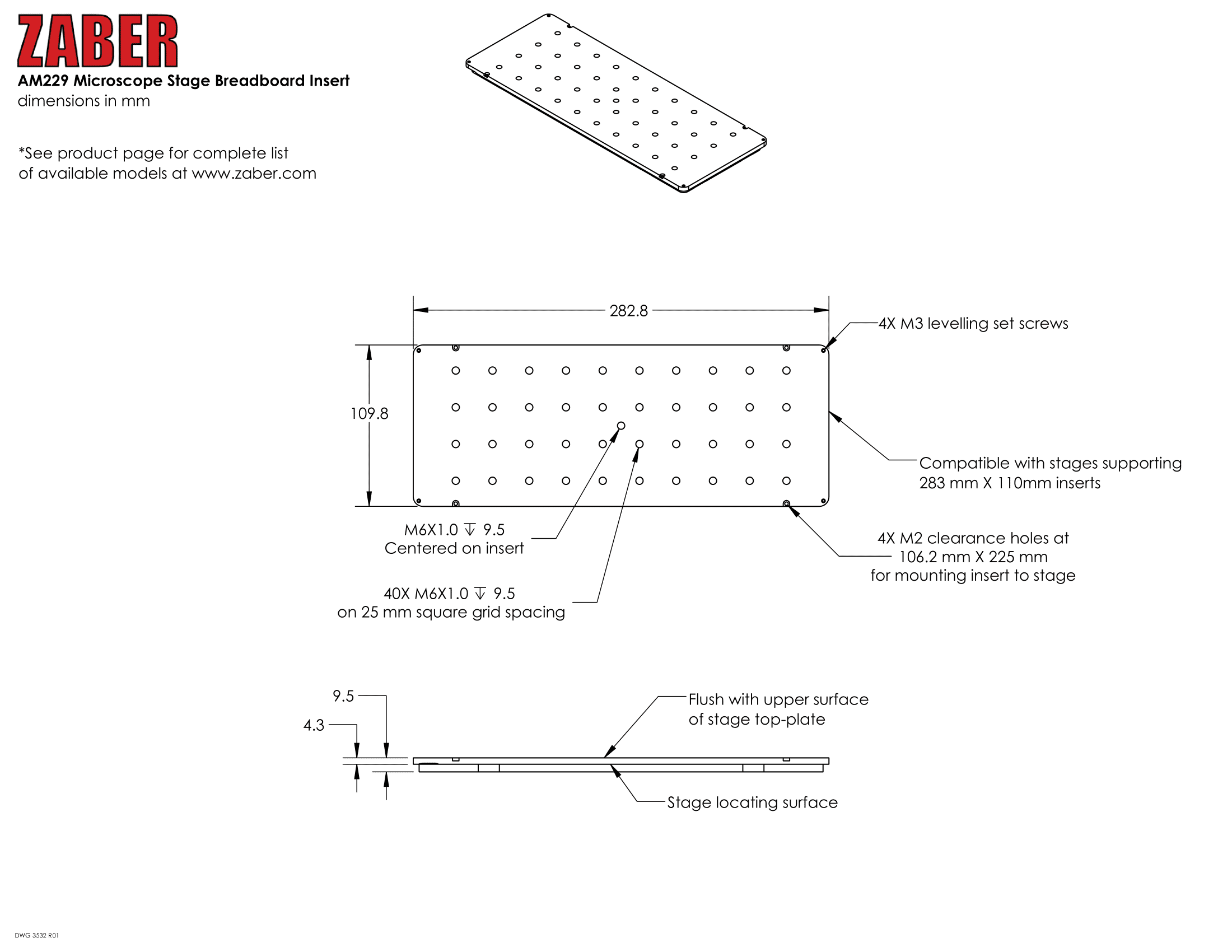

This 283 x 110 mm insert fits into the top plate of the ADR 250 x 100 mm travel XY stages. It is held in place by a spring clip or optional magnets on the stage allowing quick changes between different inserts. The insert can also be secured to the stage with 4 M2 screws (included). The AM229 features a grid of M6 tapped holes on 25 mm spacing to allow the easy mounting of other Zaber devices or other accessories.
