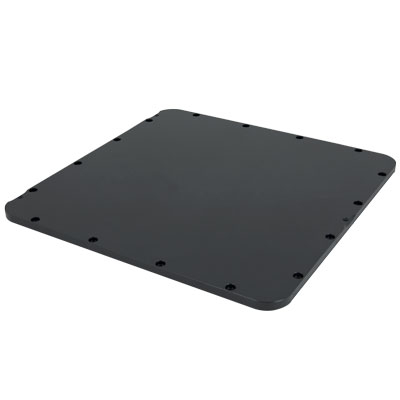

ASR205 Insert, Solid Aluminum

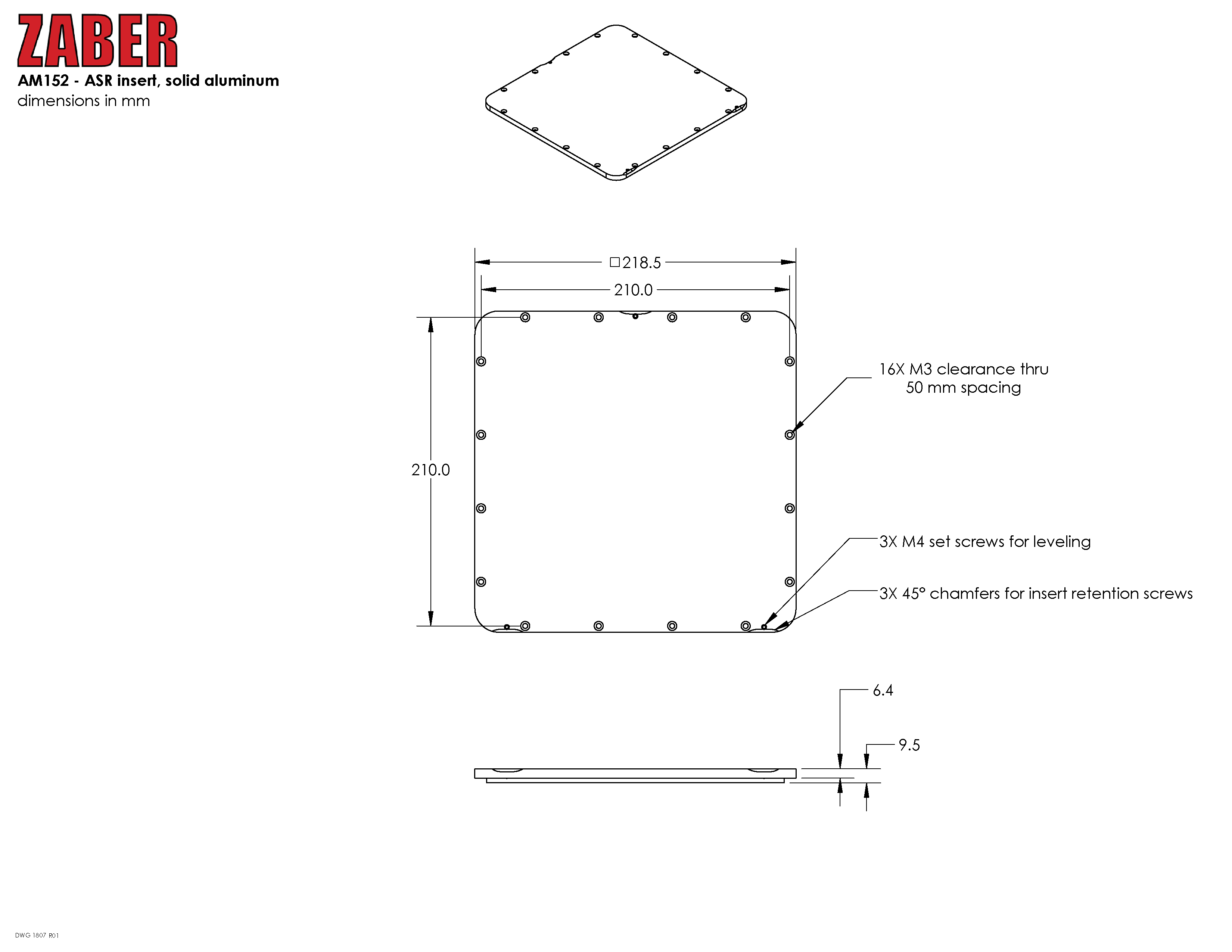

This 219 x 219 mm insert fits into the top plate of the ASR and ASR-E 205 x 205 mm travel XY stages. It is held in place by 3 flat head screws and can be leveled using adjustable set screws. Optionally, 16 M3 socket head cap screws can be used to attach the insert for high load applications. The flat, cast aluminium surface can be drilled, tapped or otherwise modified as needed.
