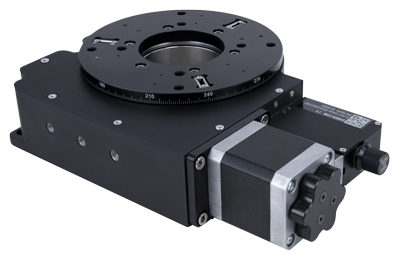

Custom X-RST-DE with Manual Knob

This custom X-RST-DE rotary stage uses a dual shaft motor with a knob for manual control of the stage. The X-RST-DE gear requires a lot of force to rotate, so a larger knob requiring less torque from the user was added. The knob can be used when the stage is powered on or off. Since this stage has a direct encoder, the controller keeps track of the stage position if the manual knob is used to rotate the stage, even when it's powered.

Our product customization team is able to complete most customizations within a two-week period. Contact us with your requests.
