LC40 - XY Dual Motor Quad Carriage Gantry Configurator
This LC40 T-slot gantry kit delivers fast, reliable 2-axis motion with a quad-carriage design for superior load capacity and stability. Built from three standard belt-drive LC40 stages, this modular platform assembles easily and integrates seamlessly with most 40 mm extrusion framing systems.
Zaber application engineers are here to help with:
- choosing an appropriate end effector for your Zaber gantry
- integrating your chosen end-effector with a Zaber gantry
- quoting a custom Zaber end-effector
Tell us about your needs and an engineer will contact you in 1 business day.
Affordable, High Speed XY & XYZ Gantry System
The Zaber LC40 Gantry System is a modular XY or XYZ motion platform built from 3-5 LC40 linear guides and 2-4 NMS23 motors. It offers: Axis Lengths: 100 mm to 3500 mm, Top Speed: Up to 3 m/s, Repeatability: as low as 40 µm, Payload capacity: up to 200 kg,
Have a Question? Need a Customization?
Response time promise: 1 business day
LC40 - XY Dual Motor Quad Carriage Gantry Configurator
This LC40 T-slot gantry kit delivers fast, reliable 2-axis motion with a quad-carriage design for superior load capacity and stability. Built from three standard belt-drive LC40 stages, this modular platform assembles easily and integrates seamlessly with most 40 mm extrusion framing systems.
Total: $10,724

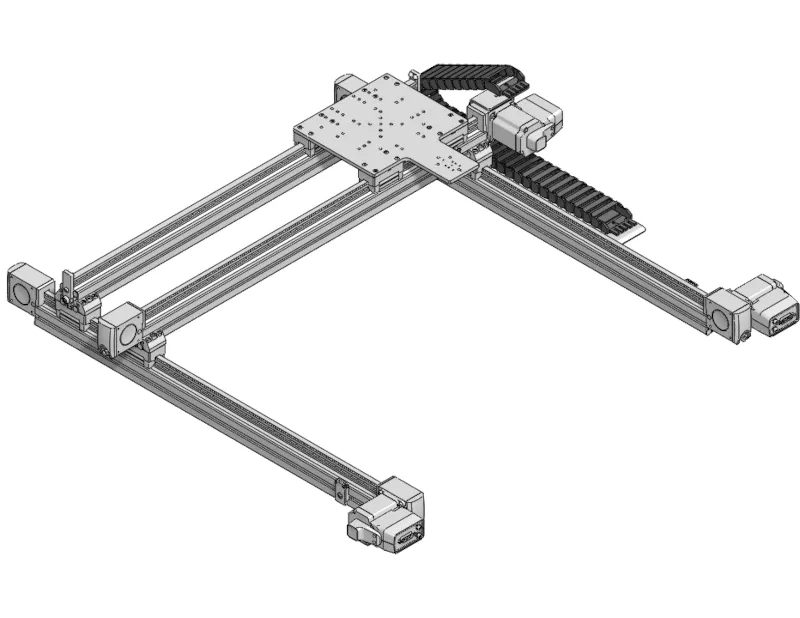

Representative image (500 X 500 mm travel shown).
