X-MCC Series

Multi-axis universal motor controllers

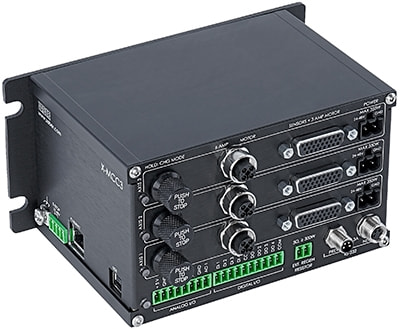

Photo of the X-MCC3

Image is representative of the X-MCC Series and may not match the selected variant.

X-MCC3

3 Axis

Starting Price: $2,158

Standard Leadtime: 1-5 Days

See all models
Add KX15B accessory kit  (+ $222)

North America, 48 V. Powers multiple axes

  • 1 x PS15S-48V65: Power Supply, 48 V 6.5 A
  • 1 x U-DC06: Data Cable, 6 ft, USB A to B Connector
  • 1 x X-DC02: Data Cable, 2 ft (0.6 m), X-Series Products

Total Price

$2,375 (USD) *

Add KX14B accessory kit  (+ $136)

North America, 48 V. Powers multiple axes

  • 1 x PS14S-48V37: Power Supply, 48 V 3.75 A
  • 1 x U-DC06: Data Cable, 6 ft, USB A to B Connector
  • 1 x X-DC02: Data Cable, 2 ft (0.6 m), X-Series Products

Total Price

$2,289 (USD) *

Add KX12B accessory kit  (+ $75)

North America, 24 V. Powers multiple axes

  • 1 x PS12S-24V30: Power Supply, 24 V 3.0 A
  • 1 x U-DC06: Data Cable, 6 ft, USB A to B Connector
  • 1 x X-DC02: Data Cable, 2 ft (0.6 m), X-Series Products

Total Price

$2,228 (USD) *

Add KX13B accessory kit  (+ $62)

North America, 48 V. Powers one axis

  • 1 x PS13S-48V12: Power Supply, 48 V 1.25 A
  • 1 x U-DC06: Data Cable, 6 ft, USB A to B Connector
  • 1 x X-DC02: Data Cable, 2 ft (0.6 m), X-Series Products

Total Price

$2,215 (USD) *

Add PTB2 accessory  (+ $5)

Power Supply Not Included

  • 1 x PTB2: Power Terminal Block, 2 Pin, 5 mm Pitch, for Custom Power Supply

Total Price

$2,158 (USD) *

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.

X-MCC3 Specifications

Datasheet DownloadDownload Datasheet
AutoDetectYes Icon
Communication Interface RS-232, USB 2.0, Ethernet (10/100 Mbit/s)
Communication Protocol Zaber ASCII (Default), Zaber Binary
Data Cable Connection Locking 4-pin M8, USB-B
Power Supply 24-48 VDC
Power Plug 5.0 mm screw terminal
Maximum Current Draw Motor and supply voltage dependent mA
Controller Maximum Current Per Phase 6 Arms (10 A peak)
Motor Connection D-Sub 26 female
Manual Control Indexed knobs with push switches
Axes of Motion 3
Limit Sensors per Axis 3
Isolated Digital Input 4
Isolated Digital Output 4
Analog Input 4
Analog Input Range 0-10 V
Analog Input Resolution 1 mV
Analog Output 1
Analog Output Range 0-10 V
Analog Output Resolution 2.5 mV
Analog Output Impedance 100 Ω
External Regen Resistor 5 Ω, 300 W
E-Stop Input Range 12-48 V
2D Primitives Supported Lines, Arcs, Circles, and Helices
Operating Temperature Range 0 to 50 °C
CE CompliantYes Icon
Vacuum CompatibleNo Icon
Weight 0.9 kg (1.984 lb)
Encoder Output Axes 0
Encoder Output Type NA
