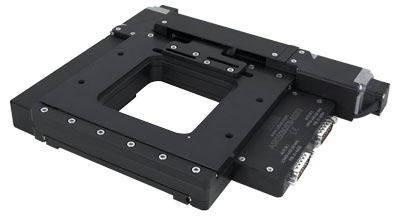

ASR-E Series
Closed-loop motorized XY scanning stages with built-in motor encoders
- 50 mm up to 305 mm travel per axis
- Up to 12 µm accuracy; 2 µm repeatability; 85 mm/s speed
- Easily adjustable non-contact hall sensor limit switches
- Designed for use with an X-MCC2 Series stepper motor controller or any 2-phase stepper motor controller
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
- Custom versions available
Part Numbering & Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart |
|---|---|---|---|---|
| ASR050B050B-E03T3A | 50 mm X 50 mm Travel | 1-5 Days | $5,577 | |
| ASR100B120B-E03T3A | 100 mm X 120 mm Travel | 1-5 Days | $6,395 | |
| ASR205B205B-E03T3A | 205 mm X 205 mm Travel | 1-5 Days | $8,049 | |
| ASR305B305B-E03T3A | 305 mm X 305 mm Travel | 1-5 Days | $9,290 |
Compatible Accessories
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
