X-LDM-AE Series

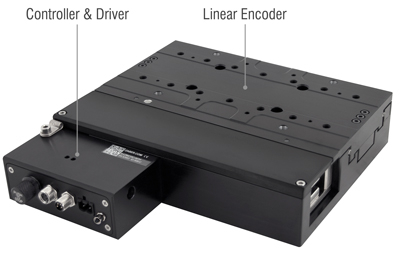

Ultra precision linear motor stages with built-in controllers and linear encoders
- 60, 110, 210 mm travel options
- Up to 1.2 m/s speed and up to 3.5 g acceleration
- High repeatability (80 nm) and accuracy (1 µm), with 25 nm minimum incremental move
- Direct position measurement from 1 nm resolution linear encoder
- Non-contact ironless linear motor for high dynamic performance & reliability
- Built-in controller; daisy-chains with other Zaber products
- Digital IO for interfacing with external hardware
Have a Question?
Part Numbering & Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| X-LDM060C-AE54D12 | 60 mm Travel | 4-7 Days | $8,413 | ||
| X-LDM110C-AE54D12 | 110 mm Travel | 4-7 Days | $9,255 | ||
| X-LDM210C-AE54D12 | 210 mm Travel | 4-7 Days after Aug. 07 | $10,615 |
Compatible Accessories
- All LDMs share mounting patterns and can be screwed together directly.
- Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here LDM Adaptor Plates.
- Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here LDM Angle Brackets.
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AB255 | Angle bracket, 90 degrees, metric, LDM | 1-5 Days | $425 | |
| AP257 | Adaptor Plate, M6 Grid to Metric Mounting | 1-5 days | $162 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
