X-LDM-AE Series
Ultra precision linear motor stages with built-in controllers and linear encoders

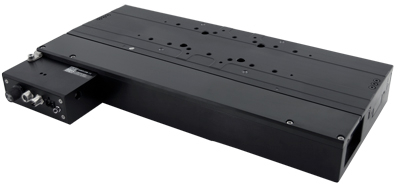

Image is representative of the X-LDM-AE Series and may not match the selected variant.
X-LDM210C-AE54D12
210 mm Travel
Starting Price: $10,615
Standard Lead Time: 4-7 Days
Purchase Options
Add KX15A accessory kit (+ $261)
North America, 48 V. Powers multiple axes
- 1 x PS15S-48V65: Power Supply, 48 V 6.5 A
- 1 x X-DC02: Data Cable, 2 ft (0.6 m), X-Series Products
- 1 x X-USBDC: USB to Serial Converter Cable, M8 Female Plug, X-Series Products
Total Price
$10,871 (USD) *
Add KX14A accessory kit (+ $173)
North America, 48 V. Powers multiple axes
- 1 x PS14S-48V37: Power Supply, 48 V 3.75 A
- 1 x X-DC02: Data Cable, 2 ft (0.6 m), X-Series Products
- 1 x X-USBDC: USB to Serial Converter Cable, M8 Female Plug, X-Series Products
Total Price
$10,783 (USD) *
Add PTB2 accessory (+ $5)
Power Supply Not Included
- 1 x PTB2: Power Terminal Block, 2 Pin, 5 mm Pitch, for Custom Power Supply
Total Price
$10,615 (USD) *
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
X-LDM210C-AE54D12 Specifications
| Built-in Controller |  |
| Travel Range | 210 mm (8.268") |
| Accuracy (unidirectional) | 1 µm (0.000039") |
| Repeatability | < 0.08 µm (< 0.000003") |
| Minimum Incremental Move | 25 nm |
| Maximum Acceleration | 14.7 m/s2 (1.50 g) |
| Maximum Speed | 1200 mm/s (47.244"/s) |
| Minimum Speed | 0.61 nm/s |
| Speed Resolution | 0.61 nm/s |
| Encoder Type | Linear analog encoder |
| Encoder Count Size | 1 nm |
| Peak Thrust | 60 N (13.5 lb) |
| Maximum Continuous Thrust | 35 N (7.8 lb) |
| Communication Interface | RS-232 |
| Communication Protocol | Zaber ASCII (Default) |
| Data Cable Connection | Locking 4-pin M8 |
| Maximum Centered Load | 185 N (41.5 lb) |
| Maximum Moment (Pitch) | 1200 N⋅cm (1699.3 oz⋅in) |
| Maximum Moment (Roll) | 1200 N⋅cm (1699.3 oz⋅in) |
| Maximum Moment (Yaw) | 1200 N⋅cm (1699.3 oz⋅in) |
| Vertical Runout | < 8 µm (< 0.000315") |
| Horizontal Runout | < 5 µm (< 0.000197") |
| Typical Velocity Stability | ± 0.11% at 100 mm/s with a 1.0 kg payload |
| Pitch | 0.01° (0.174 mrad) |
| Roll | 0.005° (0.087 mrad) |
| Yaw | 0.005° (0.087 mrad) |
| Power Supply | 48 VDC |
| Power Plug | 2-pin screw terminal |
| Maximum Current Draw | 3000 mA |
| Motor Type | Moving Magnet Track Linear Motor |
| Force Constant | 15.8 N/A (3.5 lbs/A) |
| Guide Type | Crossed-Roller Bearing |
| Limit or Home Sensing | Optical Index Mark |
| Manual Control | Indexed knob with push switch |
| Axes of Motion | 1 |
| LED Indicators | |
| Mounting Interface | M6 threaded holes |
| Moving Mass | 3.17 kg (6.974 lbs) |
| Digital Input | 1 |
| Digital Output | 2 |
| Operating Temperature Range | 10 to 40 °C |
| CE Compliant | |
| Vacuum Compatible |  |
| Weight | 6.60 kg (14.550 lb) |
