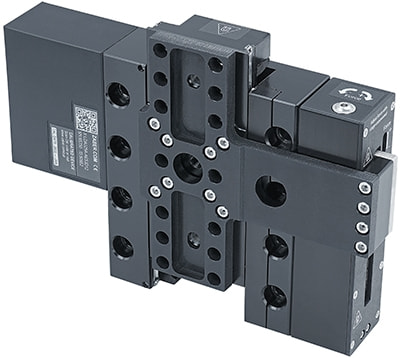

LDA-AEZ Series
High precision vertical stages
- 20 mm or 25 mm travel
- Passive, user adjustable magnetic counterbalance for payloads up to 16 N
- High repeatability (200 nm) and accuracy (1.5 µm), with 12 nm minimum incremental move
- Direct position measurement from 1 nm resolution linear encoder
- Up to 0.7 m/s speed and up to 2.5 g acceleration
- Non-contact ironless linear motor for high precision, high dynamic performance & reliability
- Designed for use with an X-MCC Series controller for coordinated multi-axis motion
- With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral
- Learn more: Magnetic Counterbalances for High Performance Vertical Stages
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
Part Numbering & Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart |
|---|---|---|---|---|
| LDA020A-AE53ZJ2T10A | 20 mm Travel | Medium Force Adjustable Counterbalance | 5-10 Days | $7,527 | |
| LDA025A-AE53ZJ1T10A | 25 mm Travel | Low Force Adjustable Counterbalance | 5-10 Days | $7,527 |
Compatible Accessories
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
