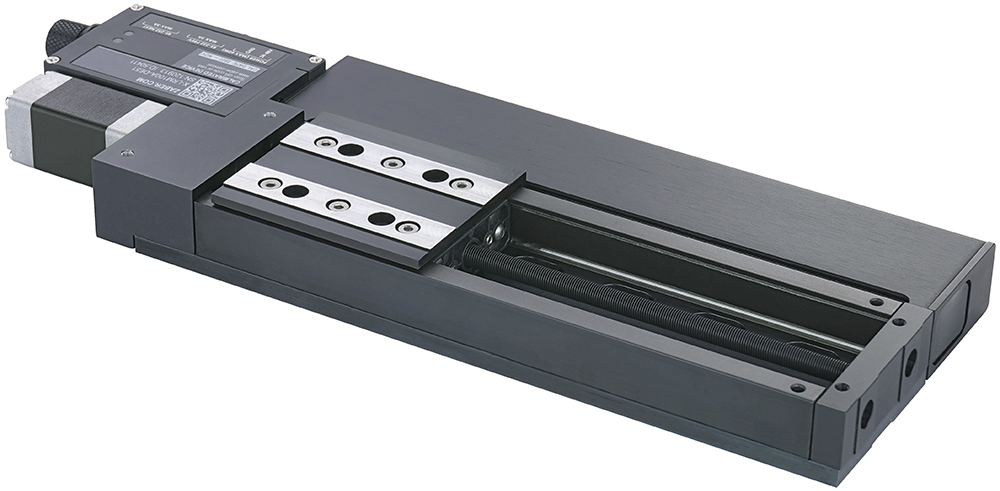

X-LRM-DE Series

Name: X-LRM-DE Miniature, Steel, Motorized Linear Stages, Built-in Controllers & Linear Encoders
Brand: Zaber
SKU: X-LRM-DE
Availability: InStock

Miniature, steel, motorized linear stages with built-in controllers and linear encoders

100, 150, 200 mm travel
15 µm accuracy over 200 mm
50 kg load capacity
Hardened steel construction and recirculating ball bearing guide provide exceptional stiffness and thermal stability
Integrated linear encoders with 50 nm resolution provide slip/stall detection and position correction
Built-in controller, daisy chains with other Zaber products

Have a Question?

Response time promise: 1 business day

Have a Question?

Part Numbering & Options

Part Number	Description	Lead Time	Starting Prices (USD) *
X-LRM025A-DE51	Fine Resolution	Discontinued	$4,623
X-LRM025B-DE51	Medium Resolution	Discontinued	$4,623
X-LRM050A-DE51	Fine Resolution	Discontinued	$5,100
X-LRM050B-DE51	Medium Resolution	Discontinued	$5,100
X-LRM100A-DE51	100 mm Travel \| Fine Resolution	4-7 Days	$5,576
X-LRM100B-DE51	100 mm Travel \| Medium Resolution	4-7 Days	$5,576
X-LRM150A-DE51	150 mm Travel \| Fine Resolution	4-7 Days	$6,055
X-LRM150B-DE51	150 mm Travel \| Medium Resolution	4-7 Days	$6,055
X-LRM200A-DE51	200 mm Travel \| Fine Resolution	4-7 Days	$6,530
X-LRM200B-DE51	200 mm Travel \| Medium Resolution	4-7 Days	$6,530

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
T-XDC	X-Series to A-Series / T-Series Adaptor Cable	1-5 Days	$18
X-DC06	Data Cable, 6 ft (2 m), X-Series Products	1-5 Days	$24
X-DC15	Data Cable, 15 ft (4.5 m), X-Series Products	1-5 Days	$42
X-DC25	Data Cable, 25 ft (7.6 m), X-Series Products	1-5 Days	$47
X-SDC	Serial Adaptor Cable, M8 Female Plug, X-Series Products	1-5 Days	$19
X-TDC	A-Series / T-Series to X-Series Adaptor Cable	1-5 Days	$19
X-USBDC	USB to Serial Converter Cable, M8 Female Plug, X-Series Products	1-5 Days	$46

All LRMs share mounting patterns and can be screwed together directly.
Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here LRM Adaptor Plates.
Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here LRM Angle Brackets.

Accessory	Description	Lead Time	Price (USD) *	Add to Cart
AB104	Angle Bracket, 90 Degrees, Large, Metric	1-5 Days	$194
AP102C	LRM and LSM Metric Top Adaptor Plate	1-5 Days	$97

Accessory	Description	Lead Time	Price (USD) *
PS12S-24V30	Power Supply, 24 V 3.0 A	1-5 Days	$50
PS13S-48V12	Power Supply, 48 V 1.25 A	1-5 Days	$37
PS14S-48V37	Power Supply, 48 V 3.75 A	1-5 Days	$112

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
