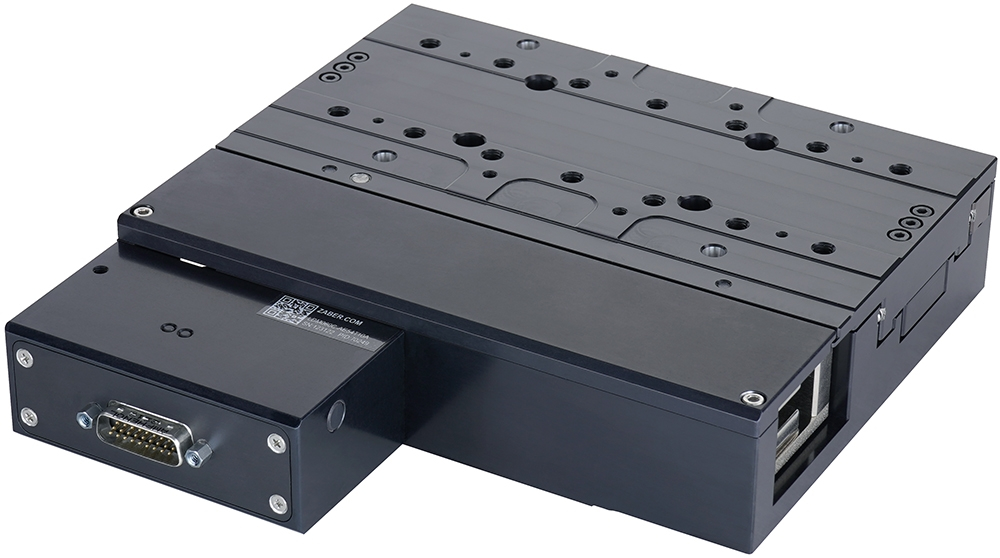

LDM-AE Series
Ultra precision linear motor stages with built-in linear encoders
- 60, 110, 210 mm travel options
- Up to 1.2 m/s speed and up to 3.5 g acceleration
- High repeatability (80 nm) and accuracy (1 µm), with 4 nm minimum incremental move
- Direct position measurement from 1 nm resolution linear encoder
- Non-contact ironless linear motor for high dynamic performance & reliability
- Designed for use with MCC controllers for coordinated multi-axis motion
- With AutoDetect, Zaber controllers automatically configure settings for the connected peripheral
Have a Question?
Part Numbering & Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| LDM060C-AE54T10A | 60 mm Travel | 4-7 Days | $7,650 | ||
| LDM110C-AE54T10A | 110 mm Travel | 4-7 Days | $8,467 | ||
| LDM210C-AE54T10A | 210 mm Travel | 4-7 Days after Aug. 07 | $9,830 |
Compatible Accessories
- All LDMs share mounting patterns and can be screwed together directly.
- Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here LDM Adaptor Plates.
- Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here LDM Angle Brackets.
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AB255 | Angle bracket, 90 degrees, metric, LDM | 1-5 Days | $425 | |
| AP257 | Adaptor Plate, M6 Grid to Metric Mounting | 1-5 days | $162 |
