X-GSM-SV2 Series

High vacuum motorized goniometers with built-in controllers

About This Series

For more information about the basics of a vacuum system and considerations to keep in mind when gathering requirements for your application, read our technical article, "Motion Device Design Considerations for Vacuum Applications".

Zaber's X-GSM-SV2 Series devices are high-vacuum compatible, computer-controlled, motorized goniometers with a compact size and built-in controller. They are stand-alone units requiring only a standard 24 V or 48 V power supply.

These stages connect to the RS-232 port or USB port of any computer, and they can be daisy-chained with any other Zaber products. The daisy-chain also shares power, making it possible for multiple X-Series products to share a single power supply.

Like all of Zaber's products, the X-GSM-SV2 Series is designed to be 'plug and play' and very easy to set up and operate. If you are considering a multi-axis system, in the XY configuration, these stages are designed to stack with mounting alignment features in the stage top and base.

Default image for https://www.zaber.com/products/vacuum-compatible-stages/X-GSM-SV2/features

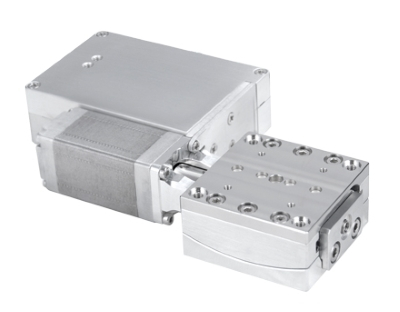

1 2 3 4 5 6 7 8 9 10
  1. 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
  2. Integrated stepper motor controller and motor driver allows for easy-to-use control.
  3. Only 4 feedthrough wires required to control all units in the daisy-chain via serial port (with an X-PIB adaptor).
  4. Daisy-chain additional units to reduce wiring clutter. Power and data can be shared in the chain.
  5. High vacuum compatible stepper motors rated to 10-6 Torr.
  6. 40 mm and 60 mm centre of rotation options allow for two axes of motion about a common centre of rotation.
  7. Crossed roller bearings for smooth motion and high stiffness.
  8. The interlocking alignment system makes it easy to stack two stages.
  9. M2 (20 mm pattern) and M3 (32 mm pattern) mounting holes provided.
  10. Low profile, small footprint.

Easy Set-Up

Control and Power Multiple Devices With Only Four Feedthrough Wires

  1. Connect data and power cables between computer and vacuum chamber.
  2. Devices with built-in controllers receive power and data in the vacuum chamber via 4 feedthrough wires*.
  3. Send instructions or automate your set-up using the Zaber Launcher.
Photo instructions of Daisy-Chaining Vacuum Devices

* For X-Series devices, power is injected via the X-PIB. T-Series devices require 5 feedthrough wires and the T-DSUB9-P for power injection.

For more details on setting up vacuum devices, read our technical article, "Motion Device Design Considerations for Vacuum Applications".

For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
