X-NMS-E Series
Stepper motors with built-in controllers, motor encoders, and optional brakes

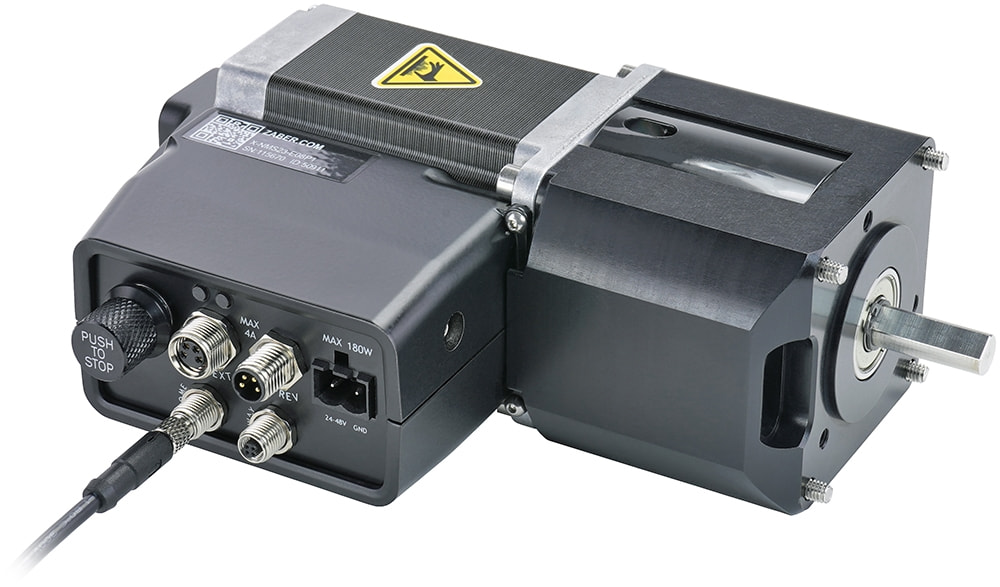

Image is representative of the X-NMS-E Series and may not match the selected variant.
X-NMS23-BE08P1
NEMA Size 23 | For LC40B And LC40C Guides
Starting Price: $1,590
Standard Lead Time: 1-5 Days
Purchase Options
Add KX15N accessory kit (+ $274)
North America, 48 V.
Powers multiple axes
- 1 x PS15S-48V65: Power Supply, 48 V 6.5 A
- 1 x X-DC02: Data Cable, 2 ft (0.6 m), X-Series Products
- 1 x X-DC02-NP: Data Cable, 2 ft (0.6 m), No Power, X-Series Products
- 1 x X-USBDC: USB to Serial Converter Cable, M8 Female Plug, X-Series Products
Total Price
$1,859 (USD) *
Add KX14N accessory kit (+ $188)
North America, 48 V.
Powers multiple axes
- 1 x PS14S-48V37: Power Supply, 48 V 3.75 A
- 1 x X-DC02: Data Cable, 2 ft (0.6 m), X-Series Products
- 1 x X-DC02-NP: Data Cable, 2 ft (0.6 m), No Power, X-Series Products
- 1 x X-USBDC: USB to Serial Converter Cable, M8 Female Plug, X-Series Products
Total Price
$1,773 (USD) *
Add PTB2 accessory (+ $5)
Power Supply Not Included
- 1 x PTB2: Power Terminal Block, 2 Pin, 5 mm Pitch, for Custom Power Supply
Total Price
$1,590 (USD) *
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
X-NMS23-BE08P1 Specifications
| Microstep Size (Default Resolution) | 0.028125° (490.866 µrad) |
| Built-in Controller |  |
| Accuracy (unidirectional) | 0.25° (4.362500 mrad) |
| Repeatability | < 0.1° (< 1.745 mrad) |
| Maximum Speed | 18000°/s (3000 rpm) |
| Minimum Speed | 0.017172°/s (299.703 µrad/s) |
| Speed Resolution | 0.017172°/s (299.703 µrad/s) |
| Encoder Resolution | 400 CPR (1600 states/rev) |
| Encoder Type | Rotary quadrature encoder |
| Communication Interface | RS-232 |
| Communication Protocol | Zaber ASCII (Default), Zaber Binary |
| Data Cable Connection | Locking 4-pin M8 |
| Maximum Torque | 180 N⋅cm (254.9 oz⋅in) |
| Maximum Brake Torque | 150 N⋅cm (212.4 oz⋅in) |
| Power Supply | 24-48 VDC |
| Power Plug | 2-pin Screw Terminal |
| Maximum Current Draw | 3500 mA |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 3000 mA/phase |
| Default Resolution | 1/64 of a step |
| Motor Frame Size | NEMA 23 |
| LED Indicators | |
| Mounting Interface | 4.5 mm thru holes |
| Operating Temperature Range | 0 to 50 °C |
| CE Compliant | |
| Vacuum Compatible |  |
| Weight | 1.926 kg (4.246 lb) |
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum torque).
