X-NMS-E Series
Stepper motors with built-in controllers, motor encoders, and optional brakes
About This Series

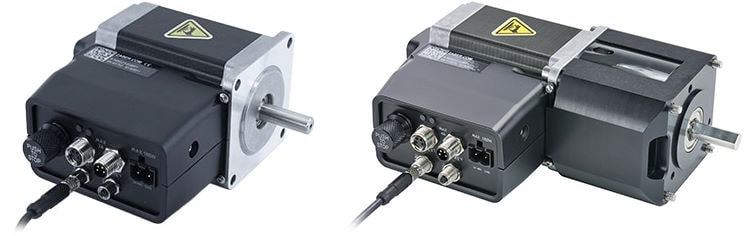

These NEMA size 17 and 23 stepper motors have built-in controllers and encoders for stall detection and recovery. A detachable home sensor HS02 and magnet are included. An additional HS02L150 Hall effect sensor can be purchased to function as an away sensor. These motors are standalone units requiring only a standard 24 V or 48 V power supply.
An indexed knob provides convenient manual control for versatile operation even without a computer. The motors connect to the USB 2.0 or RS-232 port of any computer and can be daisy-chained with any other Zaber products. Convenient locking, 4-pin, M8 connectors on the unit allow for secure connection between units. An optional power-off brake is available on NEMA 23 sized steppers to secure the payload across power cycles. The chain also shares power, so multiple X-Series products can use a single power supply.

- An indexed knob provides convenient manual control.
- Integrated motor encoder, stepper motor controller and motor driver allows for easy-to-use control with stall detection.
- The stepper motor is matched to the built-in controller; no need to adjust parameters.
- 200 step per revolution stepper motor, microstepped up to 256X to provide smooth and precise motion, with speed from 0.017°/s to 3000 rpm.
- Control all units in the daisy-chain via serial port (with a locking X-SDC cable) or USB (with an X-USBDC cable).
- Daisy-chain additional units with a locking X-DC02 cable or X-DC06 cable. Power can also be shared in the chain.
- Standard NEMA 17 or 23 mounting interface, easily adapted to your application.
- Magnetic home sensor can be mounted in a standard 4 mm T-slot or to any other surface with a screw to enable precision detection of home position.
- Optional second magnetic sensor (HS01L149) enables precision detection of away position.
- An optional power-off brake is available on NEMA 23 sized steppers to secure payload across power cycles.

Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day

Have a Question?
Easy Set-Up
Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the Zaber device to your computer via USB or RS-232 port.
- Connect the power supply to your Zaber device.
- Send instructions or automate your set-up using the Zaber Launcher.

For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
