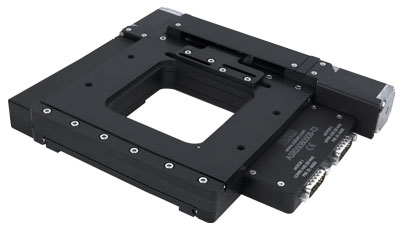

ASR Series
Motorized XY microscope stages
About This Series
Zaber's ASR series microscope stages combined with our X-MCC2 series multi-axis controllers are designed as replacements for manual stages on upright and inverted microscopes or for stand-alone operation as scanning stages. Set up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the ASR.
Mounting adaptors are available for breadboards and most common microscopes. Custom adaptors and plates are available upon request.

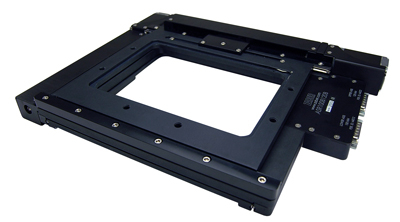

- Various adaptors allow mounting to most common microscope platforms and standard M6 breadboards.
- Quiet smooth operation at up to 85 mm/s.
- 50 x 50 mm to 305 x 305 mm of travel with 0.15 µm resolution.
- Standard aperture sizes allow you to choose from many different inserts to suit your application. See our accessories page for more information. Compatible accessories have part numbers that start with AM.
- Precision cast aluminum plate construction for excellent flatness and perpendicularity.
- Crossed roller bearings provide exceptionally smooth movement and virtually eliminate wear.
- Low profile: 42 mm overall height.
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
