Nucleus® HL04 Laser Autofocus Sensor

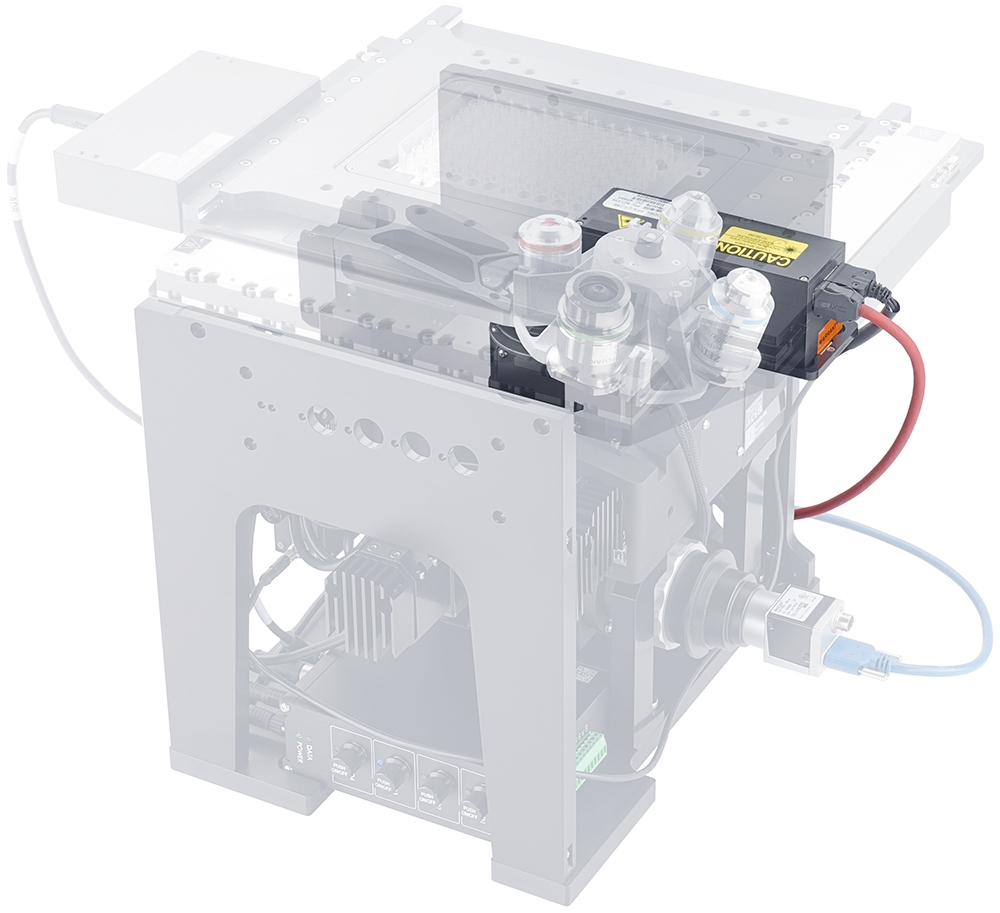

Image is representative of the HL04 Series and may not match the selected variant.
HL04
Laser Autofocus Sensor
Starting Price: $8,900
Standard Lead Time: 1-5 Days
Purchase Options
Stand-alone
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
HL04 Specifications
| Communication Interface | Ethernet, Analog Voltage Output |
| Power Supply | 10.8 - 26.4 VDC |
| Operating Temperature Range | 20 to 30 °C |
| CE Compliant |  |
| Weight | 0.8 kg (1.764 lb) |
| Focus Sensor Repeatability | 450 nm |
| Focus Time | 250 - 450 ms |
| Laser Wavelength | 785 nm |
| Optical Notch Filter Stop Band Width | 25 nm |
| Optical Notch Filter Wavelength | 785 nm |
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
Error

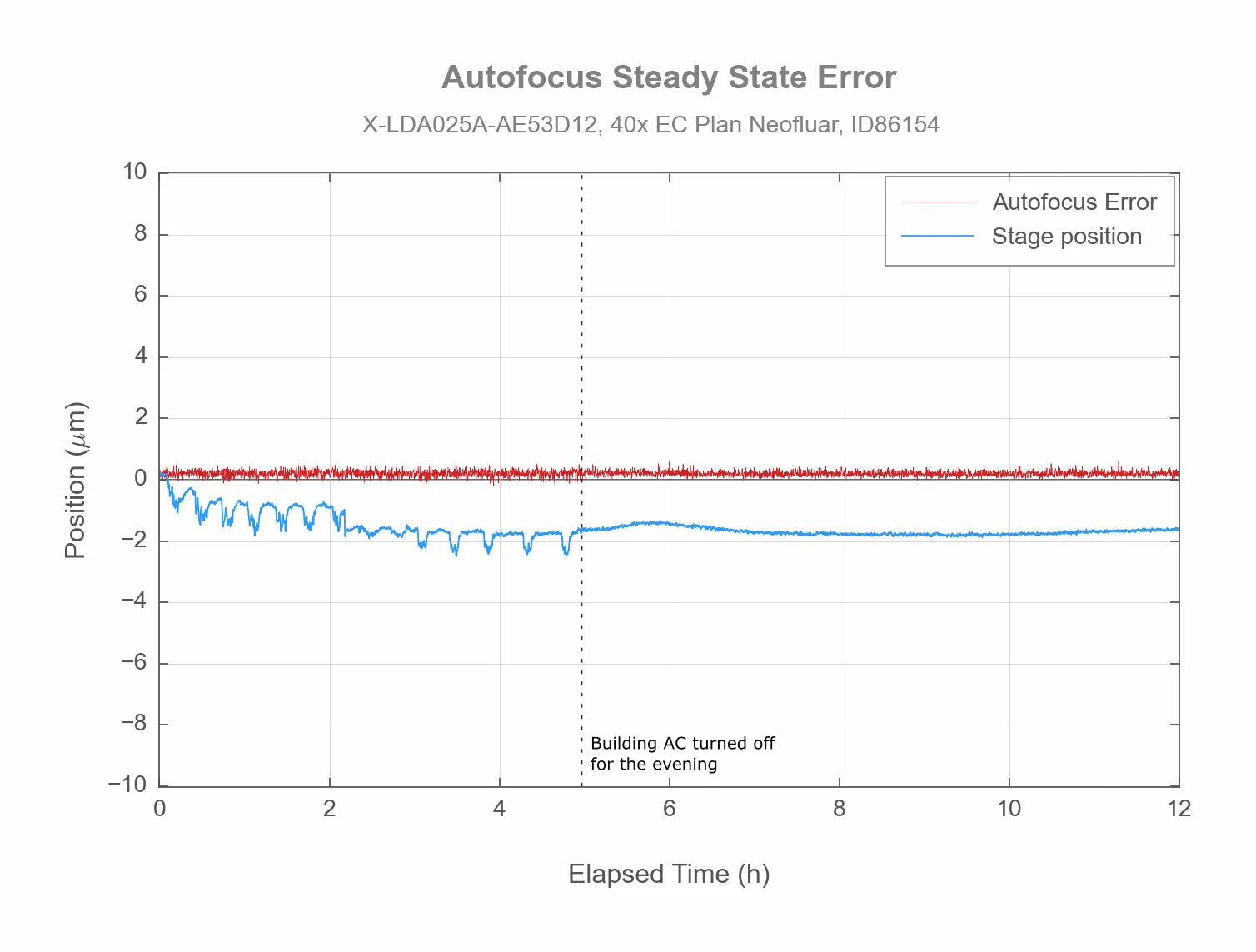

Long duration compensation for thermal drift on a Nucleus® microscope.
A Nucleus® microscope equipped with an HL04 laser autofocus module can effectively maintain focus despite thermal drift induced by changes in ambient temperature. The blue line tracks the position of the focus stage as it actively compensates for thermal drift caused by the air conditioning.

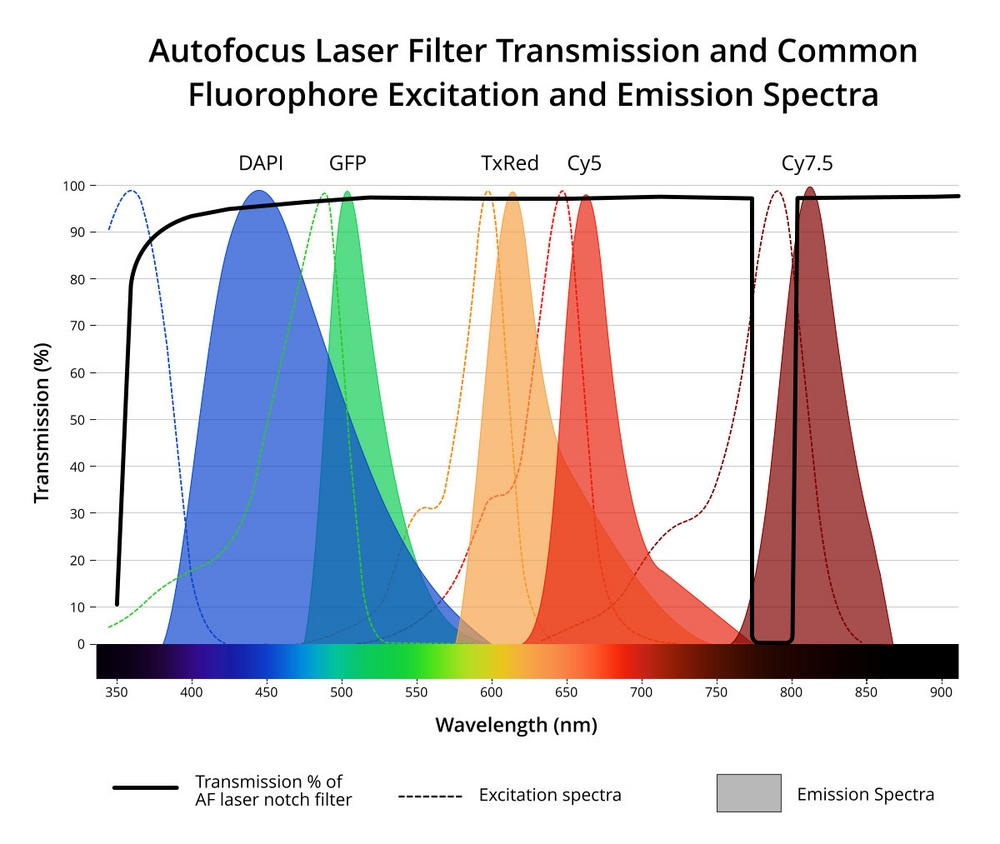

Transmission plot of 785 nm notch filter pre-installed in MJB25C-F1
Transmission plot of 785 nm notch filter pre-installed in the required MJB25C-F1 junction block. The notch filter will block key wavelengths for the Cy7 fluorophore, so Cy7.5 should be used instead.
