LC40B-KM02 Series
Belt-driven T-slot linear guides with stepper motors, for external controllers
Image is representative of the LC40B-KM02 Series and may not match the selected variant.
LC40B2950-N2-KM02
Dual Carriage | 2880 mm Max Travel
Starting Price: $3,053
Standard Lead Time: 3-7 Days
Purchase Options
Add KM02-MC10T3 accessory kit (+ $519)
Controller: X-MCC (48 V) Recommended
- 1 x NMS23-E08P1T3A: Stepper motor with encoder, home sensor, NEMA 23, for LC40B and LC40C guides
- 1 x AC183: LC40 Coupling, for 8 mm Shaft
- 1 x AP187: Limit Sensor Mount for 40 mm T-slots
- 1 x MC10T3: Motor Conversion Cable, 1.5 m, X-MCC Series Controllers and T3A/T4A/T11A Peripherals
Total Price
$3,053 (USD) *
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
LC40B2950-N2-KM02 Specifications
| Microstep Size (Default Resolution) | 7.03125 µm |
| Built-in Controller |  |
| Recommended Controller | X-MCC (48 V) Recommended |
| Travel Range | 2880 mm (113.386") |
| Accuracy (unidirectional) | 2335 µm (0.091929 ") |
| Repeatability | < 20 µm (< 0.000787") |
| Backlash | < 250 µm (< 0.009842") |
| Maximum Speed | 3000 mm/s (118.110"/s) |
| Encoder Resolution | 400 CPR (1600 states/rev) |
| Encoder Type | Rotary quadrature encoder |
| Peak Thrust | 90 N (20.2 lb) |
| Maximum Centered Load | 1000 N (224.3 lb) |
| Maximum Moment (Roll) | 6 N⋅m (Per carriage) (4.4 ft⋅lb) |
| Maximum Moment (Pitch) | 7 N⋅m (Per carriage) (5.2 ft⋅lb) |
| Maximum Moment (Yaw) | 7 N⋅m (Per carriage) (5.2 ft⋅lb) |
| Guide Type | Recirculating Ball Linear Guide |
| Linear Motion Per Motor Rev | 90 mm (3.543") |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 3000 mA/phase |
| Motor Frame Size | NEMA 23 |
| Mechanical Drive System | Synchronous belt |
| Limit or Home Sensing | Magnetic home sensor, optional away sensor |
| Axes of Motion | 1 |
| Operating Temperature Range | 0 to 50 °C |
| CE Compliant |  |
| Vacuum Compatible | |
| Weight | 8.51 kg (18.761 lb) |
Specification Charts & Notes

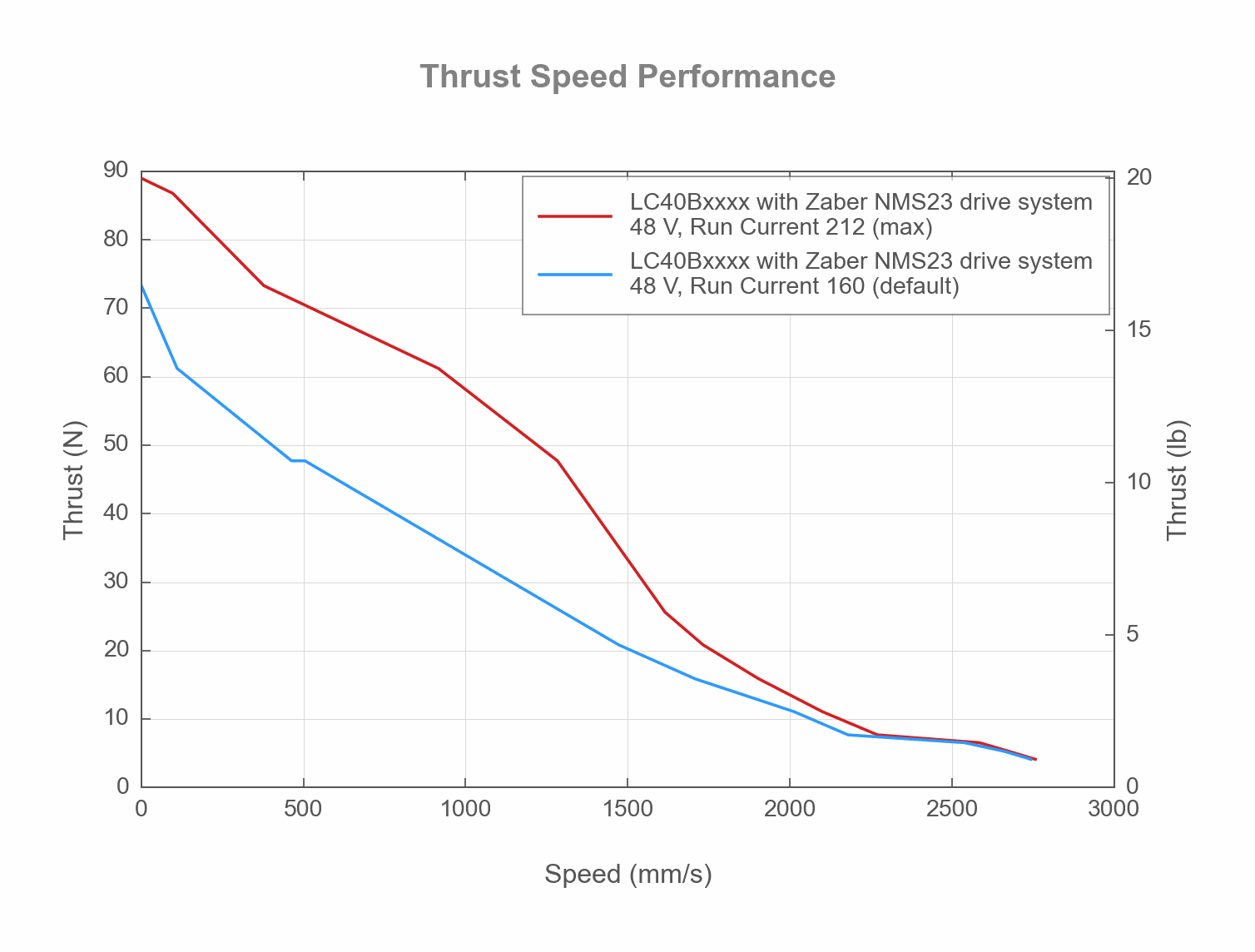

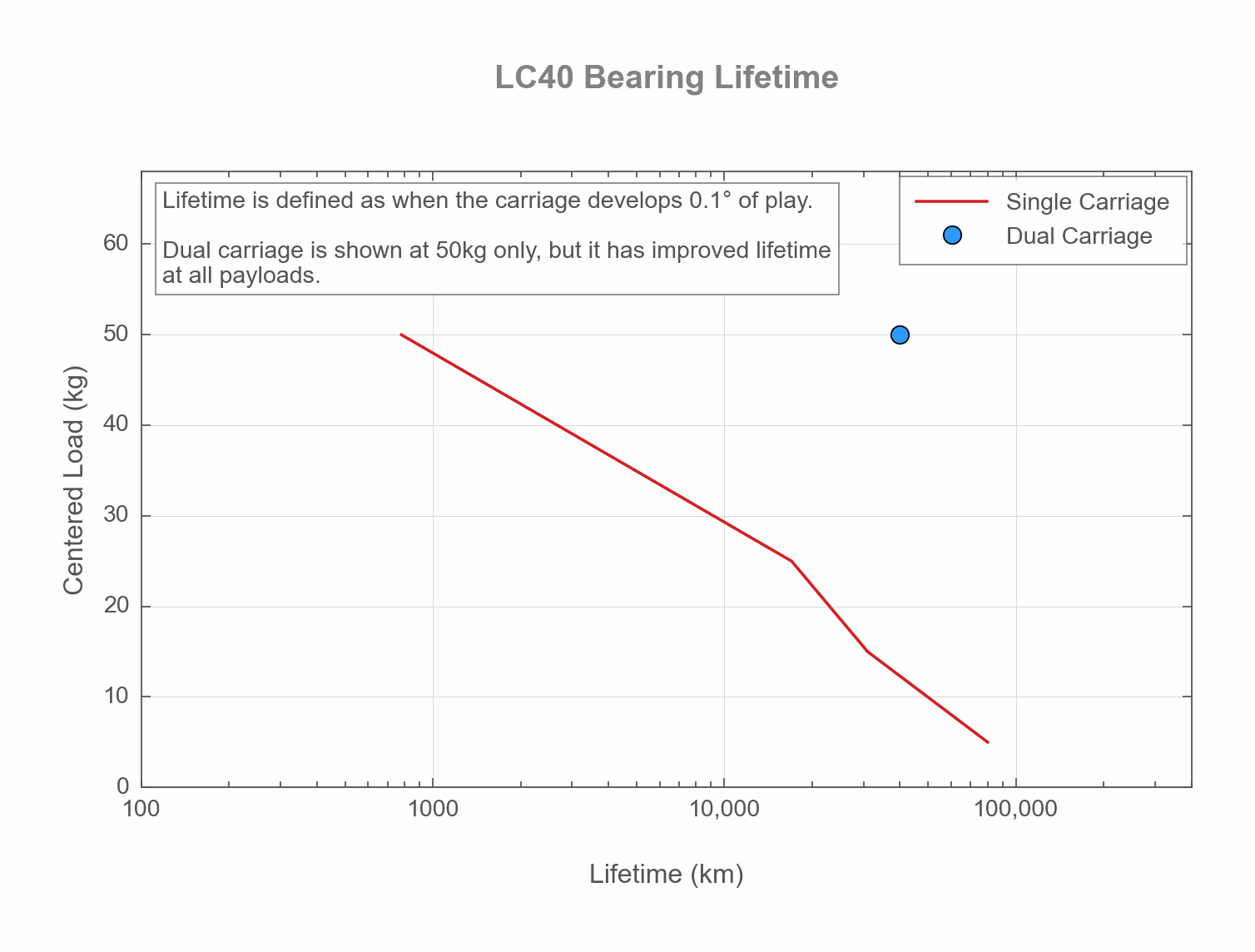

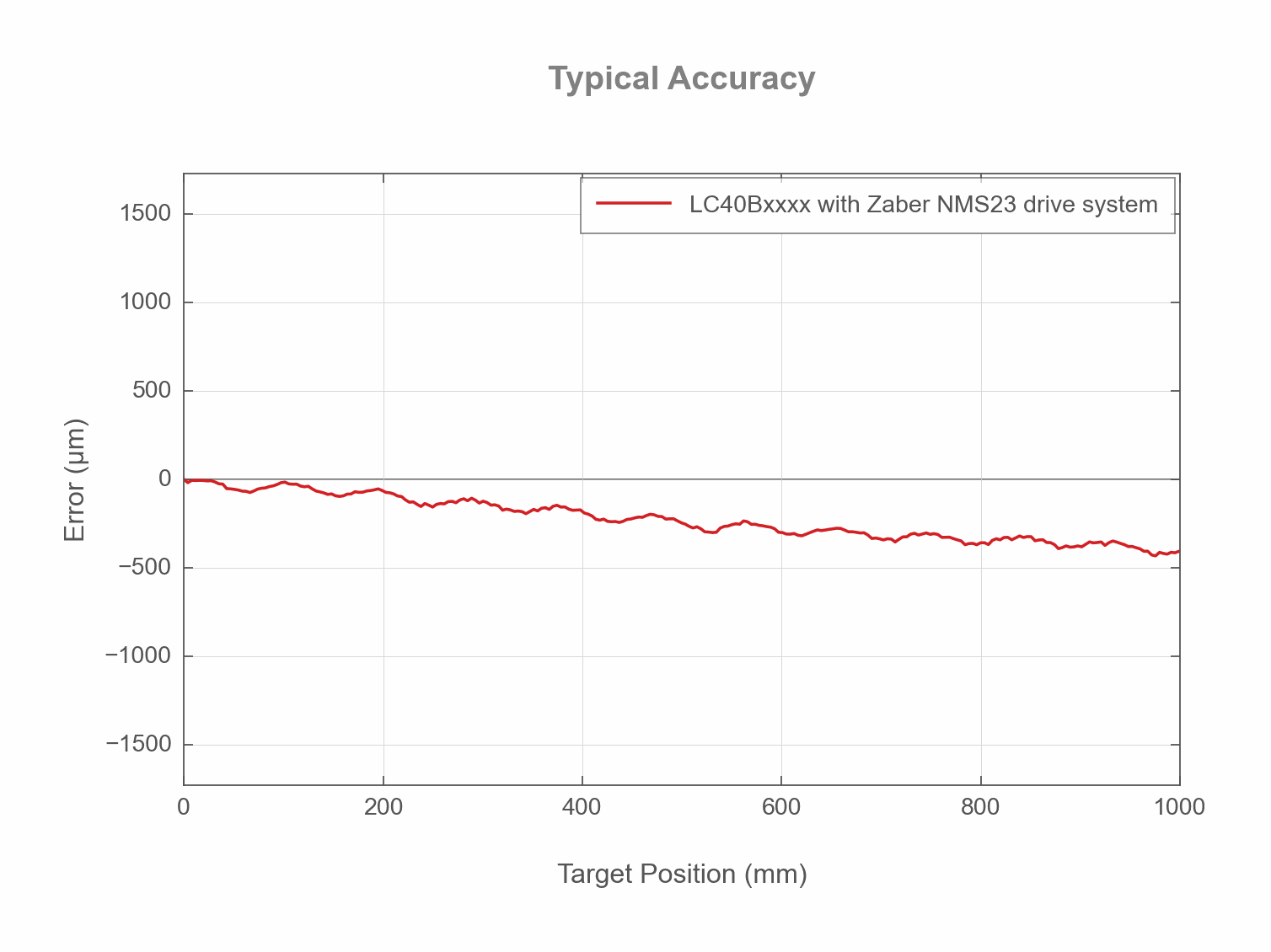

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
