NMS-E Series
Stepper motors with encoders and optional brakes

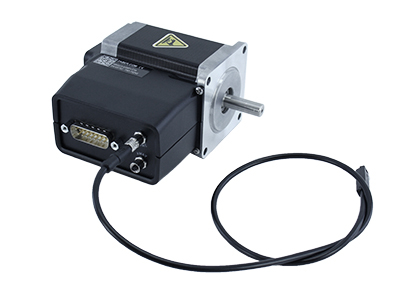

Image is representative of the NMS-E Series and may not match the selected variant.
NMS23-E08P1T3A
NEMA 23 | For LC40B And LC40C Guides
Starting Price: $422 *
Standard Lead Time: 1-5 Days
NMS23-E08P1T3A Specifications
Download Datasheet| Microstep Size (Default Resolution) | 0.028125° (490.866 µrad) |
| Built-in Controller |  |
| Recommended Controller | MCC (48 V) Recommended |
| AutoDetect |  |
| Maximum Speed | 18000°/s (3000 rpm) |
| Minimum Speed | 0.017172°/s (299.703 µrad/s) |
| Speed Resolution | 0.017172°/s (299.703 µrad/s) |
| Encoder Resolution | 400 CPR (1600 states/rev) |
| Encoder Type | Rotary quadrature encoder (incremental) |
| Maximum Torque | 1.8 N⋅m (1.328 lb⋅ft) |
| Maximum Brake Torque | |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 3000 mA/phase |
| Motor Winding Resistance | 0.53 ohms/phase |
| Motor Winding Inductance | 2 mH/phase |
| Motor Connection | D-sub 15 |
| Motor Frame Size | NEMA 23 |
| Limit or Home Sensing | Magnetic home sensor |
| Operating Temperature Range | 0 to 50 °C |
| CE Compliant | |
| Vacuum Compatible | |
| Weight | 1.3 kg (2.866 lb) |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
Torque Speed Performance
