X-DMA-AEZ Series
Objective nanopositioning stage with built-in controller
Series Specifications
Download Datasheet| Built-in Controller |  |
| Travel Range | 10 mm (0.394") |
| Manual Control |  |
| Axes of Motion | 1 |
| LED Indicators | |
| Weight | 0.53 kg (1.168 lb) |
| Accuracy (unidirectional) | 8 µm (0.000315") |
| Repeatability | < 0.05 µm (< 0.000002") |
| Minimum Incremental Move | 10 nm |
| Flatness of Travel | < 3 µm (< 0.000118") |
| Straightness of Travel | < 3 µm (< 0.000118") |
| Pitch Error | 0.01° (0.174 mrad) |
| Roll Error | 0.005° (0.087 mrad) |
| Yaw Error | 0.005° (0.087 mrad) |
| Peak Thrust | 15 N (3.4 lb) |
| Maximum Continuous Thrust | 5 N (1.1 lb) |
| Maximum Moment (Pitch) | 3 N⋅m (2.2 lb⋅ft) |
| Maximum Moment (Roll) | 10 N⋅m (7.38 lb⋅ft) |
| Maximum Moment (Yaw) | 3 N⋅m (2.214 lb⋅ft) |
| Stiffness (Pitch) | 180 N⋅m/° (97 µrad/N⋅m) |
| Stiffness (Roll) | 320 N⋅m/° (55 µrad/N⋅m) |
| Stiffness (Yaw) | 135 N⋅m/° (129 µrad/N⋅m) |
| Counterbalance Payload Range | 2.5-10 N (0.6-2.2 lb) |
| Maximum Acceleration | 20 m/s2 (2.04 g) |
| Maximum Speed | 365 mm/s (14.37"/s) |
| Minimum Speed | 0.61 nm/s |
| Speed Resolution | 0.61 nm/s |
| Typical Move and Settle Time (100 nm move, < 15 nm, 250 g load) | < 15 ms |
| Typical Move and Settle Time (250 nm move, < 15 nm, 250 g load) | < 15 ms |
| Encoder Type | Linear analog encoder |
| Encoder Count Size | 1 nm |
| Limit or Home Sensing | Optical index mark |
| Encoder Output Type | Varies |
| Motor Type | Moving magnet voice coil |

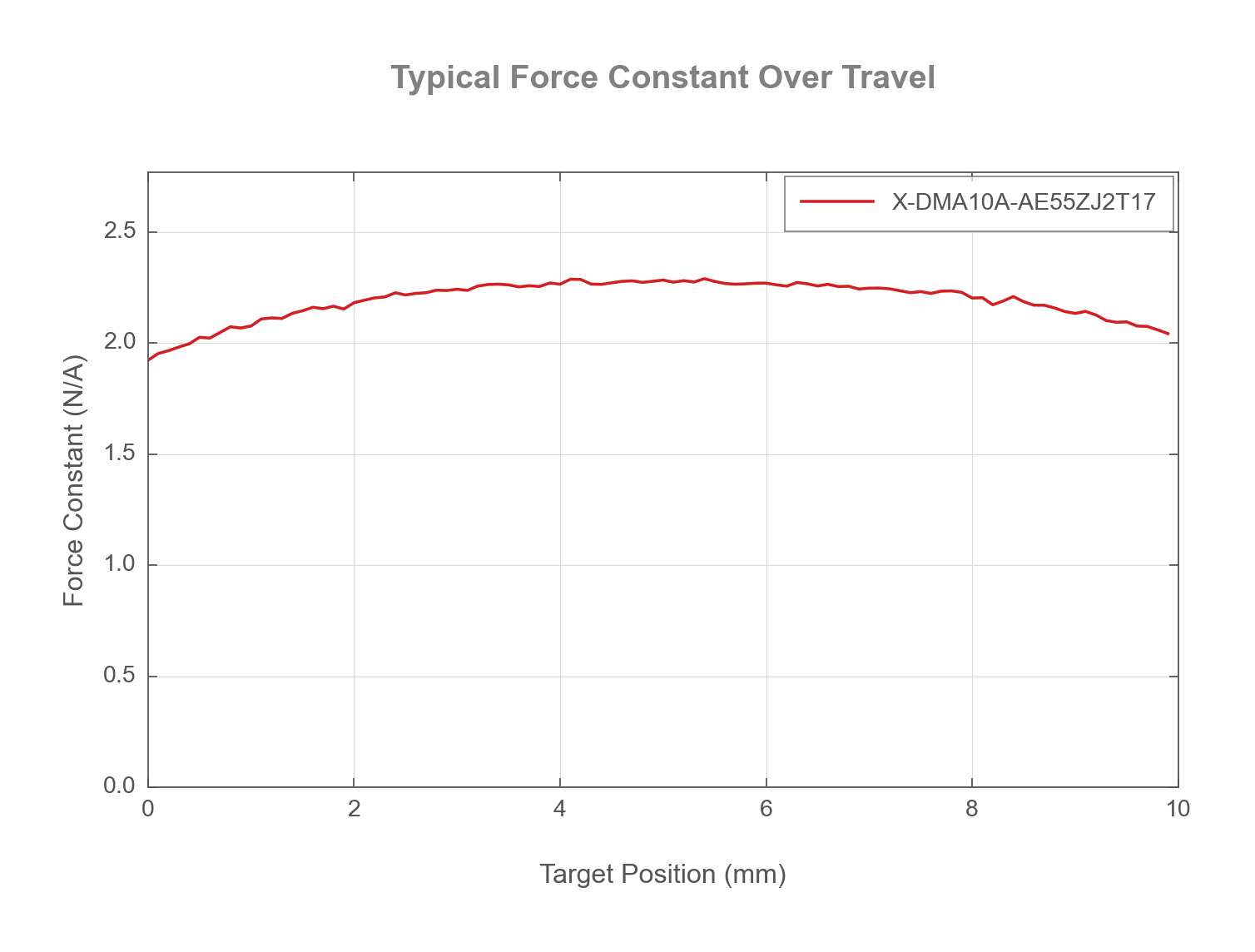

| Force Constant | 2.26 N/A (0.5 lbs/A) |
| Communication Interface | RS-232 |
| Communication Protocol | Zaber ASCII (default) |
| Data Cable Connection | Locking 4-pin M8 |
| Power Supply | 48 VDC |
| Power Plug | 2-pin screw terminal |
| Maximum Current Draw | 3750 mA |
| Counterbalance Type | Adjustable magnetic |
| Guide Type | Anti-creep crossed roller bearing |
| Mounting Interface | M3 and M6 threaded holes |
| Moving Mass | 0.175 kg (0.385 lbs) |
Filter By Feature
Choose one or more options below to filter the parts table.
X-DMATravel: 10Forcer Size: A-Encoder Options: AE55Counterbalance Options: ZJ2I/O Options: T17, not selected
Showing 2 of 2 parts.Forcer Size
Encoder Options
Counterbalance Options
I/O Options
Part Specifications Comparison
| Part Number | Encoder Output Type |
|---|---|
| X-DMA10A-AE55ZJ2T17 | |
| X-DMA10A-AE55ZJ2T17Q | Interpolated relative quadrature signal with differential RS422 levels |
Specification Charts & Notes
Other

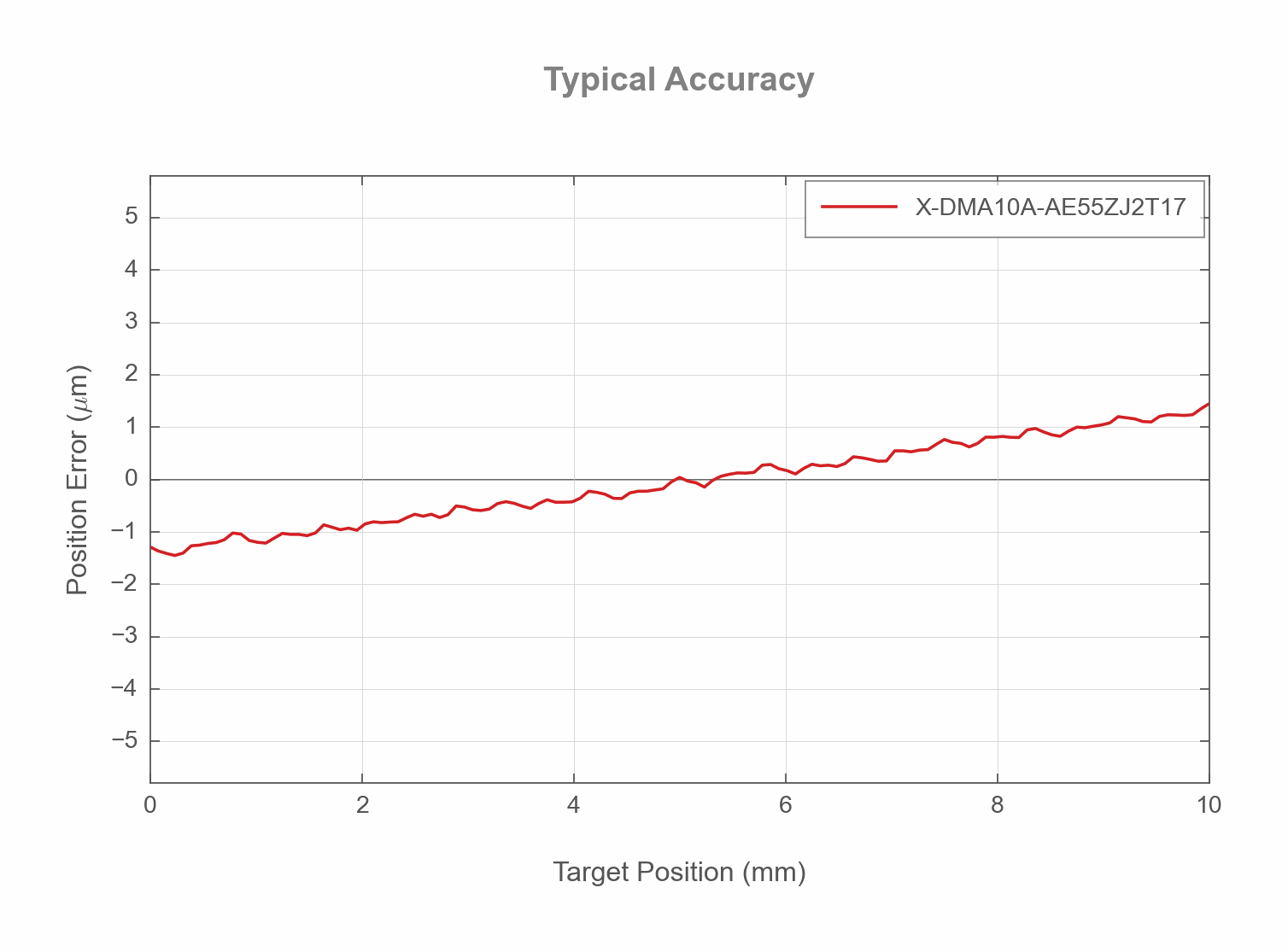

Typical Accuracy

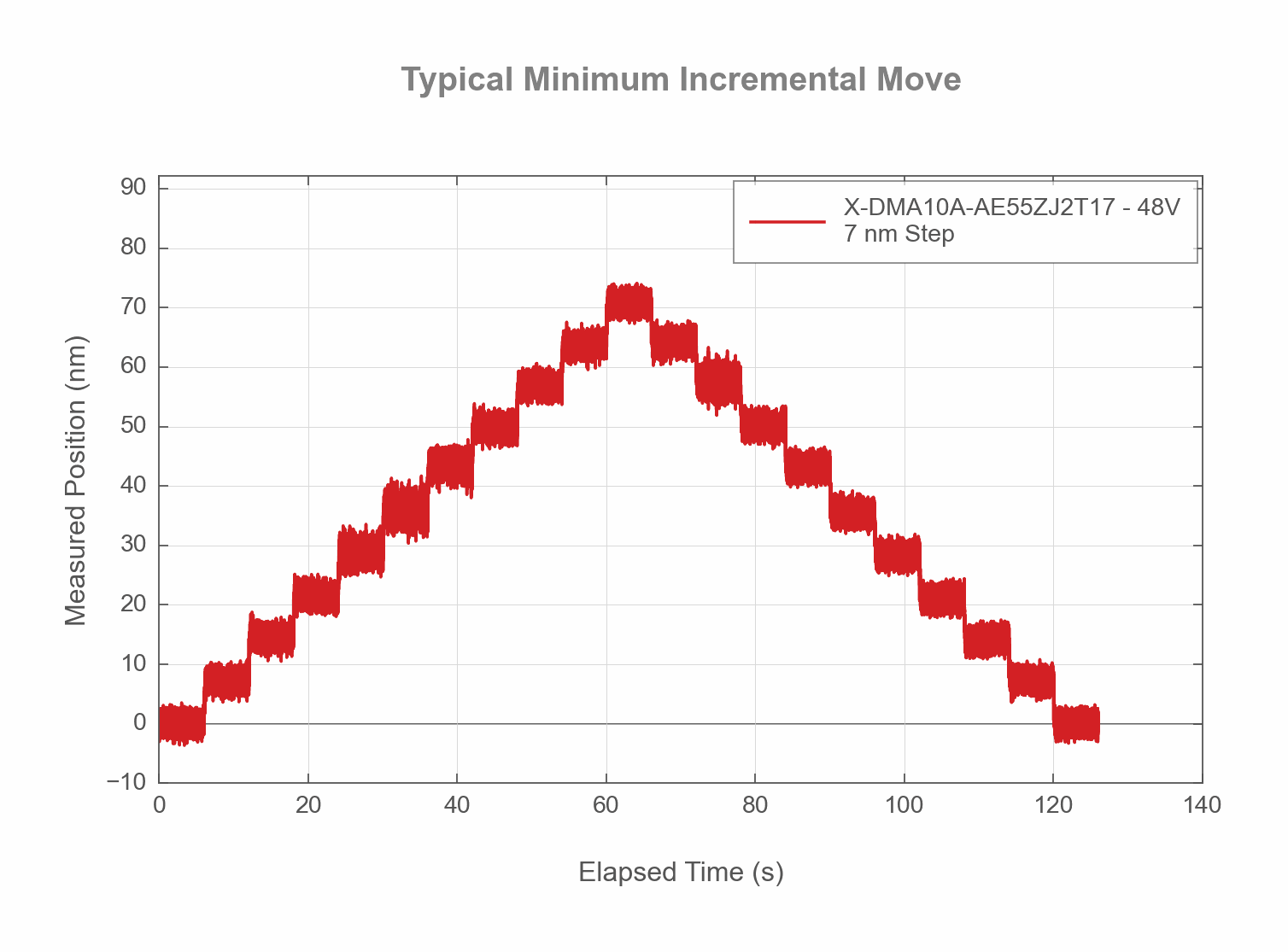

Minimum Incremental Move
