LRQ-DE Series
High precision linear stages with built-in linear encoders
Series Specifications
| Built-in Controller |  |
| Recommended Controller | X-MCC (48 V) Recommended |
| AutoDetect |  |
| Repeatability | < 2 µm (< 0.000079") |
| Encoder Type | Linear quadrature encoder |
| Encoder Resolution | 50 nm |
| Maximum Centered Load | 1000 N (224.3 lb) |
| Maximum Moment (Pitch) | 30 N⋅m (22.1 ft⋅lb) |
| Maximum Moment (Roll) | 30 N⋅m (22.1 ft⋅lb) |
| Maximum Moment (Yaw) | 30 N⋅m (22.1 ft⋅lb) |
| Stiffness in Pitch | 500 N⋅m/° (35 µrad/N⋅m) |
| Stiffness in Roll | 1180 N⋅m/° (15 µrad/N⋅m) |
| Stiffness in Yaw | 450 N⋅m/° (39 µrad/N⋅m) |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 2300 mA/phase |
| Motor Winding Resistance | 1 ohms/phase |
| Inductance | 2.2 mH/phase |
| Motor Connection | D-sub 26 |
| Default Resolution | 1/64 of a step |
| Guide Type | Recirculating Ball Linear Guide |
| Limit or Home Sensing | Magnetic home sensor |
| Axes of Motion | 1 |
| Mounting Interface | M6 and M3 threaded holes |
| Operating Temperature Range | 0 to 50 °C |
| CE Compliant | |
| Vacuum Compatible | |
Part Specifications Comparison
Showing 30 of 30 Parts.
| Part Number | Microstep Size (Default Resolution) | Travel Range | Accuracy (unidirectional) | Backlash | Maximum Speed | Minimum Speed | Speed Resolution | Peak Thrust | Back-driving Force* | Maximum Continuous Thrust | Vertical Runout | Horizontal Runout | Pitch | Roll | Yaw | Linear Motion Per Motor Rev | Mechanical Drive System | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LRQ075AL-DE51T10A | 0.09921875 µm | 75 mm (2.953") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 1.27 mm (0.050") | Precision lead screw | 2.25 kg (4.960 lb) |
| LRQ075BL-DE51T10A | 0.49609375 µm | 75 mm (2.953") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.630"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 93 N (20.9 lb) | 100 N (22.4 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 6.35 mm (0.250") | Precision lead screw | 2.25 kg (4.960 lb) |
| LRQ075HL-DE51T10A | 0.1953125 µm | 75 mm (2.953") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 93 N (20.9 lb) | 200 N (44.9 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 2.5 mm (0.098") | Precision ball screw | 2.25 kg (4.960 lb) |
| LRQ150AL-DE51T10A | 0.09921875 µm | 150 mm (5.905") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 1.27 mm (0.050") | Precision lead screw | 2.64 kg (5.820 lb) |
| LRQ150BL-DE51T10A | 0.49609375 µm | 150 mm (5.905") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.630"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 93 N (20.9 lb) | 100 N (22.4 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 6.35 mm (0.250") | Precision lead screw | 2.64 kg (5.820 lb) |
| LRQ150HL-DE51T10A | 0.1953125 µm | 150 mm (5.905") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 93 N (20.9 lb) | 200 N (44.9 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 2.5 mm (0.098") | Precision ball screw | 2.64 kg (5.820 lb) |
| LRQ300AL-DE51T10A | 0.09921875 µm | 300 mm (11.811") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 1.27 mm (0.050") | Precision lead screw | 3.44 kg (7.584 lb) |
| LRQ300BL-DE51T10A | 0.49609375 µm | 300 mm (11.811") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.630"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 93 N (20.9 lb) | 100 N (22.4 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 6.35 mm (0.250") | Precision lead screw | 3.44 kg (7.584 lb) |
| LRQ300HL-DE51T10A | 0.1953125 µm | 300 mm (11.811") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 93 N (20.9 lb) | 200 N (44.9 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 2.5 mm (0.098") | Precision ball screw | 3.44 kg (7.584 lb) |
| LRQ450AL-DE51T10A | 0.09921875 µm | 450 mm (17.716") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 1.27 mm (0.050") | Precision lead screw | 4.23 kg (9.326 lb) |
| LRQ450BL-DE51T10A | 0.49609375 µm | 450 mm (17.716") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.630"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 93 N (20.9 lb) | 100 N (22.4 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 6.35 mm (0.250") | Precision lead screw | 4.23 kg (9.326 lb) |
| LRQ450HL-DE51T10A | 0.1953125 µm | 450 mm (17.716") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 93 N (20.9 lb) | 200 N (44.9 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 2.5 mm (0.098") | Precision ball screw | 4.23 kg (9.326 lb) |
| LRQ600AL-DE51T10A | 0.09921875 µm | 600 mm (23.622") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 1.27 mm (0.050") | Precision lead screw | 4.98 kg (10.979 lb) |
| LRQ600BL-DE51T10A | 0.49609375 µm | 600 mm (23.622") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.630"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 93 N (20.9 lb) | 100 N (22.4 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 6.35 mm (0.250") | Precision lead screw | 4.98 kg (10.979 lb) |
| LRQ600HL-DE51T10A | 0.1953125 µm | 600 mm (23.622") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 93 N (20.9 lb) | 200 N (44.9 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 2.5 mm (0.098") | Precision ball screw | 4.98 kg (10.979 lb) |
| LRQ075AP-DE51T10A | 0.09921875 µm | 75 mm (2.953") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 1.27 mm (0.050") | Precision lead screw | 2.41 kg (5.313 lb) |
| LRQ075BP-DE51T10A | 0.49609375 µm | 75 mm (2.953") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.630"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 123 N (27.6 lb) | 100 N (22.4 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 6.35 mm (0.250") | Precision lead screw | 2.41 kg (5.313 lb) |
| LRQ075HP-DE51T10A | 0.1953125 µm | 75 mm (2.953") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 123 N (27.6 lb) | 200 N (44.9 lb) | < 20 µm (< 0.000787") | < 20 µm (< 0.000787") | 0.025° (0.436 mrad) | 0.01° (0.174 mrad) | 0.02° (0.349 mrad) | 2.5 mm (0.098") | Precision ball screw | 2.41 kg (5.313 lb) |
| LRQ150AP-DE51T10A | 0.09921875 µm | 150 mm (5.905") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 1.27 mm (0.050") | Precision lead screw | 2.80 kg (6.173 lb) |
| LRQ150BP-DE51T10A | 0.49609375 µm | 150 mm (5.905") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.630"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 123 N (27.6 lb) | 100 N (22.4 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 6.35 mm (0.250") | Precision lead screw | 2.80 kg (6.173 lb) |
| LRQ150HP-DE51T10A | 0.1953125 µm | 150 mm (5.905") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 123 N (27.6 lb) | 200 N (44.9 lb) | < 25 µm (< 0.000984") | < 20 µm (< 0.000787") | 0.03° (0.523 mrad) | 0.015° (0.262 mrad) | 0.02° (0.349 mrad) | 2.5 mm (0.098") | Precision ball screw | 2.80 kg (6.173 lb) |
| LRQ300AP-DE51T10A | 0.09921875 µm | 300 mm (11.811") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 1.27 mm (0.050") | Precision lead screw | 3.60 kg (7.937 lb) |
| LRQ300BP-DE51T10A | 0.49609375 µm | 300 mm (11.811") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.630"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 123 N (27.6 lb) | 100 N (22.4 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 6.35 mm (0.250") | Precision lead screw | 3.60 kg (7.937 lb) |
| LRQ300HP-DE51T10A | 0.1953125 µm | 300 mm (11.811") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 123 N (27.6 lb) | 200 N (44.9 lb) | < 35 µm (< 0.001378") | < 30 µm (< 0.001181") | 0.034° (0.593 mrad) | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 2.5 mm (0.098") | Precision ball screw | 3.60 kg (7.937 lb) |
| LRQ450AP-DE51T10A | 0.09921875 µm | 450 mm (17.716") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 1.27 mm (0.050") | Precision lead screw | 4.39 kg (9.678 lb) |
| LRQ450BP-DE51T10A | 0.49609375 µm | 450 mm (17.716") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.630"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 123 N (27.6 lb) | 100 N (22.4 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 6.35 mm (0.250") | Precision lead screw | 4.39 kg (9.678 lb) |
| LRQ450HP-DE51T10A | 0.1953125 µm | 450 mm (17.716") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 123 N (27.6 lb) | 200 N (44.9 lb) | < 45 µm (< 0.001772") | < 40 µm (< 0.001575") | 0.04° (0.698 mrad) | 0.025° (0.436 mrad) | 0.04° (0.698 mrad) | 2.5 mm (0.098") | Precision ball screw | 4.39 kg (9.678 lb) |
| LRQ600AP-DE51T10A | 0.09921875 µm | 600 mm (23.622") | 10 µm (0.000394") | < 5 µm (< 0.000197") | 54 mm/s (2.126"/s) | 0.000061 mm/s (0.000002"/s) | 0.000061 mm/s (0.000002"/s) | 230 N (51.6 lb) | Non-back-driving | 100 N (22.4 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 1.27 mm (0.050") | Precision lead screw | 5.14 kg (11.332 lb) |
| LRQ600BP-DE51T10A | 0.49609375 µm | 600 mm (23.622") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 270 mm/s (10.630"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 150 N (33.6 lb) | (± 30%) 123 N (27.6 lb) | 100 N (22.4 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 6.35 mm (0.250") | Precision lead screw | 5.14 kg (11.332 lb) |
| LRQ600HP-DE51T10A | 0.1953125 µm | 600 mm (23.622") | 13 µm (0.000512") | < 6.5 µm (< 0.000256") | 110 mm/s (4.331"/s) | 0.000119 mm/s (0.000005"/s) | 0.000119 mm/s (0.000005"/s) | 500 N (112.1 lb) | (± 30%) 123 N (27.6 lb) | 200 N (44.9 lb) | < 75 µm (< 0.002953") | < 60 µm (< 0.002362") | 0.045° (0.785 mrad) | 0.035° (0.611 mrad) | 0.04° (0.698 mrad) | 2.5 mm (0.098") | Precision ball screw | 5.14 kg (11.332 lb) |
Specification Charts & Notes

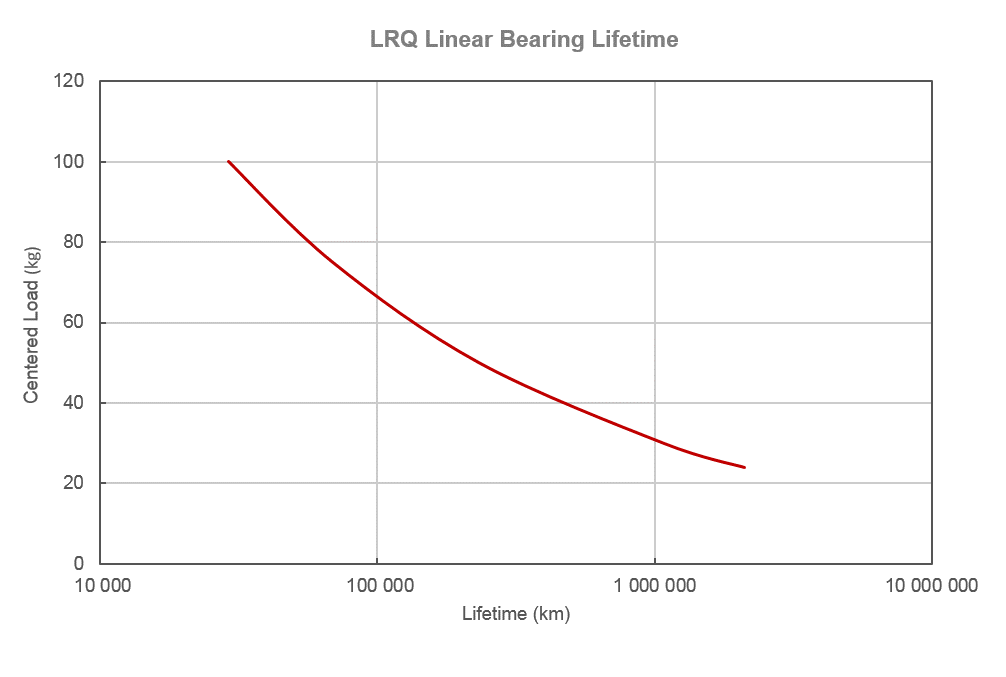

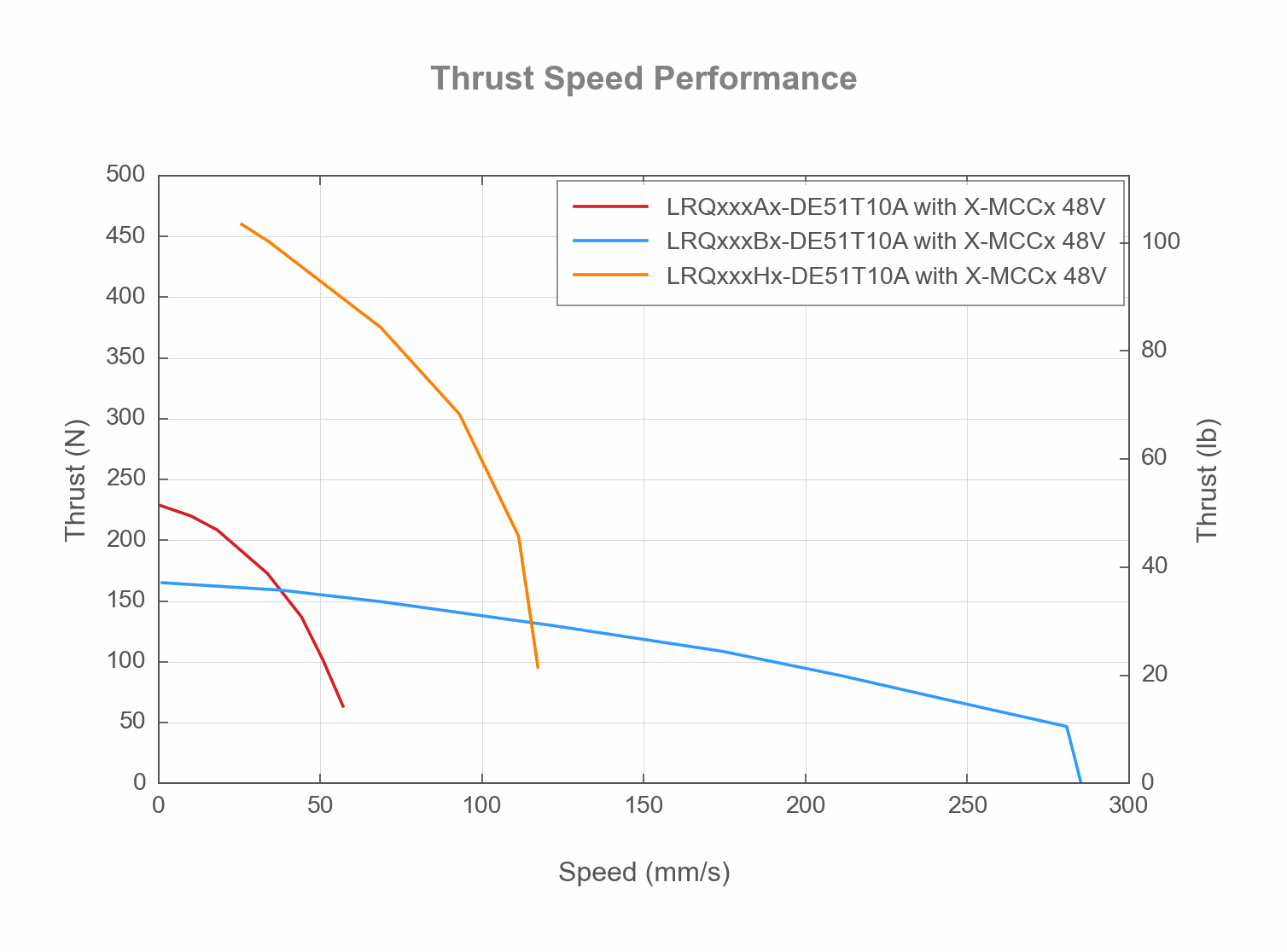

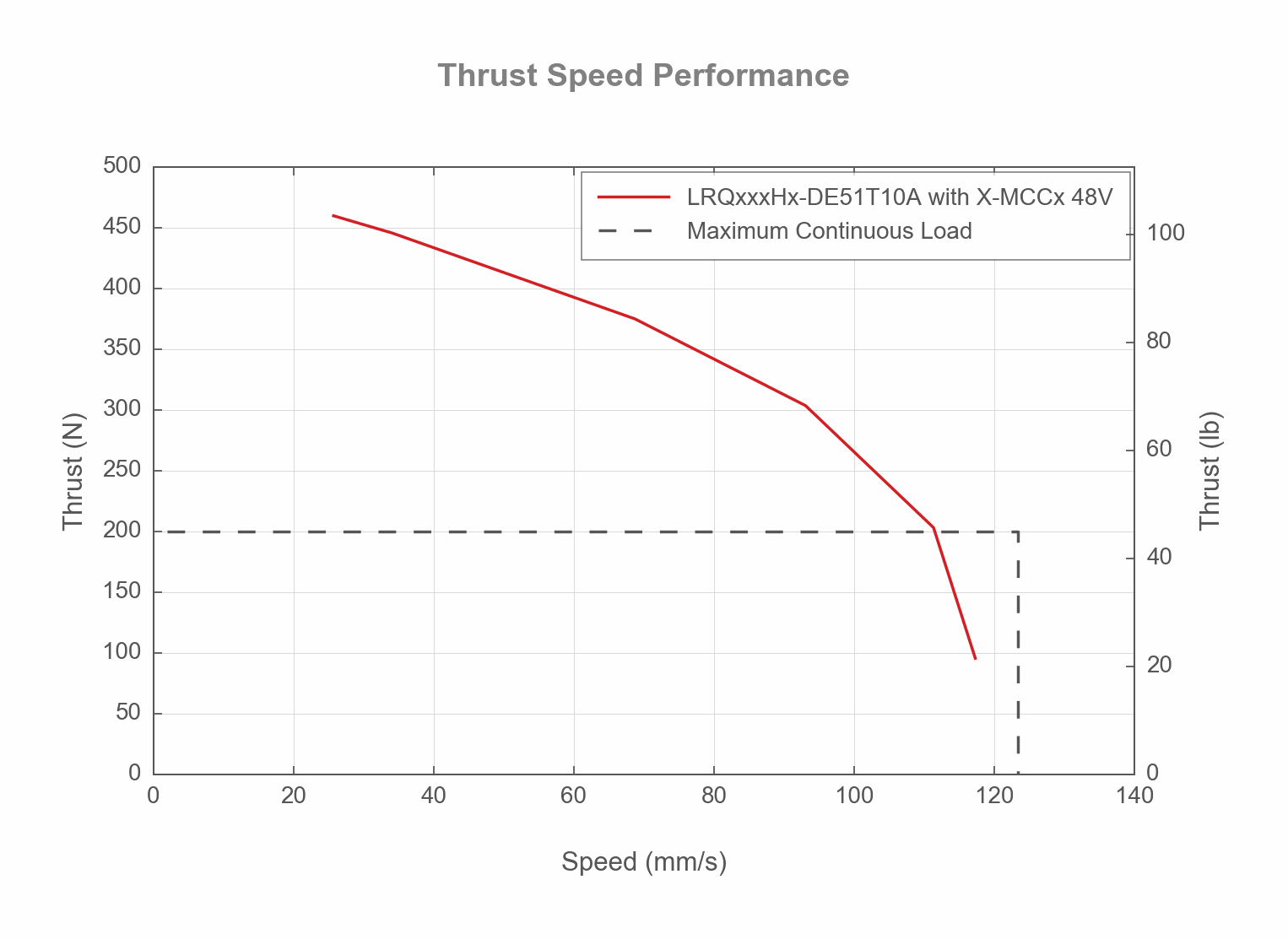

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
