DMA-AE Series
Direct drive linear stages with built-in linear encoders
Image is representative of the DMA-AE Series and may not match the selected variant.
DMA10A-AE55T10A
Direct Drive Linear Stage | 10 mm Travel
Starting Price: $3,159 *
Standard Lead Time: 1-5 Days
DMA10A-AE55T10A Specifications

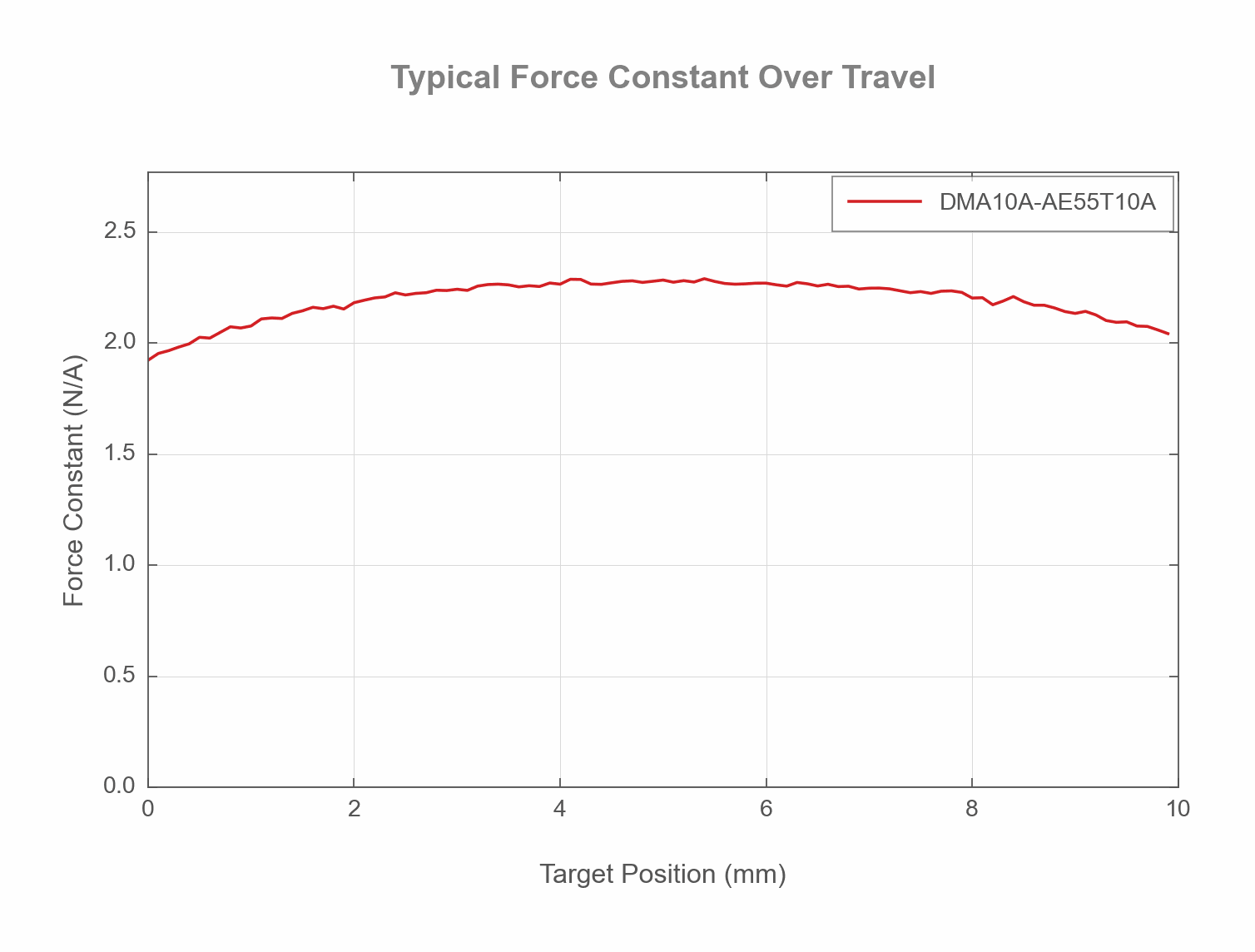

Download Datasheet| Built-in Controller |  |
| Recommended Controller | MCC (48 V) Recommended |
| AutoDetect |  |
| Travel Range | 10 mm (0.394") |
| Axes of Motion | 1 |
| Weight | 0.48 kg (1.058 lb) |
| Accuracy (unidirectional) | 8 µm (0.000315") |
| Repeatability | < 0.05 µm (< 0.000002") |
| Minimum Incremental Move | 10 nm |
| Flatness of Travel | < 3 µm (< 0.000118") |
| Straightness of Travel | < 3 µm (< 0.000118") |
| Pitch Error | 0.01° (0.174 mrad) |
| Roll Error | 0.005° (0.087 mrad) |
| Yaw Error | 0.005° (0.087 mrad) |
| Peak Thrust | 15 N (3.4 lb) |
| Maximum Continuous Thrust | 5 N (1.1 lb) |
| Maximum Centered Load | 50 N (11.2 lb) |
| Maximum Moment (Pitch) | 3 N⋅m (2.2 lb⋅ft) |
| Maximum Moment (Roll) | 10 N⋅m (7.38 lb⋅ft) |
| Maximum Moment (Yaw) | 3 N⋅m (2.214 lb⋅ft) |
| Stiffness (Pitch) | 180 N⋅m/° (97 µrad/N⋅m) |
| Stiffness (Roll) | 320 N⋅m/° (55 µrad/N⋅m) |
| Stiffness (Yaw) | 135 N⋅m/° (129 µrad/N⋅m) |
| Maximum Acceleration | 20 m/s2 (2.04 g) |
| Maximum Speed | 365 mm/s (14.37"/s) |
| Minimum Speed | 0.61 nm/s |
| Speed Resolution | 0.61 nm/s |
| Typical Move and Settle Time (100 nm move, < 15 nm, 250 g load) | < 15 ms |
| Typical Move and Settle Time (250 nm move, < 15 nm, 250 g load) | < 15 ms |
| Encoder Type | Linear analog encoder |
| Encoder Count Size | 1 nm |
| Limit or Home Sensing | Optical Index Mark |
| Motor Type | Moving Magnet Voice Coil |
| Motor Rated Current | 2800 mA/phase |
| Motor Winding Resistance | 1.67 ohms/phase |
| Motor Winding Inductance | 0.28 mH/phase |
| Motor Connection | D-sub 26 |
| Force Constant | 2.26 N/A (0.5 lbs/A) |
| Guide Type | Anti-Creep Crossed-Roller Bearing |
| Mounting Interface | M3 and M6 threaded holes |
| Moving Mass | 0.17 kg (0.374 lbs) |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes
Other

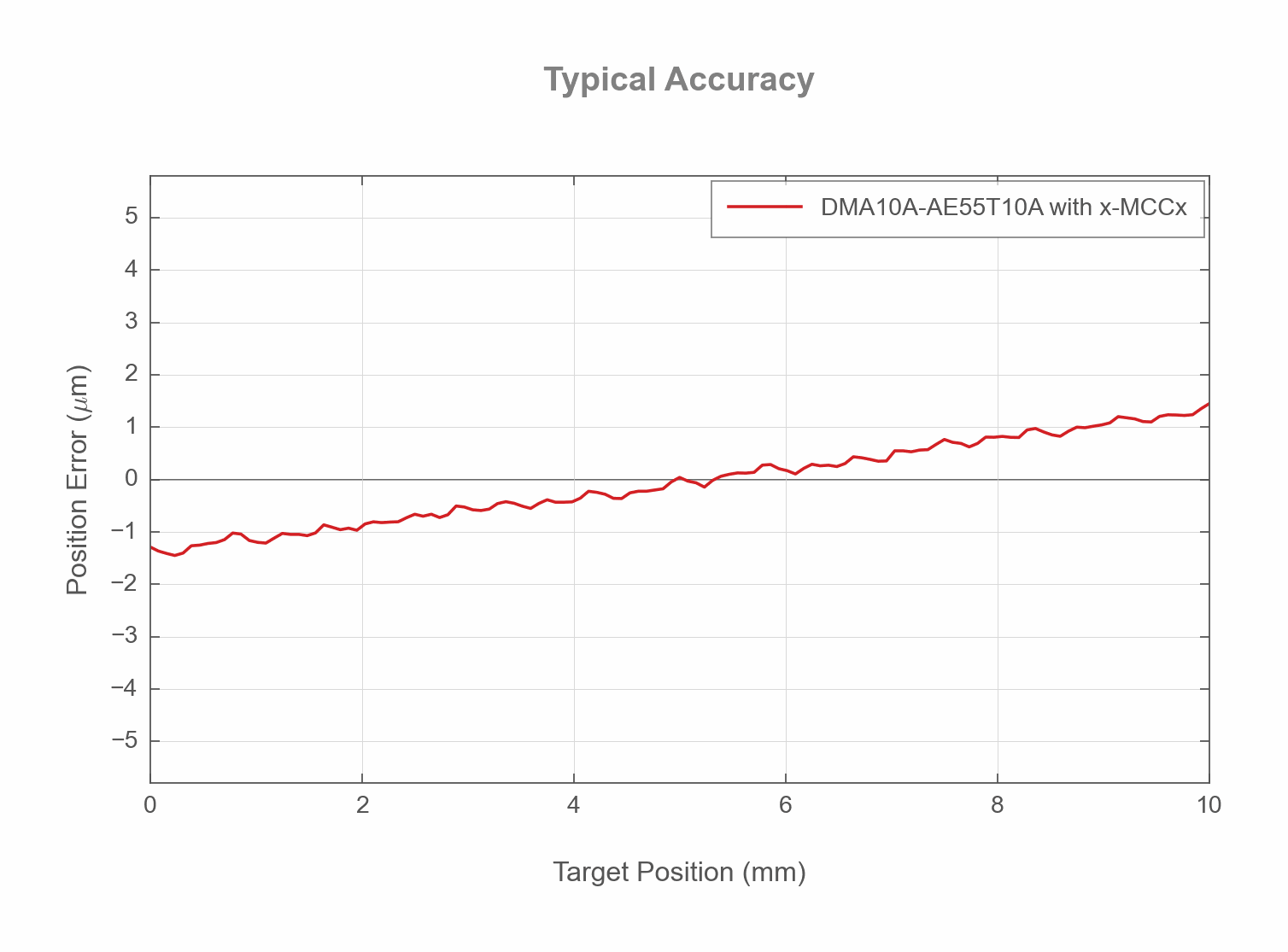

Typical Accuracy

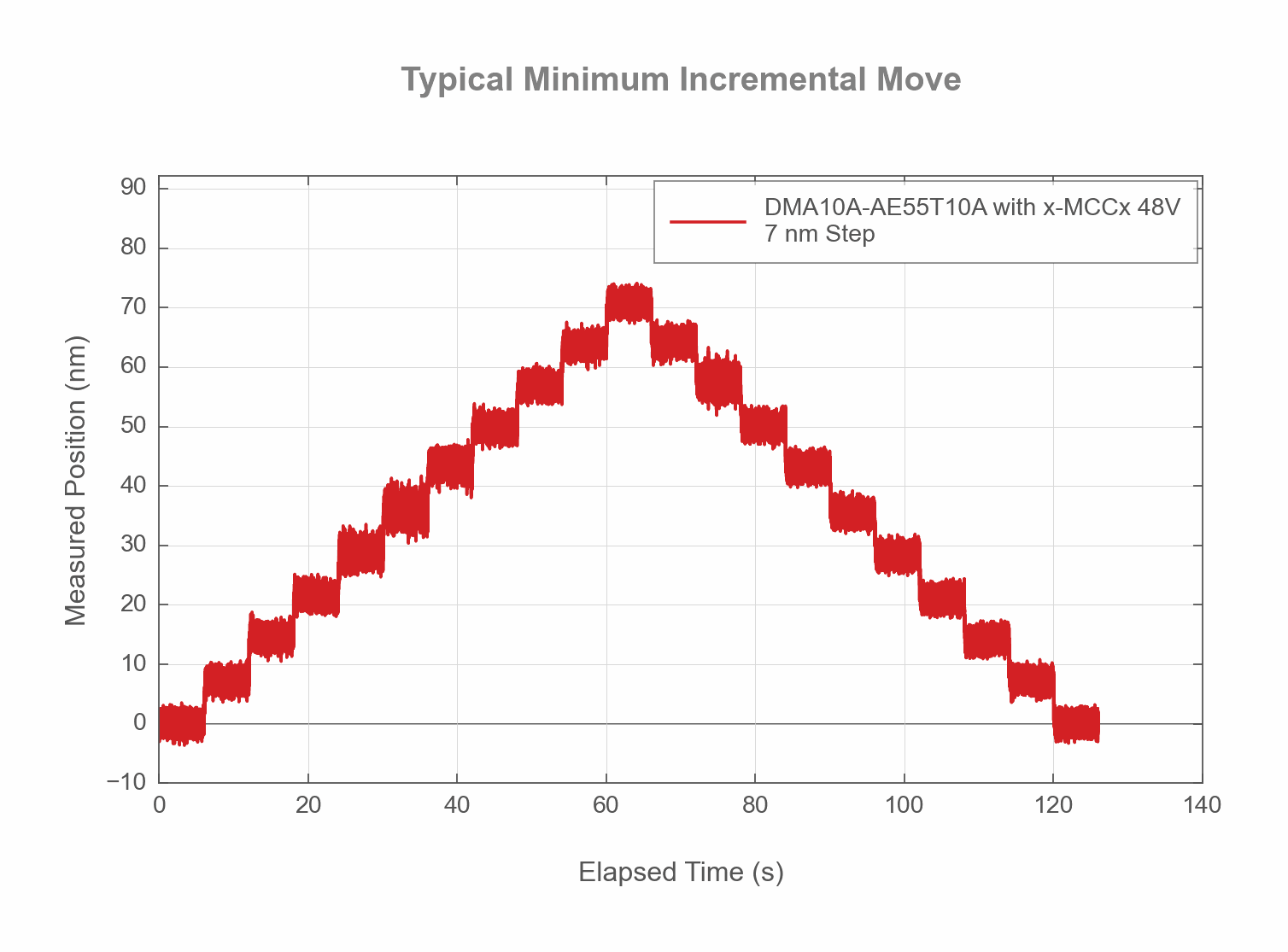

Minimum Incremental Move
