LDQ-AE Series User's Manual
High speed, precision linear motor stages with built-in linear encoders
Disclaimer
Zaber’s products are not intended for use in any critical medical, aviation, or military applications or situations where a product's use or failure could cause personal injury, death, or damage to property. Zaber disclaims any warranty of fitness for a particular purpose. The user of this product agrees to Zaber's general terms and conditions of sale.
Precautions
Zaber's autodetect peripheral axes are designed to be used effortlessly with Zaber's line of autodetect controllers. The LDQ-AE includes onboard memory that allows Zaber's controllers to autodetect the model and set reasonable parameters. See the Protocol Manual for more information on how to modify the settings. Damage to the axis may result if the settings are not correct. To use your Zaber peripheral with a third-party controller, review the motor, sensor, and encoder specifications and pin-outs carefully.
Mounting and Maintenance Hazard! For operator safety, the LDQ-AE should always be un-powered during all cleaning, maintenance, and stage or load mounting operations. A powered stage could exert high forces and move at high speeds very suddenly if accidentally given a move command.
Shipping Safety
Upon receipt of the stage, remove the two straps securing the stage top before attempting to power-up the stage. If transporting or shipping the stage, it is recommended that replacement straps be installed to prevent the carriage from moving during shipping.
Important Precautions for Use
Strong Magnets! The LDQ-AE stages contain strong magnets that could affect pacemaker function. Pacemaker users should stay at least 20 cm away from the stages. The magnets can also attract nearby magnetic objects. Use caution when mounting the device as fasteners and tools can easily be pulled into the magnet track. Use non-magnetic fasteners and tools whenever possible.
Secure Stage Mounting Required! The LDQ-AE stages are heavy and can shake and vibrate during operation due to high inertia. The stages must always be securely mounted to a work surface during operation. See #Physical_Installation for information on stage mounting.
Important: The LDQ-AE stage should be homed immediately upon power-up. Behavior may appear jerky during homing. Once the stage has been homed, motion will be controlled and smooth.
Back-driving Hazard! Linear motor stages require current to the motor coils to provide a force to maintain position and/or support a load. If power is removed the carriage may move suddenly or in an uncontrolled manner. The LDQ-AE stage is not intended for load lifting operations due to the risk of uncontrolled motion if driver power is removed.
Important: The LDQ-AE is a servo device, meaning that its performance is dependent on proper tuning of the servo parameters for the given load. The use of incorrect servo parameters may reduce the device’s performance in operation. Incorrect tuning may also result in unstable operation, which can cause unexpected rapid motion of the device, leading to reduced device lifetime and user injury. When the operating load on the device is changed, the tuning parameters should be updated to match. For details see the servo tuning guidelines.
Lubrication of Linear Guides
Many factors affect the lifetime of the grease and bearings including duty cycle, environment, travel length, stage orientation, and loading configuration. As a general guideline for usage in a clean office environment, the recommended re-lubrication interval is 250 km with an inspection after every 1500 hours of continuous operation. Inspection should be done by wiping a bearing rail with a clean, lint-free wipe and ensuring that there is clean, wetted grease present.
Harsh environment, short travel, vertically oriented, and high duty cycle applications require more frequent re-lubrication and inspection. Contact an Applications Engineer to discuss your application for more specific recommendations.
Short travel can cause an insufficient distribution of lubricant amongst the rolling elements of the bearing system. For recirculating bearing guide types, short travel is equal to or less than the length of the carriage. For crossed-roller bearing guide types, short travel is equal to or less than twice the spacing of the rolling elements (typically 5-6 mm). If your application is considered short travel, it is recommended to occasionally drive the stage throughout its full travel range to maintain an even lubrication film over the entire guide surface. More frequent re-lubrication and inspection may be required in these applications.
Contact Zaber support for relubrication kit SG133. We recommend using Shell Gadus S2 V220 2 or similar lithium thickened petroleum grease.
We recommend using 0.2 cm³ per bearing block of grease. All guides come pre-lubricated and are ready to go out of the box.
-
1. Remove power to the device before attempting to lubricate.
2. Re-lubricate at four of the ports shown above on the stage.
Encoder Care and Cleaning
The LDQ-AE uses a high precision, optical linear encoder for position feedback. The read head is mounted out of harm's way under the stage top, but the tape scale is mounted to the side of the motor (shown below) and can be damaged if care is not used when mounting the device. Avoid contacting the tape scale with tools and fasteners. Should the device be used in a dusty environment and debris is deposited on the tape scale, the encoder signal strength may be compromised and cleaning will be required. Using a dry, lint free wipe, gently wipe the scale along the travel of the device to clean the scale.
-
Remove power to the device before attempting to clean the tape scale with a dry, lint free wipe
Cable Chain Care
The LDQ-AE uses a polymer cable chain to protect and guide the cable assemblies for the motor and encoder. It is a robust guide but care must be taken to ensure its functionality and longevity. Do not grab the chain with the intent to move, reposition, or lift the stage. Ensure that during operation, the chain is allowed to move freely without it sliding on or impacting a stationary surface
-
Do not grab the chain with the intent to move, reposition, or lift the stage.
Noise Emissions
The A-weighted emission sound pressure level (SPL) of this device does not exceed 70 dB(A) during intended use.
Conventions used throughout this document
- Fixed width type indicates communication to and from a device. The
symbol indicates a carriage return, which can be achieved by pressing enter when using a terminal program.

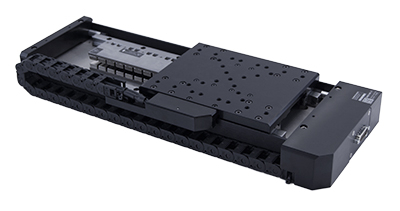

Device Overview
AutoDetect
Your LDQ-AE peripheral is equipped with AutoDetect, a feature that allows a Zaber controller to automatically configure its settings for the peripheral when it is connected.
Important: The controller should always be powered down before disconnecting or connecting your LDQ-AE peripheral.
To connect the peripheral to a controller:
- Power off the controller.
- Connect the LDQ-AE peripheral.
- Power on the controller.
- The controller will activate the peripheral shortly after it is powered on.
See the Zaber controller user manual for more details on peripheral activation and control.
Connectors
Recommended controller(s) for your LDQ-AE peripheral are provided in the product specifications. Zaber's controllers and peripherals are designed for ease of use when used together. Optimal settings for each peripheral are automatically detected by Zaber's controllers when the device is connected.
For reference, the pinout for the peripheral cable connectors is shown below:
Pinout for D-sub 26 Connectors (peripherals)
Male High Density D-sub26 Connector |
Pin | Description | Pin | Description |
|---|---|---|---|---|
| 1 | AutoDetect Clock | 14 | Motor Hall C | |
| 2 | AutoDetect Data | 15 | +5V | |
| 3 | N.C. | 16 | Ground | |
| 4 | N.C. | 17 | N.C. | |
| 5 | N.C. | 18 | Motor W | |
| 6 | Motor Over-Temperature | 19 | Differential Encoder Sin- | |
| 7 | Ground | 20 | Differential Encoder Cos- | |
| 8 | Motor V | 21 | Differential Encoder Index- | |
| 9 | Motor U | 22 | Motor Hall A | |
| 10 | Differential Encoder Sin+ | 23 | Motor Hall B | |
| 11 | Differential Encoder Cos+ | 24 | N.C. | |
| 12 | Differential Encoder Index+ | 25 | N.C. | |
| 13 | Differential Encoder Error | 26 | N.C. |
NOTE: All hall sensor signals (for limits or motor phase) are open collector and require a pull-up on the controller.
NOTE: All single-ended encoder inputs are non-isolated 5V TTL lines.
NOTE: All differential encoder signals are non-isolated, and must be terminated on the controller with 120 Ω. For -AE peripherals, these signals are sinusoidal with 1 V peak-to-peak differential levels and with the common mode between 1.5 V and 2.5 V.
Alternate Controllers
The LDQ-AE can be controlled by other linear motor controllers with appropriate encoder input. We do not recommend using your own controller unless you are familiar with wiring and tuning third-party linear motor products. Damage to the device due to incorrect wiring is not covered by warranty.
Motors & Encoders
For motor and encoder information see the LDQ-AE product page
Installation
The LDQ-AE can be operated by connecting to the controller/s recommended in the product specifications. Please review the controller's user manual as well.
Physical Installation
Secure stages with M6 socket cap screws, 12 mm or longer. Two stages can be mounted directly in XY configuration.
Tip: To obtain the best pitch, roll, yaw and runout accuracy, mount the stage to a known flat, stiff surface. Our tests were performed on a granite table, grade A flatness.
Tipping Hazard! Ensure stage is fastened to a secure surface before mounting load on carriage. An unmounted stage with a load presents a tipping hazard. Ensure loads are mounted securely to the carriage of the stage.
Servo Tuning
This peripheral is a closed-loop positioning servo system. It continuously monitors and corrects its position via the linear encoder. As with any servo system, the behaviour is dependent on the controller tuning. The LDQ-AE, when paired with a compatible Zaber controller, such as an X-MCC series Universal Motor Controller, will be appropriately tuned out of the box with settings that are optimized for regular use under a light load. However, as with any closed-loop feedback system, the device performance is load-dependent, and conditions significantly outside of the intended operating range have the potential for reduced performance or instability. Thus, if operation with large or unconventional dynamic loads is desired, or if the application demands specific performance characteristics, it may be necessary to tune the servo parameters. This may be conveniently done by using Zaber Launcher's Servo Tuner App, or Zaber Motion Library's ServoTuner API.
Tip: Because servo devices continuously monitor and correct position, it is necessary to specify how accurate and stable the final position must be at the end of the movement. Criteria required for the controller to report IDLE status after movement are specified using the cloop.settle.tolerance and cloop.settle.period settings. For applications requiring utmost precision, you may want to specify a smaller tolerance and longer period. Note that there is a direct, inverse relationship between settling time and cloop.settle.tolerance, and the controller may never report IDLE status if the tolerance is too small.
Trajectory Control and Behaviour
This section describes the behaviour of the axis trajectory when a movement command is issued.
Software Position Limits
The travel range of the axis is limited by the Minimum Position and Maximum Position settings. The factory settings for the axis are configured to match the physical travel range. If a customized range is desired, it can be changed by configuring the limit.min and limit.max settings to appropriate values. For the Current Position, query pos.
- Minimum Position
- When the Current Position is less than the Minimum Position value, the axis cannot move in the negative direction.
- Maximum Position
- When the Current Position is greater than the Maximum Position value, the axis cannot move in the positive direction.
Movement Speed
The movement speed of the axis depends on axis status and various speed settings. If the axis has not been initialized by the home command or by moving towards the home end of the axis, movement speed will be constrained to fail-safe values. The home status of the axis can be determined by reading the limit.home.triggered setting.
Movement speed of the axis is specified below:
- move vel
- The axis will move at the specified speed regardless of home status.
- Knob movement in Velocity Mode
- The axis will move at the specified speed regardless of home status.
- The speed is specified by the knob.speedprofile and knob.maxspeed settings.
- Other movement commands - when the axis has not been homed
- The axis will move at the slower of the maxspeed and limit.approach.maxspeed settings.
- Other movement commands - when the axis has been homed
- The axis will move at the speed specified by the maxspeed setting.
Warranty and Repair
For Zaber's policies on warranty and repair, please refer to the Ordering Policies.
Standard products
Standard products are any part numbers that do not contain the suffix ENG followed by a 4 digit number. Most, but not all, standard products are listed for sale on our website. All standard Zaber products are backed by a one-month satisfaction guarantee. If you are not satisfied with your purchase, we will refund your payment minus any shipping charges. Goods must be in brand new saleable condition with no marks. Zaber products are guaranteed for one year. During this period Zaber will repair any products with faults due to manufacturing defects, free of charge.
Custom products
Custom products are any part numbers containing the suffix ENG followed by a 4 digit number. Each of these products has been designed for a custom application for a particular customer. Custom products are guaranteed for one year, unless explicitly stated otherwise. During this period Zaber will repair any products with faults due to manufacturing defects, free of charge.
How to return products
Customers with devices in need of return or repair should contact Zaber to obtain an RMA form which must be filled out and sent back to us to receive an RMA number. The RMA form contains instructions for packing and returning the device. The specified RMA number must be included on the shipment to ensure timely processing.
Email Updates
If you would like to receive our periodic email newsletter including product updates and promotions.
Contact Information
Contact Zaber Technologies Inc by any of the following methods:
| Phone | 1-604-569-3780 (direct) 1-888-276-8033 (toll free in North America) |
|---|---|
| Fax | 1-604-648-8033 |
| #2 - 605 West Kent Ave. N., Vancouver, British Columbia, Canada, V6P 6T7 | |
| Web | www.zaber.com |
| Please visit our website for up to date email contact information. |
The original instructions for this product are available at https://www.zaber.com/manuals/LDQ-AE.
Appendix A: Default Settings
Please see the Zaber Support Page for default settings for this device.

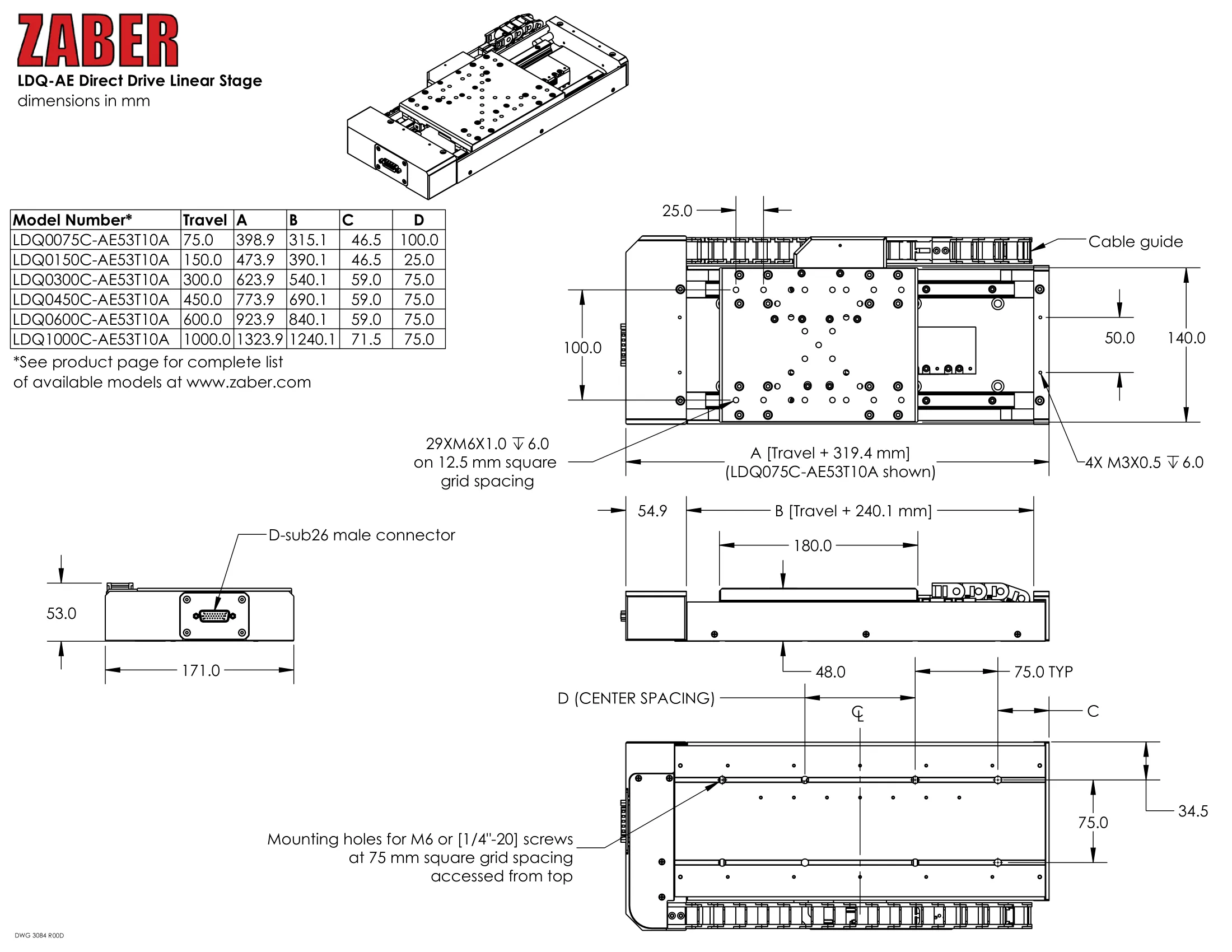

Product Drawing
Specifications
| Specification | Value | Alternate Unit |
|---|---|---|
| Built-in Controller | No | |
| Recommended Controller | X-MCC (48 V) Recommended | |
| AutoDetect | Yes | |
| Accuracy (unidirectional) | 2.5 µm | 0.000098" |
| Repeatability | < 0.3 µm | < 0.000012" |
| Minimum Incremental Move | 25 nm | |
| Maximum Acceleration | 39.24 m/s2 | 4.00 g |
| Maximum Speed | 1500 mm/s | 59.055"/s |
| Minimum Speed | 0.61 nm/s | |
| Speed Resolution | 0.61 nm/s | |
| Encoder Type | Linear analog encoder | |
| Encoder Count Size | 1 nm | |
| Peak Thrust | 95 N | 21.3 lb |
| Maximum Continuous Thrust | 35 N | 7.8 lb |
| Maximum Centered Load | 200 N | 44.9 lb |
| Maximum Moment (Pitch) | 30 N⋅m | 22.1 ft⋅lb |
| Maximum Moment (Roll) | 30 N⋅m | 22.1 ft⋅lb |
| Maximum Moment (Yaw) | 30 N⋅m | 22.1 ft⋅lb |
| Typical Velocity Stability | ± 0.54% at 100 mm/s with a 5 kg payload | |
| Stiffness in Pitch | 8000 N⋅m/° | 2 µrad/N⋅m |
| Stiffness in Roll | 3800 N⋅m/° | 5 µrad/N⋅m |
| Stiffness in Yaw | 4000 N⋅m/° | 4 µrad/N⋅m |
| Motor Type | Moving Coil Linear Motor | |
| Motor Rated Current | 2400 mA/phase | |
| Force Constant | 15.8 N/A | 3.5 lbs/A |
| Motor Winding Resistance | 6.4 ohms/phase | |
| Inductance | 1.24 mH/phase | |
| Guide Type | Recirculating Ball Linear Guide | |
| Limit or Home Sensing | Optical Index Mark | |
| Axes of Motion | 1 | |
| Mounting Interface | M6 threaded holes | |
| Moving Mass | 1.5 kg | 3.300 lbs |
| Operating Temperature Range | 0 to 50 °C | |
| CE Compliant | Yes | |
| Vacuum Compatible | No |
Comparison
| Part Number | Travel Range | Vertical Runout | Horizontal Runout | Pitch |
|---|---|---|---|---|
| LDQ0075C-AE53T10A | 75 mm (2.953") | < 20 µm (< 0.000787") | < 6 µm (< 0.000236") | 0.008° (0.140 mrad) |
| LDQ0150C-AE53T10A | 150 mm (5.905") | < 25 µm (< 0.000984") | < 12 µm (< 0.000472") | 0.015° (0.262 mrad) |
| LDQ0300C-AE53T10A | 300 mm (11.811") | < 35 µm (< 0.001378") | < 25 µm (< 0.000984") | 0.03° (0.523 mrad) |
| LDQ0450C-AE53T10A | 450 mm (17.716") | < 40 µm (< 0.001575") | < 30 µm (< 0.001181") | 0.05° (0.873 mrad) |
| LDQ0600C-AE53T10A | 600 mm (23.622") | < 60 µm (< 0.002362") | < 50 µm (< 0.001968") | 0.05° (0.873 mrad) |
| LDQ1000C-AE53T10A | 1000 mm (39.370") | < 70 µm (< 0.002756") | < 70 µm (< 0.002756") | 0.06° (1.047 mrad) |
| Part Number | Roll | Yaw | Weight |
|---|---|---|---|
| LDQ0075C-AE53T10A | 0.005° (0.087 mrad) | 0.02° (0.349 mrad) | 6.37 kg (14.043 lb) |
| LDQ0150C-AE53T10A | 0.008° (0.140 mrad) | 0.025° (0.436 mrad) | 7.27 kg (16.028 lb) |
| LDQ0300C-AE53T10A | 0.015° (0.262 mrad) | 0.03° (0.523 mrad) | 9.37 kg (20.657 lb) |
| LDQ0450C-AE53T10A | 0.02° (0.349 mrad) | 0.035° (0.611 mrad) | 10.87 kg (23.964 lb) |
| LDQ0600C-AE53T10A | 0.04° (0.698 mrad) | 0.04° (0.698 mrad) | 13.2 kg (29.101 lb) |
| LDQ1000C-AE53T10A | 0.06° (1.047 mrad) | 0.06° (1.047 mrad) | 18.6 kg (41.006 lb) |

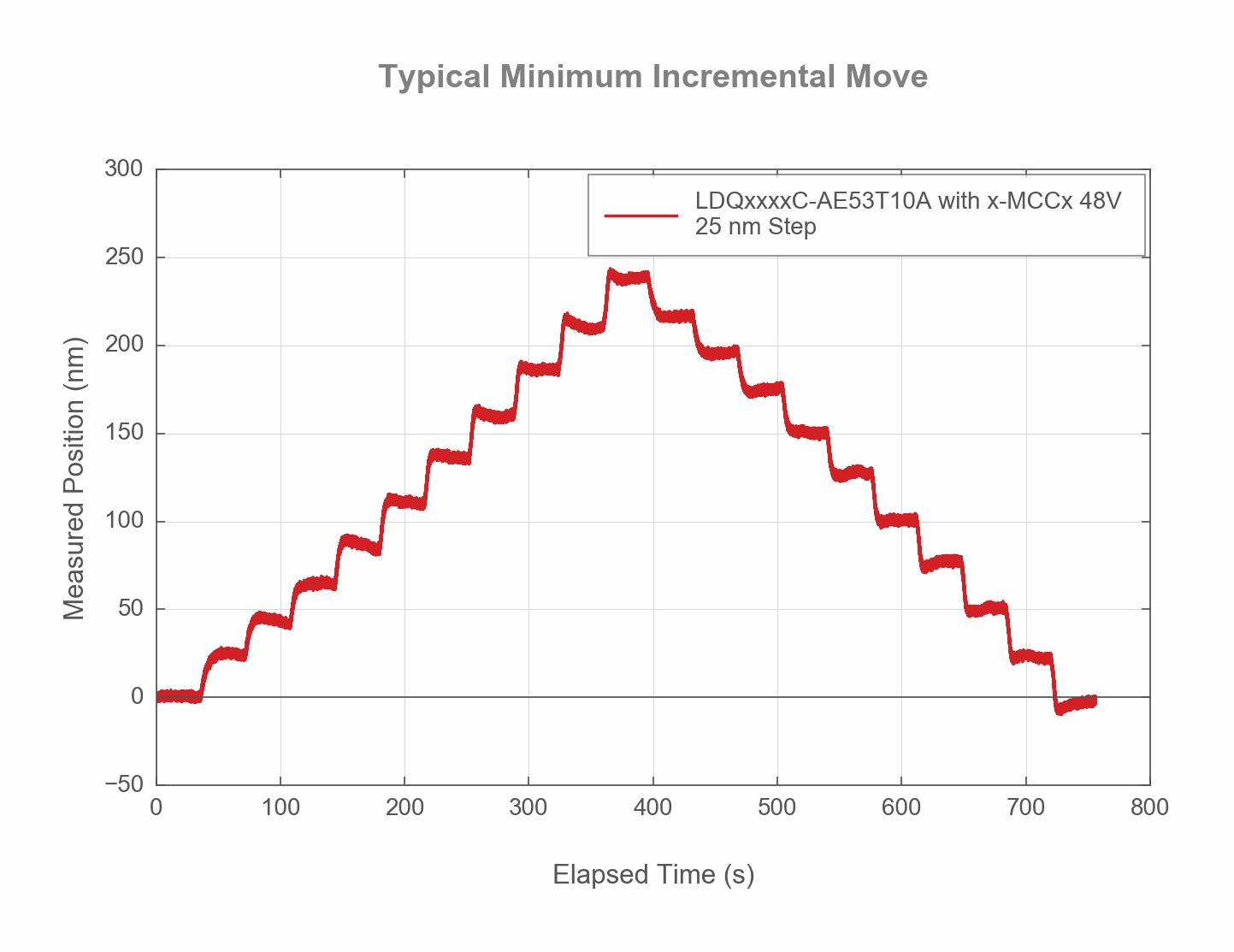

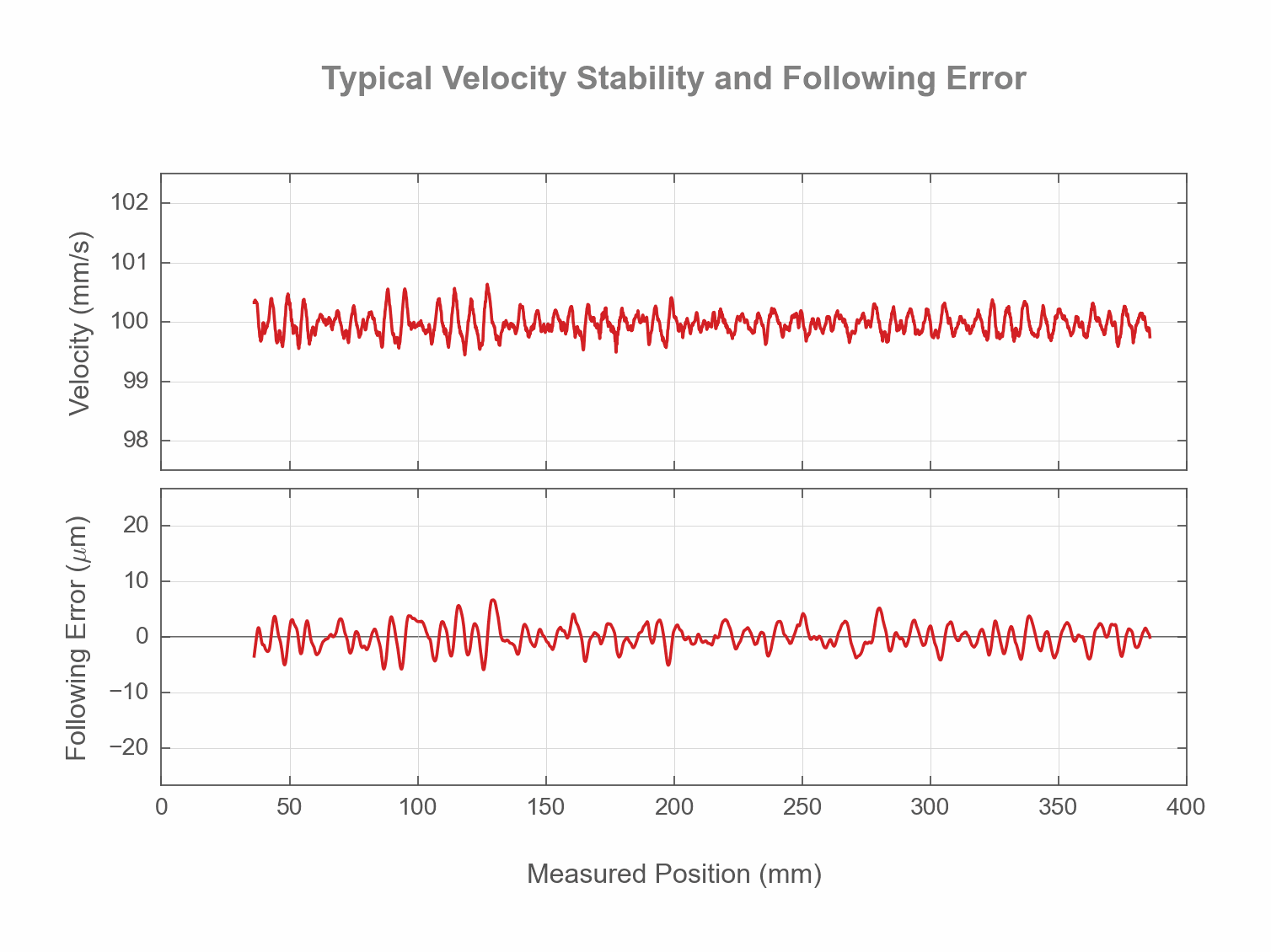

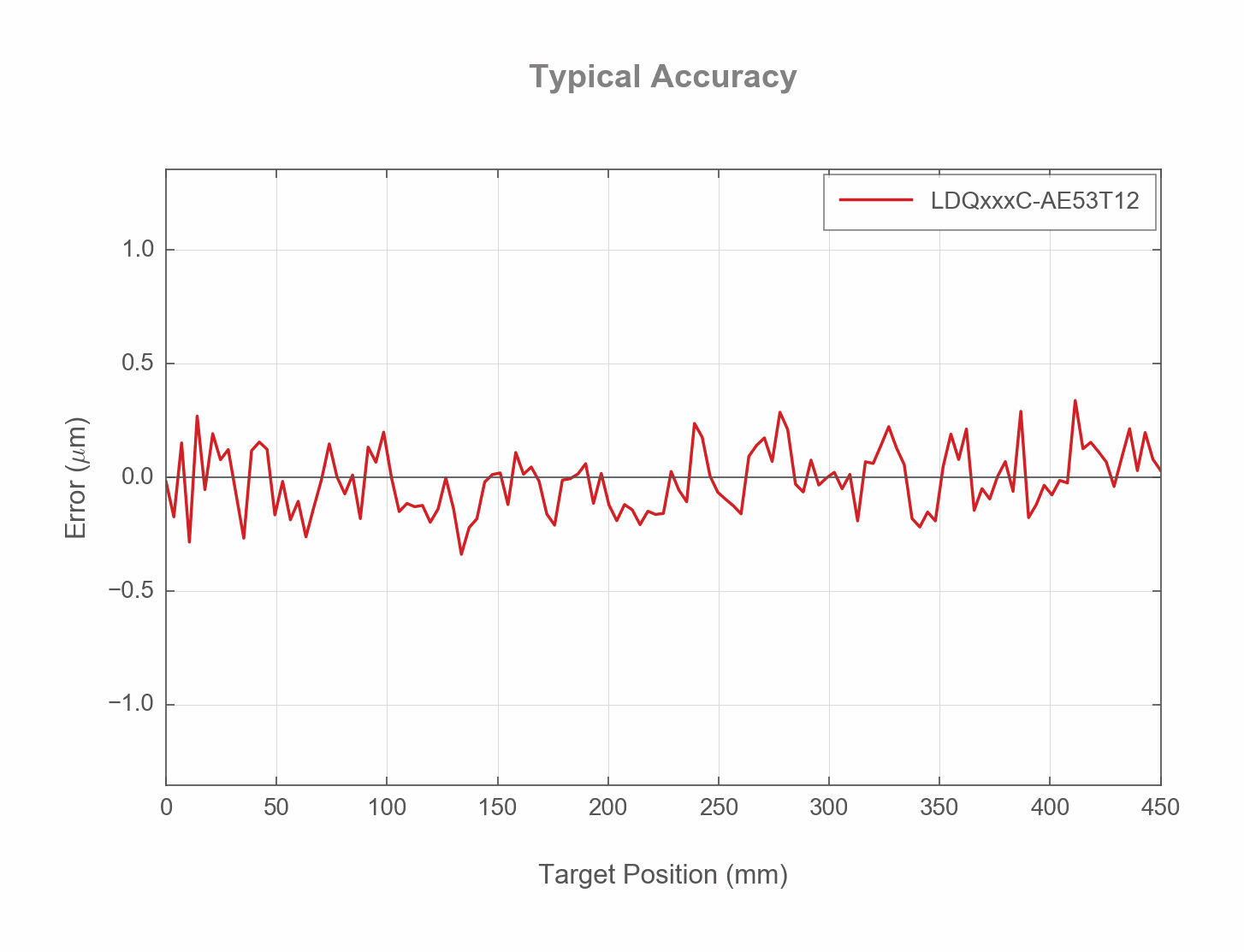

Charts and Notes
Product Change Notices
Click here to view the current product change notices and subscribe to future change notifications.
