X-LDM-AEZ Series

Ultra precision vertical stages with built-in controllers

Series Specifications

Download Datasheet
Built-in Controller Yes
Travel Range 40 – 60 mm
Manual Control Indexed knob with push switch
Axes of Motion 1
LED Indicators Yes
Weight 5.17 kg (11.398 lb)
Accuracy (unidirectional) 1 µm (0.000039")
Repeatability < 0.08 µm (< 0.000003")
Minimum Incremental Move 25 nm
Straightness of Travel < 4 µm (< 0.000157")
Pitch Error 0.003° (0.052 mrad)
Roll Error 0.002° (0.035 mrad)
Yaw Error 0.002° (0.035 mrad)
Peak Thrust 50 N (11.2 lb)
Maximum Continuous Thrust 25 N (5.6 lb)
Maximum Moment (Pitch) 12 N⋅m (8.9 lb⋅ft)
Maximum Moment (Roll) 12 N⋅m (8.856 lb⋅ft)
Maximum Moment (Yaw) 12 N⋅m (8.856 lb⋅ft)
Counterbalance Payload Range Varies
Maximum Acceleration 9 m/s2 – 16 m/s2
Maximum Speed 600 – 800 mm/s
Minimum Speed 0.61 nm/s
Speed Resolution 0.61 nm/s
Encoder Type Linear analog encoder
Encoder Count Size 1 nm
Limit or Home Sensing Optical Index Mark
Motor Type Moving Magnet Track Linear Motor (3 phase)
Communication Interface RS-232
Communication Protocol Zaber ASCII (Default)
Data Cable Connection Locking 4-pin M8
Power Supply 48 VDC
Power Plug 2-pin screw terminal
Maximum Current Draw 3000 mA
Digital Input 1
Digital Output 2
Counterbalance Type Adjustable Magnetic
Guide Type Crossed-Roller Bearing
Mounting Interface M6 threaded holes
Moving Mass 2.32 kg (5.104 lbs)
Operating Temperature Range 0 to 50 °C
CE Compliant Yes
Vacuum Compatible No

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Forcer Size

C
Medium

Encoder Options

AE54
Analog encoder, measure down to 1 nm

Counterbalance Options

I/O Options

D12
One digital input, two digital outputs

Part Specifications Comparison

Part NumberTravel RangeCounterbalance Payload RangeMaximum AccelerationMaximum Speed
X-LDM040C-AE54ZJ2D1240 mm (1.575")38-55 N (8.5-12.3 lb)9 m/s2 (0.92 g)600 mm/s (23.622"/s)
X-LDM060C-AE54ZJ1D1260 mm (2.362")10-33 N (2.2-7.4 lb)16 m/s2 (1.63 g)800 mm/s (31.496"/s)

Specification Charts & Notes

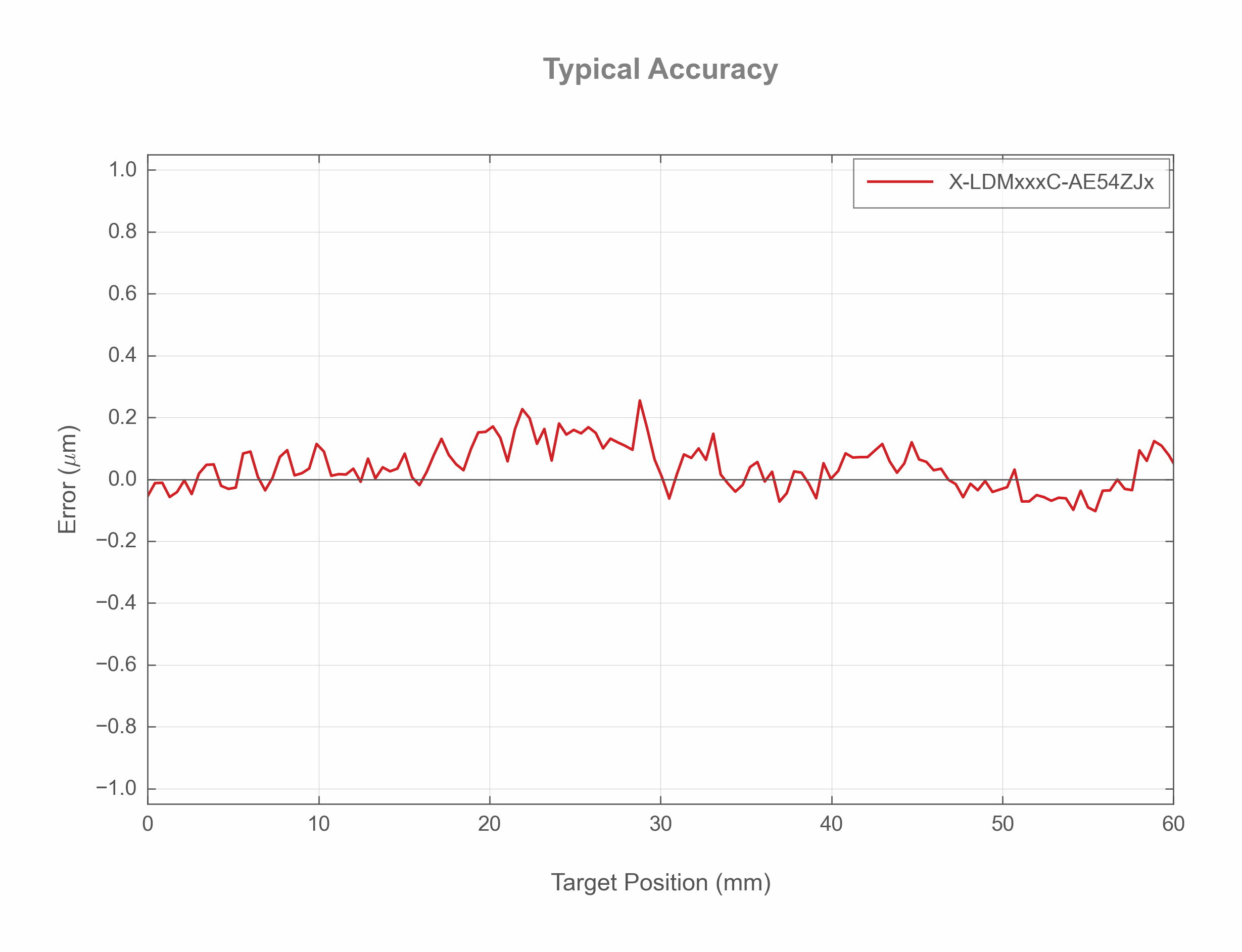

Typical Accuracy

Photo of the X-LDMxxxC-AE54ZJx - Accuracy - 27592

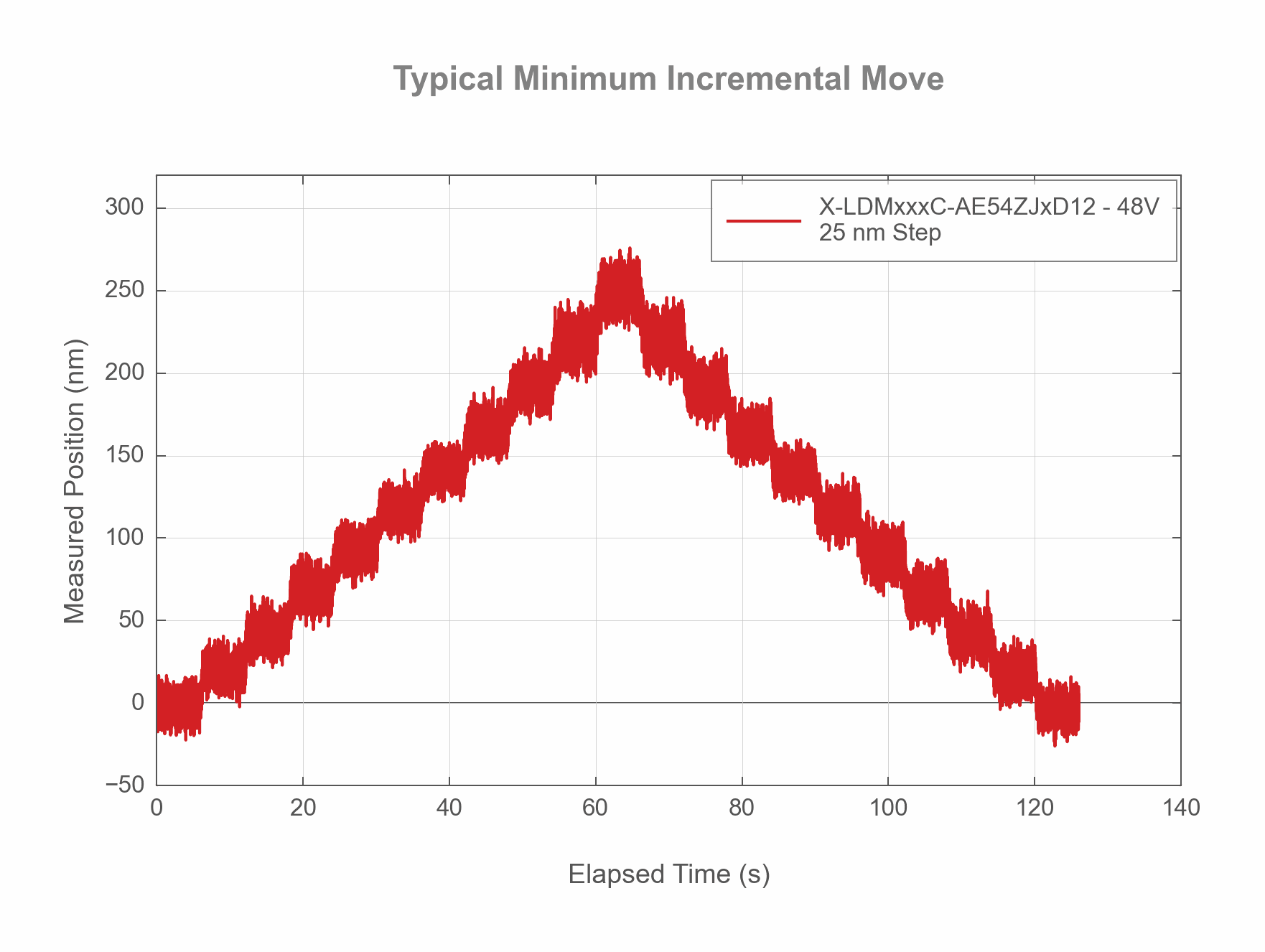

Minimum Incremental Move

Photo of the X-LDMxxxC-AE54ZJxD12 - Typical Minimum Incremental Move - 13211
