VSR Series
Vertical lift stages
Series Specifications
Download Datasheet| Built-in Controller |  |
| Recommended Controller | MCC (48 V) Recommended |
| AutoDetect |  |
| Travel Range | 20 – 40 mm |
| Axes of Motion | 1 |
| Weight | 0.55 – 0.765 kg |
| Accuracy (unidirectional) | 35 – 50 µm |
| Loaded Accuracy (10 N) | 20 – 35 µm |
| Repeatability | < 1 µm (< 0.000039") |
| Loaded Backlash (10 N) | < 10 µm (< 0.000394") |
| Backlash | < 35 µm (< 0.001378") |
| Pitch Error | 0.08° (1.396 mrad) |
| Roll Error | 0.08° (1.396 mrad) |
| Yaw Error | 0.08° (1.396 mrad) |
| Microstep Size (Default Resolution) | 0.09525 µm |
| Default Resolution | 1/64 of a step |
| Peak Thrust | 200 N (44.9 lb) |
| Maximum Continuous Thrust | 100 N (22.4 lb) |
| Maximum Centered Load | 100 N (22.4 lb) |
| Maximum Moment (Pitch) | 3 N⋅m (2.2 lb⋅ft) |
| Maximum Moment (Roll) | 3 N⋅m (2.214 lb⋅ft) |
| Maximum Moment (Yaw) | 3 N⋅m (2.214 lb⋅ft) |
| Maximum Speed | 55 mm/s (2.165"/s) |
| Minimum Speed | 0.000058 mm/s (0.000002"/s) |
| Speed Resolution | 0.000058 mm/s (0.000002"/s) |
| Limit or Home Sensing | Magnetic home sensor |
| Linear Motion Per Motor Rev | 1.2192 mm (0.048") |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 1500 mA/phase |
| Motor Winding Inductance | 1.9 mH/phase |
| Motor Connection | D-sub 15 |
| Motor Rotor Inertia | 2.5e-6 kg⋅m2 |
| Guide Type | Varies |
| Mechanical Drive System | Precision Lead Screw |
| Mounting Interface | M6 and M3 threaded holes |
| Moving Mass | 0.135 – 0.305 kg |
Filter By Feature
Choose one or more options below to filter the parts table.
VSRTravel: 20, not selectedLead Screw Options: A-Connector: T3A
Showing 2 of 2 parts.Lead Screw Options
Connector
Part Specifications Comparison
| Part Number | Travel Range | Weight | Accuracy (unidirectional) | Loaded Accuracy (10 N) | Guide Type | Moving Mass |
|---|---|---|---|---|---|---|
| VSR20A-T3A | 20 mm (0.787") | 0.55 kg (1.213 lb) | 50 µm (0.001968") | 35 µm (0.001378") | Ball Bearing | 0.135 kg (0.297 lbs) |
| VSR40A-T3A | 40 mm (1.575") | 0.765 kg (1.687 lb) | 35 µm (0.001378") | 20 µm (0.000787") | Crossed-Roller Bearing | 0.305 kg (0.671 lbs) |
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

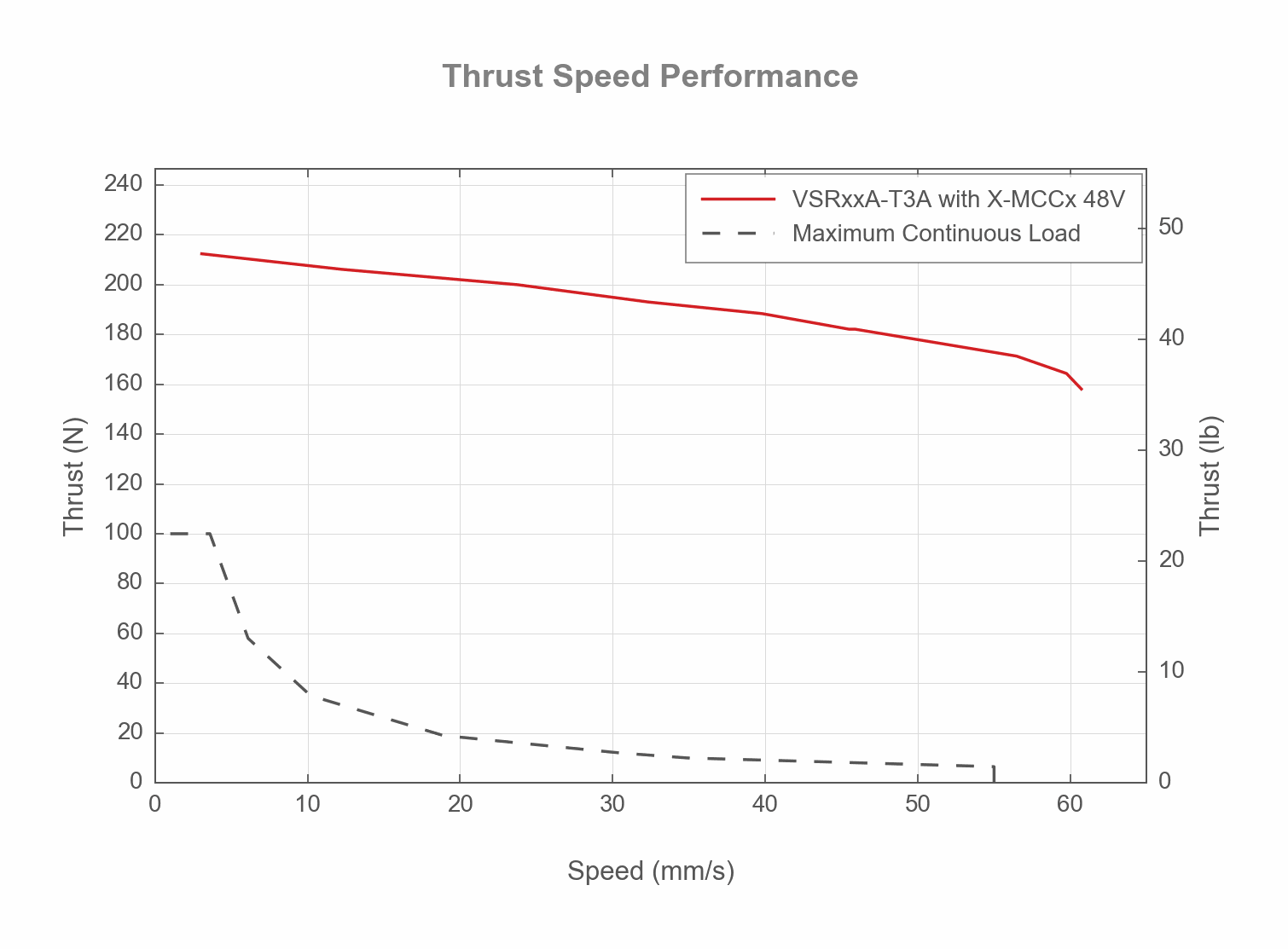

Thrust Speed Performance

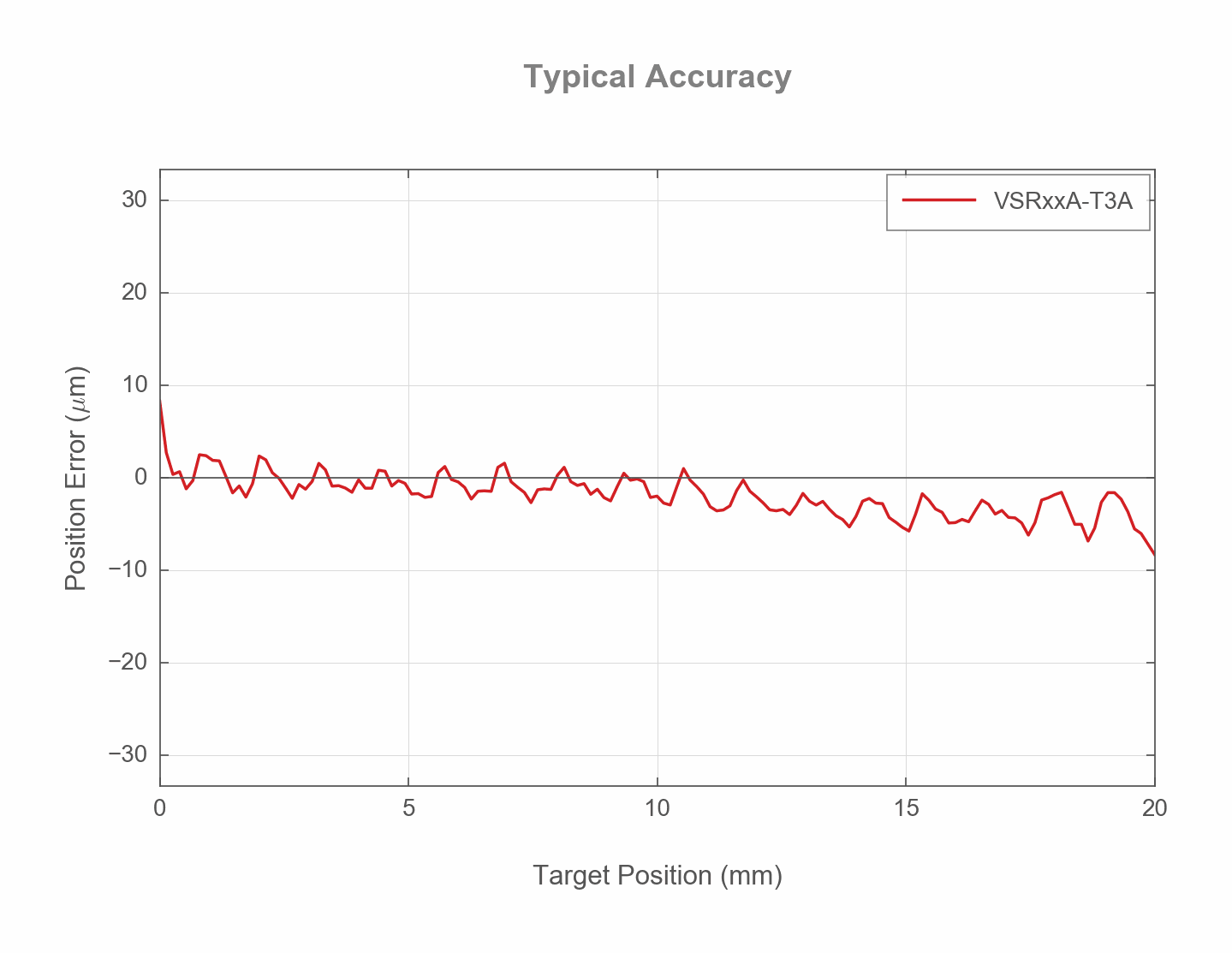

Typical Accuracy
