X-RSW-SV2 Series
High vacuum motorized rotary stages with built-in controllers
Image is representative of the X-RSW-SV2 Series and may not match the selected variant.
X-RSW60A-SV2
360 Degree Rotation | 60 mm Diameter | Fine Resolution | Low Speed
Starting Price: $5,512 *
Lead Time: 7-10 Days
X-RSW60A-SV2 Specifications
Download Datasheet| Built-in Controller |  |
| Range | +/- 360° |
| Manual Control |  |
| Weight | 0.72 kg (1.587 lb) |
| Accuracy (unidirectional) | 0.14° (2.443 mrad) |
| Repeatability | < 0.02° (< 0.349 mrad) |
| Backlash | < 0.04° (< 0.698 mrad) |
| Microstep Size (Default Resolution) | 0.000234375° (4.091 µrad) |
| Default Resolution | 1/64 of a step |
| Maximum Torque | 1 N⋅m (0.738 lb⋅ft) |
| Maximum Centered Load | 200 N (44.9 lb) |
| Maximum Moment (Tilt) | 4.1 N⋅m (3.026 lb⋅ft) |
| Maximum Speed | 100°/s (17 rpm) |
| Minimum Speed | 0.000143°/s (2.496 µrad/s) |
| Speed Resolution | 0.000143°/s (2.496 µrad/s) |
| Encoder Type | |
| Limit or Home Sensing | Magnetic home sensor |
| Angular Motion Per Motor Rev | 3° |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 1300 mA/phase |
| Motor Winding Inductance | 1 mH/phase |
| Communication Interface | RS-232 |
| Communication Protocol | Zaber ASCII (Default), Zaber Binary |
| Data Cable Connection | Teflon flying leads with M8 4 pin M/F |
| Power Supply | 24-48 VDC |
| Power Plug | None, use X-PIB |
| Maximum Current Draw | 950 mA |
| Stage Top Dimension | 60 mm (2.362") |
| Mechanical Drive System | Precision Worm Gear |
| Operating Temperature Range | 0-50 °C |
| CE Compliant | |
| Vacuum Compatible | High vacuum (10-6 Torr) |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

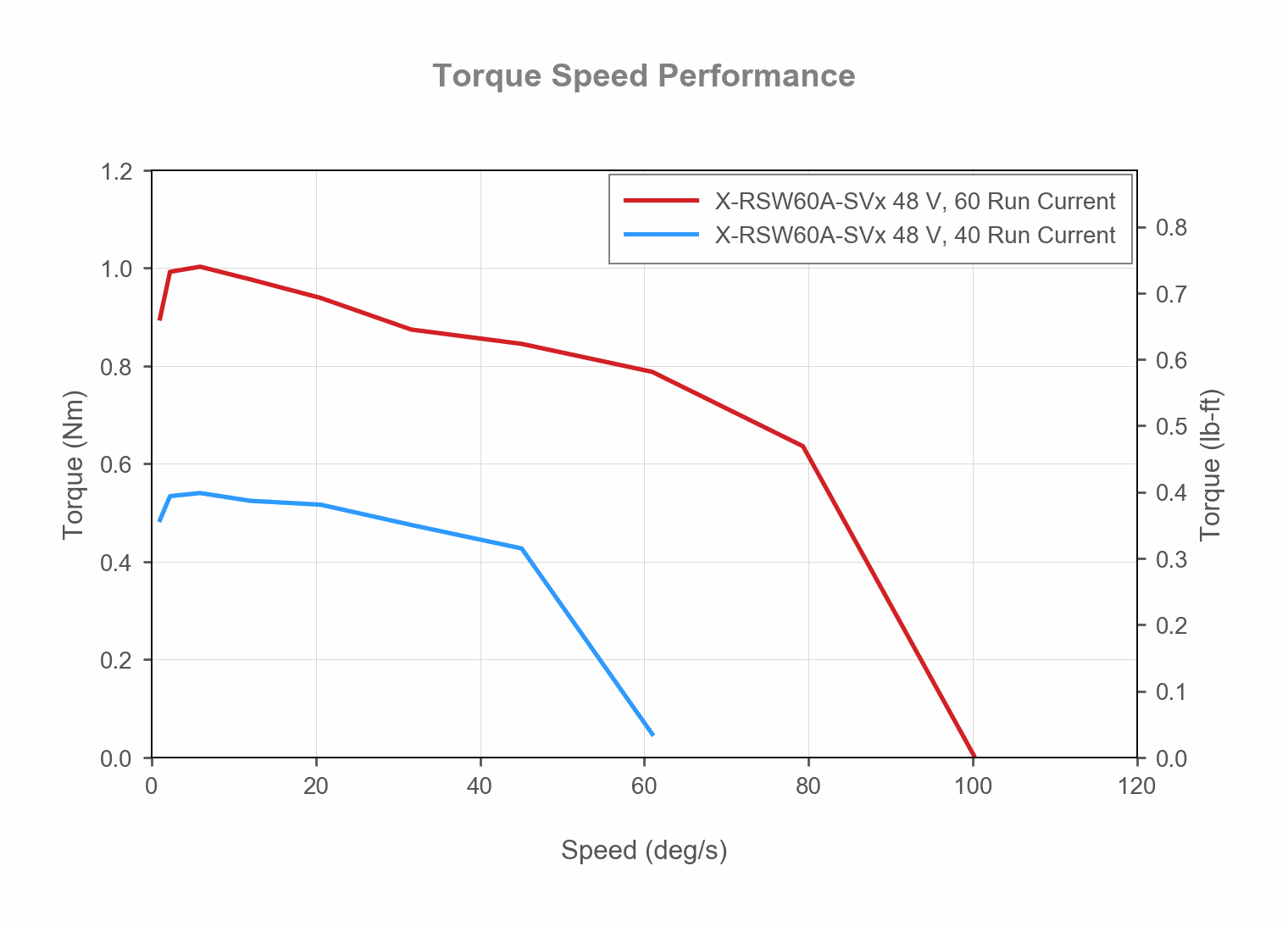

Torque Speed Performance

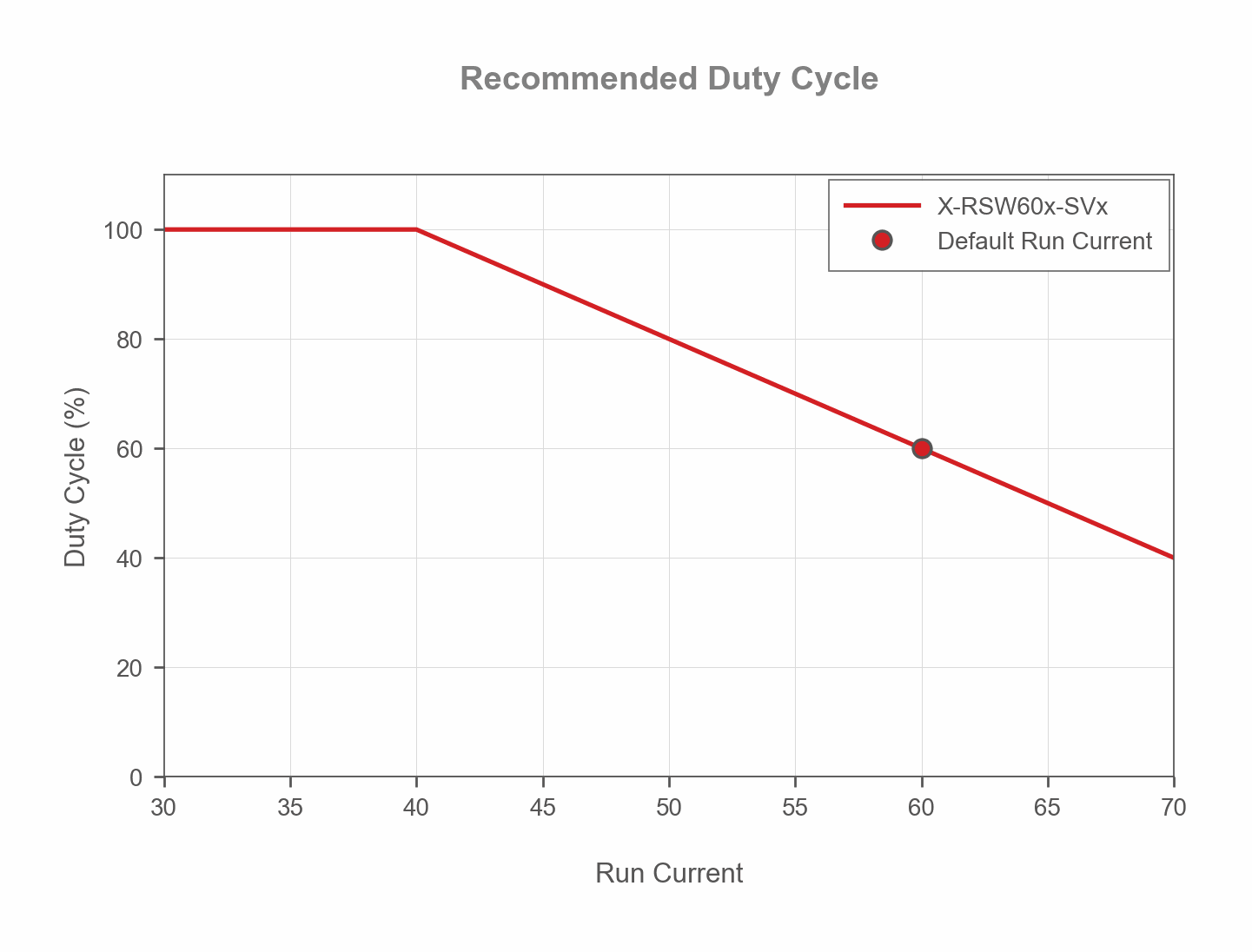

Duty Cycle
