RSW-V1 Series

Name: RSW60A-V1T4 360 Degree Rotation | 60 mm Diameter | Fine Resolution | Low Speed
Brand: Zaber
SKU: RSW60A-V1T4
Availability: InStock

Low vacuum motorized rotary stages

Image is representative of the RSW-V1 Series and may not match the selected variant.

RSW60A-V1T4

360 Degree Rotation | 60 mm Diameter | Fine Resolution | Low Speed

Starting Price: $4,723 *

Standard Lead Time: 4-7 Days

RSW60A-V1T4 Specifications

Download Datasheet

Microstep Size (Default Resolution)	0.000234375° (4.091 µrad)
Built-in Controller
Recommended Controller	MCC (48 V) Recommended
AutoDetect
Range	+/- 360°
Accuracy (unidirectional)	0.14° (2.443 mrad)
Repeatability	< 0.02° (< 0.349 mrad)
Backlash	< 0.04° (< 0.698 mrad)
Maximum Speed	100°/s (17 rpm)
Minimum Speed	0.000143°/s (2.496 µrad/s)
Speed Resolution	0.000143°/s (2.496 µrad/s)
Encoder Type
Maximum Torque	1 N⋅m (0.738 lb⋅ft)
Maximum Centered Load	200 N (44.9 lb)
Maximum Moment (Tilt)	410 N⋅cm (580.6 oz⋅in)
Stage Top Dimension	60 mm (2.362")
Angular Motion Per Motor Rev	3°
Motor Steps Per Rev	200
Motor Type	Stepper (2 phase)
Motor Rated Current	1300 mA/phase
Motor Winding Inductance	1 mH/phase
Motor Connection	Teflon flying leads with D-sub15 connector
Default Resolution	1/64 of a step
Mechanical Drive System	Precision Worm Gear
Limit or Home Sensing	Magnetic home sensor
Manual Control
Operating Temperature Range	0-50 °C
CE Compliant
Vacuum Compatible	Low vacuum (10^-3 Torr)
Weight	0.62 kg (1.367 lb)

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.

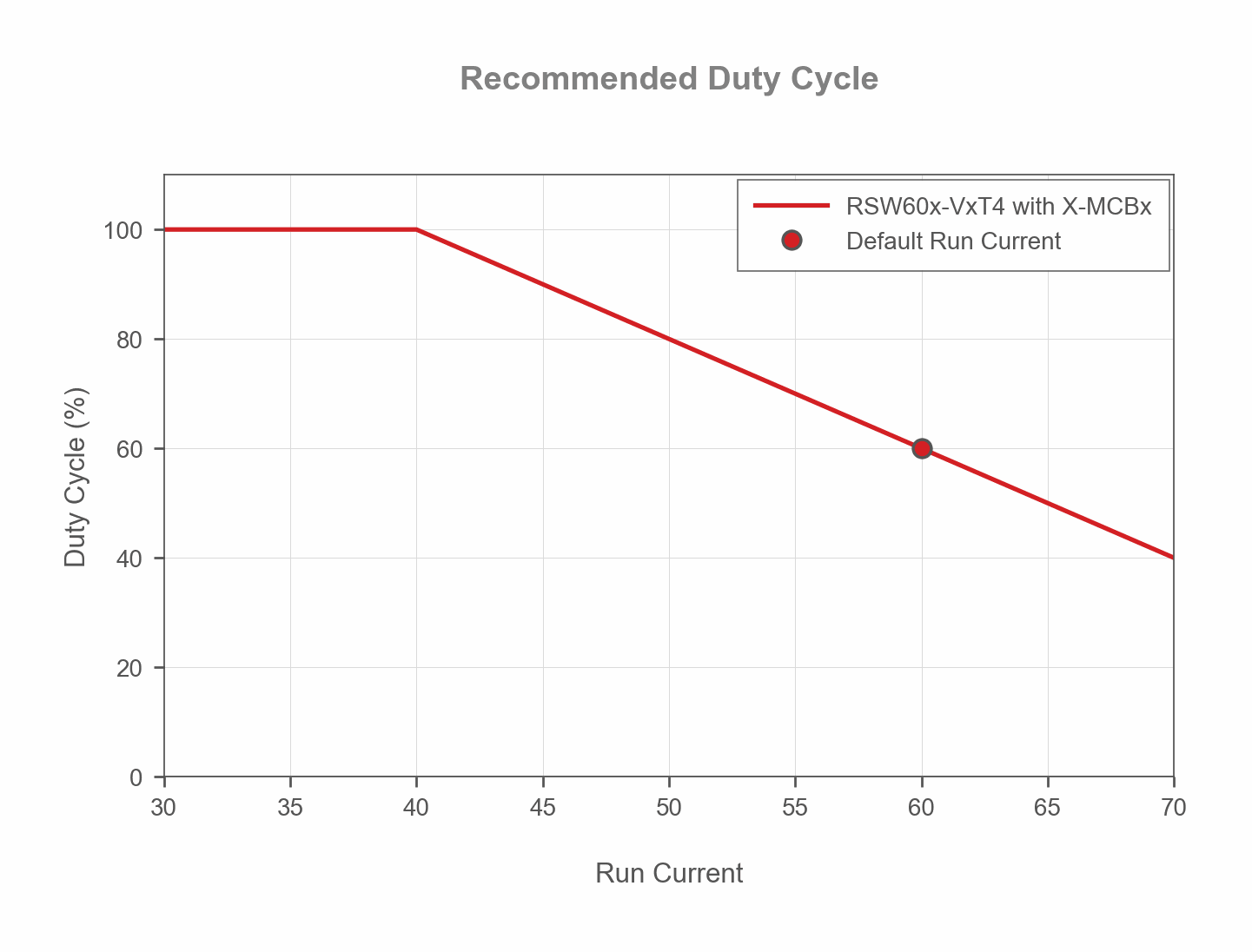

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

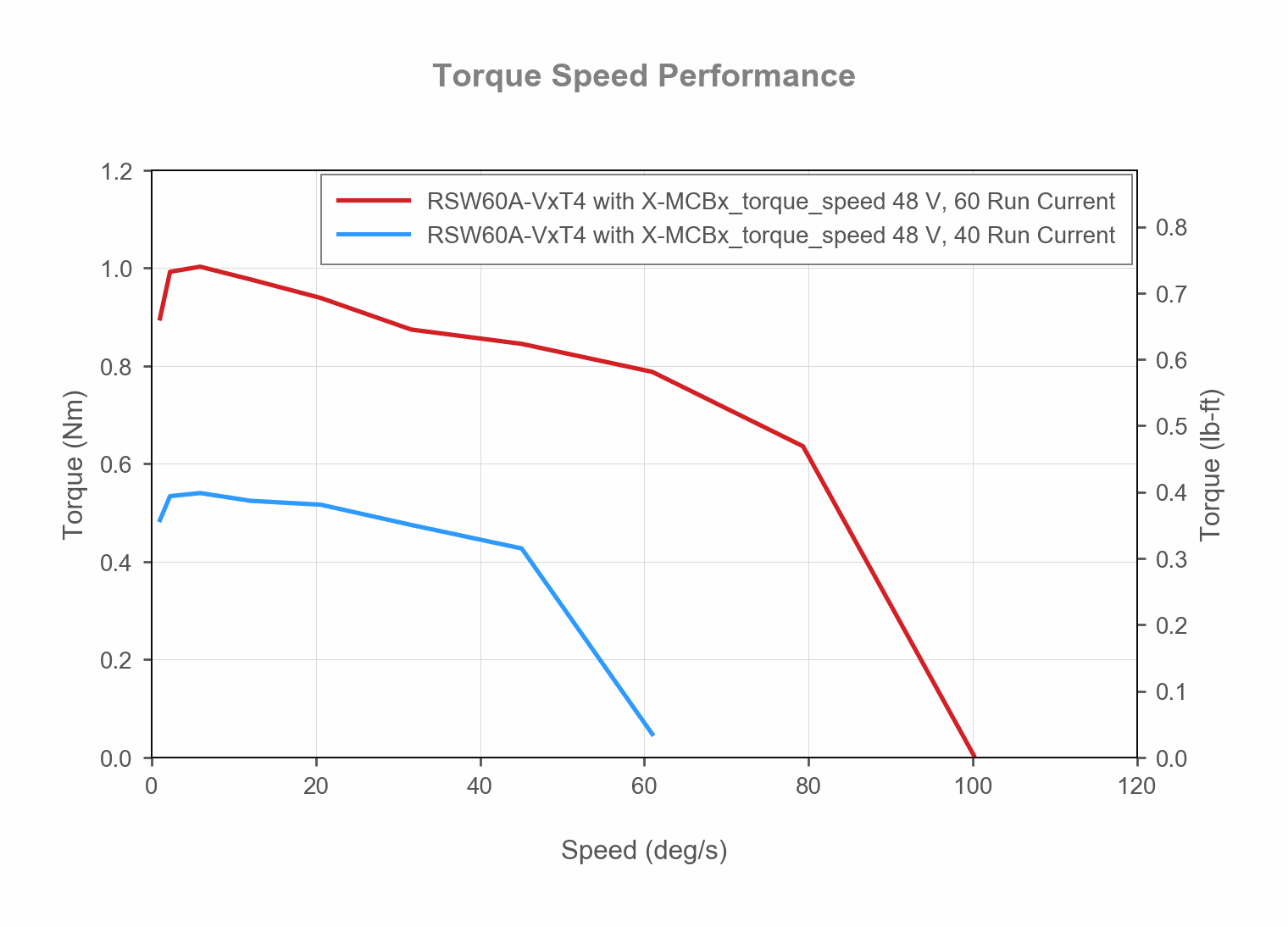

Torque Speed Performance

RSA-VxT4-with-X-MCBx-torque-speed-torque-speed-web
